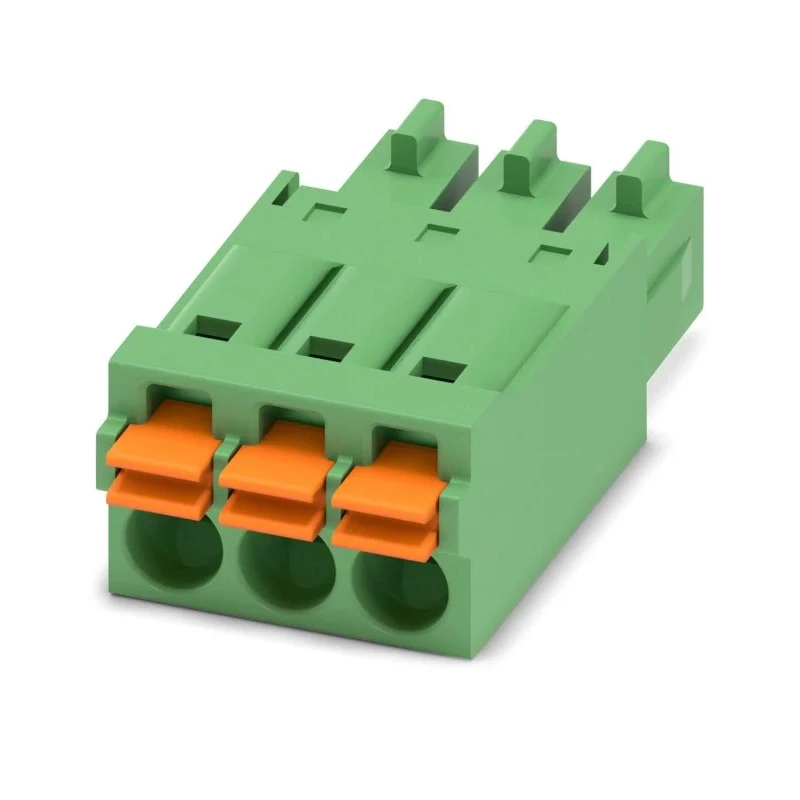

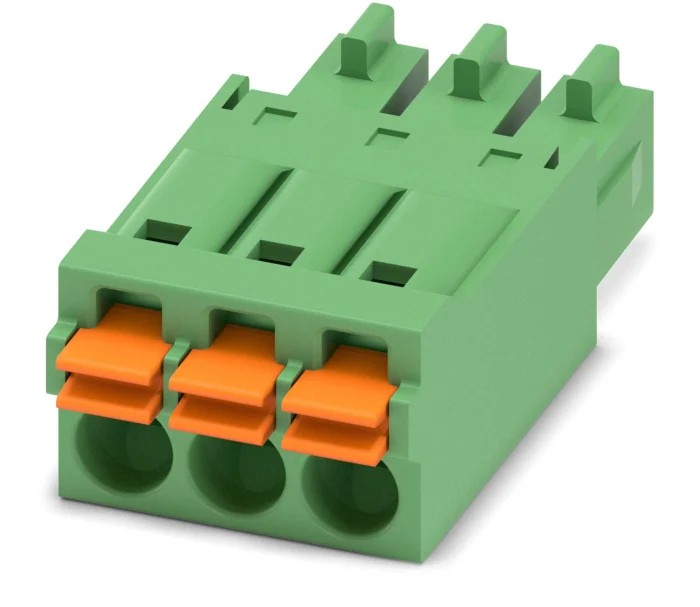

Phoenix Contact FMC 1.5/3-ST-3.5 Series Pluggable Terminal Block 3-Contact 3.5 mm Pitch 160V 8A 1 Row 1952270

Phoenix Contact 1952270 FMC 1.5/3-ST-3.5 series Pluggable Terminal Block is a compact, high-quality connector designed for industrial and electronic applications requiring secure and efficient electrical connections at moderate voltage and current ratings. It supports three contacts in a single row layout with a 3.5 mm pitch that enables high contact density suitable for various PCB applications.

The terminal block utilizes a push-in spring connection method that allows effortless installation without the need for tools, ensuring stable and long-lasting contact due to the defined contact force. Its polyamide housing provides robust mechanical and electrical insulation, with a green color for visual identification.

This model operates at a nominal voltage of 160 V and a current rating of 8 A, suitable for reliable power transmission in control and automation systems. It accommodates a wire cross-section range between 0.2 mm² and 1.5 mm² (24 AWG to 16 AWG), delivering flexibility for different wiring needs. The connector has a depth of 7.8 mm and a length of 11.2 mm, allowing installation in devices with restricted space.

The straight orientation and touch connection port allow easy testing with a 1 mm pin, facilitating maintenance and verification during installation or service. This series terminal block is part of the MINI COMBICON range, known for high contact density and durability.

Typical applications include industrial automation, manufacturing equipment, electronic circuitry, and other environments where robust, compact PCB terminal blocks are essential. The product is manufactured in Germany, ensuring adherence to high standards of engineering and quality control.

Equipped with push-in spring cage connection for tool-free installation. Polyamide housing material offers durable insulation and protection. Wire size compatibility from 0.2 mm² to 1.5 mm² and wire gauge 24 AWG to 16 AWG.

Compact dimensions with a 3.5 mm pitch and 7.8 mm height optimize PCB space. Rated for 160 V nominal voltage and 8 A current capacity. Green color coding and straight orientation assist in quick identification and installation.

Includes a testing port for voltage verification using a 1 mm pin. Suitable for industrial, laboratory, manufacturing, and electronic PCB applications.

For complete system integration, compatible accessories include screwdrivers (stock no. 390-9663), ferrules (stock nos. 804-6912 and 804-6916), and ferrule crimping pliers (stock no. 803-4405).
