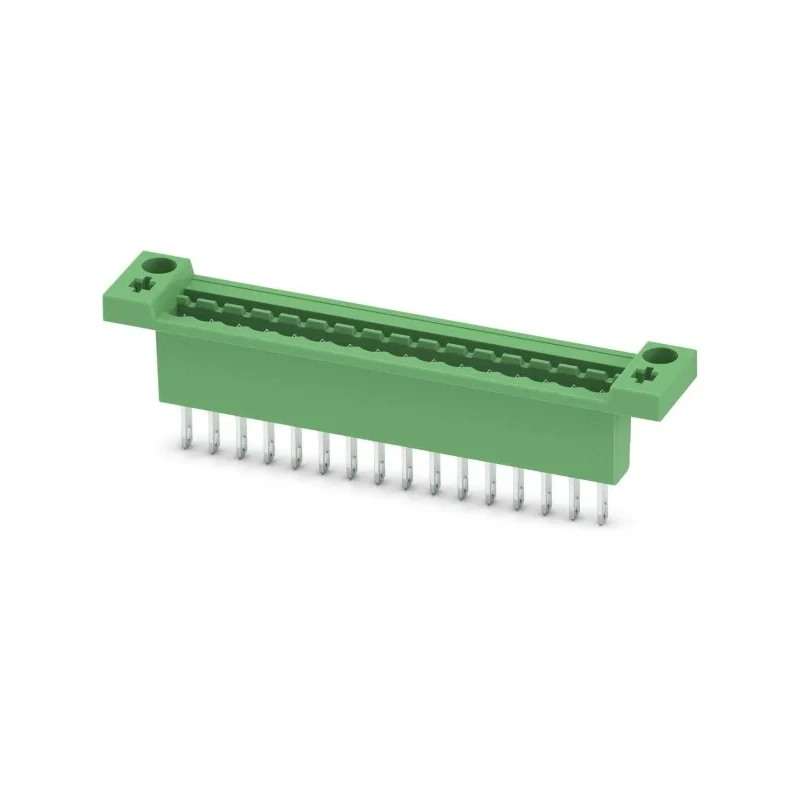

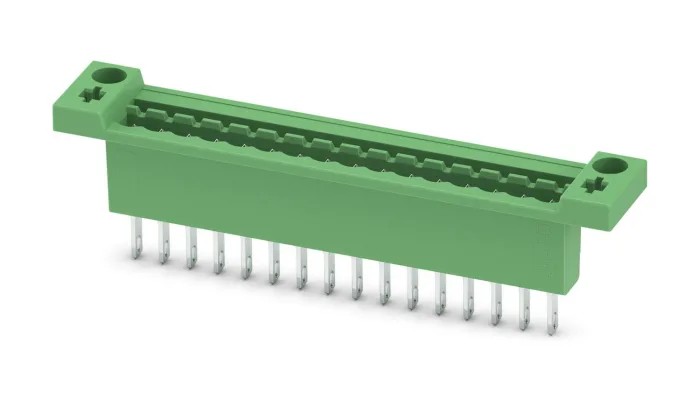

Phoenix Contact Pluggable Terminal Block 16-Contact 5 mm Pitch 1 Row 12A 320V DFK-MSTB 2.5/16-G 0707235
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 17.5mm |
| Model | 0707235 |
| Depth | 29.5mm |
| Width | 100mm |
| Housing Material | Liquid Crystal Polymer |
| Series | DFK-MSTB 2.5/16-G |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 16 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Solder/Slip-On |
| Termination Method | Solder Lug |
Key Features
- Constructed with liquid crystal polymer housing for durability and reliability.
- Supports wire sizes from 0.2 mm² to 2.5 mm² (AWG 24 to AWG 12).
- Male connector gender with solder/slip-on wire connection method.
- Compliant with RoHS standard and made in Germany.
- Available in different pitch sizes and a variation of contacts.Various different contacts.5 or 5.08 mm pitch availableWall mountableTermination Method: Solder LugRead moreIdeate.
- Home/Electronic Components, Power & Connectors/Connectors/Terminal Blocks/Pluggable Terminal Blocks
- CollaborateJOIN FOR FREENo hidden fees!Download and use our DesignSpark software for your PCB and 3D Mechanical designsView and contribute website content and forumsDownload 3D Models, Schematics and Footprints from more than a million prod
- View all in Pluggable Terminal BlocksSearch for similar products
Product Description
Phoenix Contact 0707235 is a professional-grade pluggable terminal block designed for connecting electrical wires safely and efficiently in industrial, electronic, and power connector applications.
This terminal block features 16 contacts arranged in a single row with a 5 mm pitch, supporting wire sizes ranging from 0.2 mm² (24 AWG) up to 2.5 mm² (12 AWG). Its male connector gender and solder lug termination method ensure secure, high-quality connections.
The housing is made of liquid crystal polymer, providing excellent mechanical strength, temperature resistance, and long-term durability under various operational conditions. Rated for 12 A current at 320 V, this terminal block suits various demanding industrial and electronic system wiring needs.
Constructed with liquid crystal polymer housing for enhanced durability. Supports wire sizes from 0.2 mm² to 2.5 mm², accommodating multiple wiring requirements. Male connector gender supports compatibility with a broad range of connectors.
Solder/slip-on wire connection method ensures robust and reliable terminations. Compact size and single row facilitate efficient panel or board mounting. RoHS compliant, ensuring environmental and safety standards are met.
Manufactured in Germany to strict quality standards, this terminal block is ideal for industrial automation, electronic component assembly, power distribution, and control panel wiring.
Its straightforward installation and flexible usage make it suitable for use in electronics manufacturing, industrial machinery, HVAC controls, and other commercial electrical installations.
Explore more Pluggable Terminal Blocks and related components in our Electronics Components category on EnvMart for complete electrical connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 12 A and a voltage of 320 V, making it suitable for various industrial and electronic applications.
It supports wire sizes ranging from 0.2 mm² (24 AWG) to 2.5 mm² (12 AWG), allowing for flexible wiring options.
The contacts of this terminal block are arranged with a pitch of 5 mm, which facilitates efficient connections in compact spaces.
It utilizes a solder/slip-on wire connection method, ensuring a secure and reliable termination for electrical connections.
The housing is constructed from liquid crystal polymer, providing enhanced mechanical strength and temperature resistance.
This terminal block features 16 contacts, arranged in a single row, allowing for multiple connections in a compact design.
The dimensions are 100 mm in width, 29.5 mm in depth, and 17.5 mm in length, making it suitable for various mounting applications.
Yes, it is compliant with RoHS standards, ensuring it meets environmental and safety regulations.
It is manufactured in Germany, adhering to strict quality standards for industrial components.
The connector orientation is straight, which is typical for many terminal block applications.
This model uses a solder lug termination method, which provides a reliable connection for electrical wiring.
It belongs to the DFK-MSTB 2.5/16-G series, which includes various configurations and contact options.
