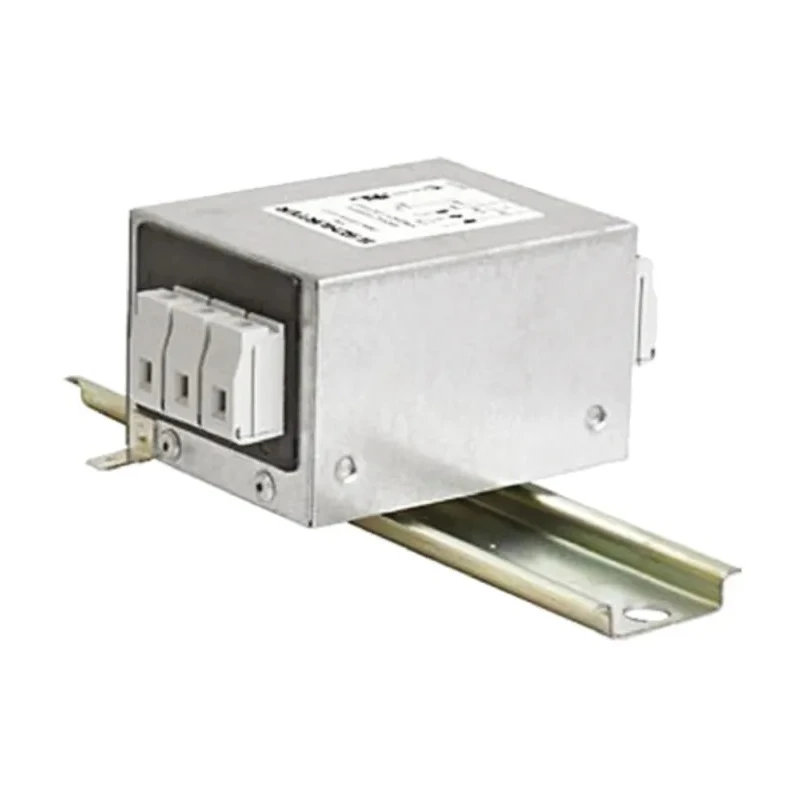

Schurter RFI Filter 10A 480V AC 50Hz 60Hz 3 Phase DIN Rail Screw Termination FMAC-3RYB-1010

Name: Schurter RFI Filter 10A 480V AC 50Hz 60Hz 3 Phase DIN Rail Screw Termination FMAC-3RYB-1010
Brand: Schurter
SKU: 105858



Category Power Line Filters Brand Schurter Condition New

Specifications

Country of Origin	India
Brand	Schurter
Height	48mm
Length	102mm
Model	FMAC-3RYB-1010
Depth	61mm
Mount Type	DIN Rail
Operating Frequency	50, 60Hz
Series	FMAC RAIL
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	8.5mΩ
Capacitance	100nF
Minimum Operating Temperature	-25°C
Maximum Current	10A
Number of Phases	3
Leakage Current	20μA
Maximum Voltage	480V ac
Inductance	1mH
Termination Style	Screw
Power Loss	2.6W

Key Features

Supports maximum current of 10A for reliable operation.
Rated for maximum voltage of 480V AC at 50Hz and 60Hz frequencies.
Features DIN rail mounting type for easy installation in electric panels.
Screw termination style ensures secure and stable electrical connections.
Designed with 3 phases and 1 stage for effective RFI filtering.
Capacitance is 100nF with inductance of 1mH for filter functionality.
Leakage current limited to 20μA ensuring minimal power loss.
Operates in temperatures from -25°C up to 100°C for durability.

Product Description

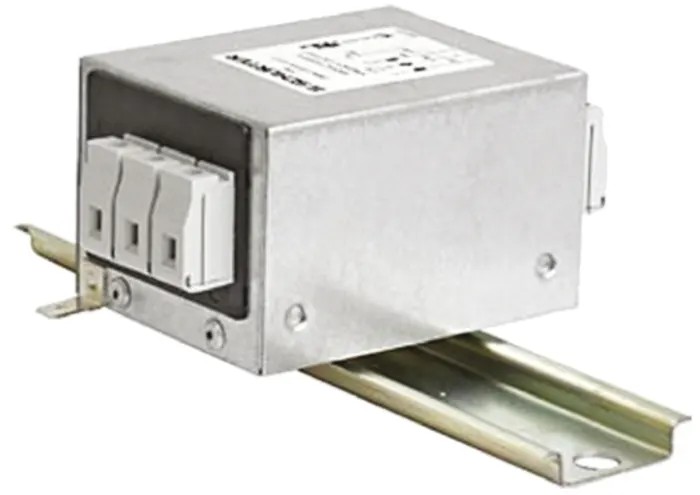

Schurter FMAC-3RYB-1010 is a high-quality RFI filter designed for 3 phase electrical systems with a maximum current rating of 10A and maximum voltage of 480V AC at both 50Hz and 60Hz operating frequencies. It features a robust metal case with DIN rail mounting type and screw termination for secure installation and reliable connectivity.

This filter series is specially engineered to reduce electromagnetic interference (EMI) in electric switch and control panels, making it suitable for industrial, manufacturing, and commercial electrical equipment applications. The FMAC-rail series complies with IEC/EN60950 standards, ensuring safety and performance in demanding environments.

Key electrical parameters include a capacitance of 100nF, inductance of 1mH, and leakage current limited to 20μA, ensuring effective filtering with minimal power loss. The product can operate in harsh temperature conditions ranging from -25°C to 100°C, with low resistance of 8.5mΩ and power dissipation of only 2.6W. Its compact form factor with dimensions of 102mm length, 48mm height, and 61mm depth allows seamless integration into existing electrical setups.

This RFI filter is ideal for enhancing the electromagnetic compatibility of industrial electrical panels and equipment, ensuring compliance with relevant international standards. Its screw termination and DIN rail mount simplify installation and maintenance in electrical cabinets and systems.

Supports maximum current of 10A for reliable operation. Rated for maximum voltage of 480V AC at 50Hz and 60Hz frequencies. Features DIN rail mounting type for easy installation in electric panels. Screw termination style ensures secure and stable electrical connections.

Designed with 3 phases and 1 stage for effective RFI filtering. Capacitance is 100nF with inductance of 1mH for filter functionality. Leakage current limited to 20μA ensuring minimal power loss. Operates in temperatures from -25°C up to 100°C for durability.

Compact dimensions: length 102mm, height 48mm, depth 61mm. Low resistance of 8.5mΩ and power loss of 2.6W for energy efficiency. Browse the Electronics Components category at EnvMart for more Schurter Power Line Filters and EMI protection solutions.
