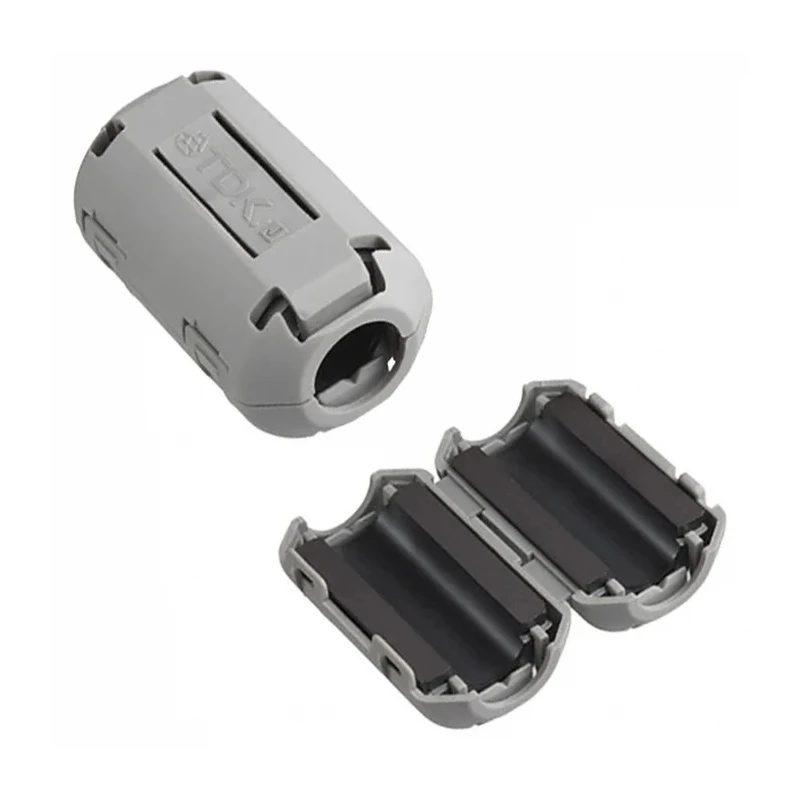

TDK Openable Ferrite Sleeve Diameter 13 mm Aperture 19.5x17.4x35 mm Impedance 30-100 Ω For Suppression ZCAT2436-1330A
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | 30 Material |
| Model | ZCAT2436-1330A |
| Series | ZCAT |
| Aperture diameter | 13mm |
| Sub Type | Ferrite Core |
| External Width | 35mm |
| External Depth | 19.5mm |
| External Height | 17.4mm |
| Standards/Approvals | RoHS, REACH |
| Impedance at 100 MHz | 100 |
| Impedance at 25 MHz | 30 |
| Number of Apertures | 1 |
| Impedance at 300 MHz | 80Ω |
| TDK Openable, Diameter 13 mm Ferrite Sleeve, Apertures | 1 19.5 mm 17.4 mm 35 mm, For Suppression Components |
Key Features
- Constructed with 30 Material ferrite core for effective electromagnetic interference suppression.
- Features a single aperture with dimensions 19.5 mm depth, 17.4 mm height and 35 mm width.
- Snap-fix design allows easy installation on cables with self-holding mechanism.
- RoHS and REACH compliant ensuring environmental compliance.
- Ideal for use in personal computers, digital telephones, audio devices, and industrial controllers.
Product Description
TDK ZCAT2436-1330A openable ferrite sleeve with a diameter of 13 mm is designed specifically for suppression components to reduce electromagnetic interference. This ferrite sleeve is constructed from a 30 Material ferrite core enclosed in a unique plastic case, enabling a simple snap-fix installation process that securely holds the sleeve in place on cables, preventing slippage.
The sleeve has a single aperture with an external depth of 19.5 mm, height of 17.4 mm, and width of 35 mm, optimized for a variety of cable diameters. It provides impedance of 30 Ω at 25 MHz, rising to 100 Ω at 100 MHz, and maintaining 80 Ω at higher frequencies like 300 MHz and 500 MHz. This characteristic makes it highly effective at attenuating high-frequency common-mode noise in cables without adversely affecting the signal quality.
Certified to comply with RoHS and REACH standards, this ferrite sleeve is environmentally compliant and reliable for industrial and commercial applications. Its gapped design is ‘No’, which means it maintains a high level of EMC absorption through the ferrite core.
Applications include personal computers, word processors, monitors, hard disk drives, digital telephones, audio devices, electronic musical instruments, video game consoles, copiers, and facsimiles. The snap-lock housing protects the ferrite core from damage and allows installation on pre-installed cables or cables fitted with connectors. Fixing options include glue or cable ties.
Constructed from 30 Material ferrite core for EMI suppression. Snap-fix plastic case with a self-holding mechanism for easy installation. Single openable aperture with dimensions 19.5 mm x 17.4 mm x 35 mm. Impedance of 30 Ω at 25 MHz and 100 Ω at 100 MHz.
RoHS and REACH compliant for environmental safety. Widely used in various consumer electronics and industrial applications. Durable design prevents accidental opening and protects the ferrite core.
This TDK ferrite sleeve is a reliable choice for engineers and technicians aiming to minimize electromagnetic interference in electronic assemblies and improve signal integrity in cable-based systems. Explore more products in the Ferrite Sleeve category at EnvMart for comprehensive EMI filtering solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ferrite sleeve has an impedance of 30 Ω at 25 MHz, rising to 100 Ω at 100 MHz, and maintaining 80 Ω at higher frequencies such as 300 MHz and 500 MHz.
This model has external dimensions of 19.5 mm in depth, 17.4 mm in height, and 35 mm in width.
It is constructed from a 30 Material ferrite core, which is designed for effective electromagnetic interference suppression.
The sleeve features a snap-fix design with a self-holding mechanism that allows for easy installation on cables, preventing slippage.
Yes, it is certified to comply with RoHS and REACH standards, ensuring environmental safety.
This ferrite sleeve is ideal for use in personal computers, digital telephones, audio devices, and industrial controllers.
The aperture diameter of this model is 13 mm.
This ferrite sleeve has a single aperture.
The ferrite sleeve is manufactured in India.
It is designed to reduce electromagnetic interference in cable-based systems, helping to improve signal integrity.
The model number of this ferrite sleeve is ZCAT2436-1330A.
The ferrite sleeve features a gapped design of 'No', which helps maintain a high level of EMC absorption through the ferrite core.
