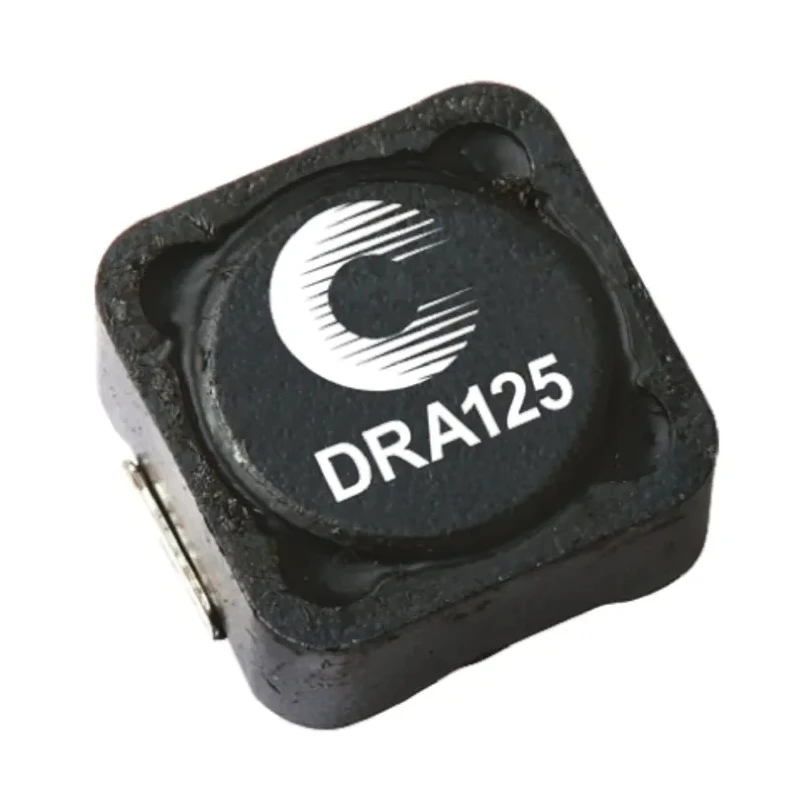

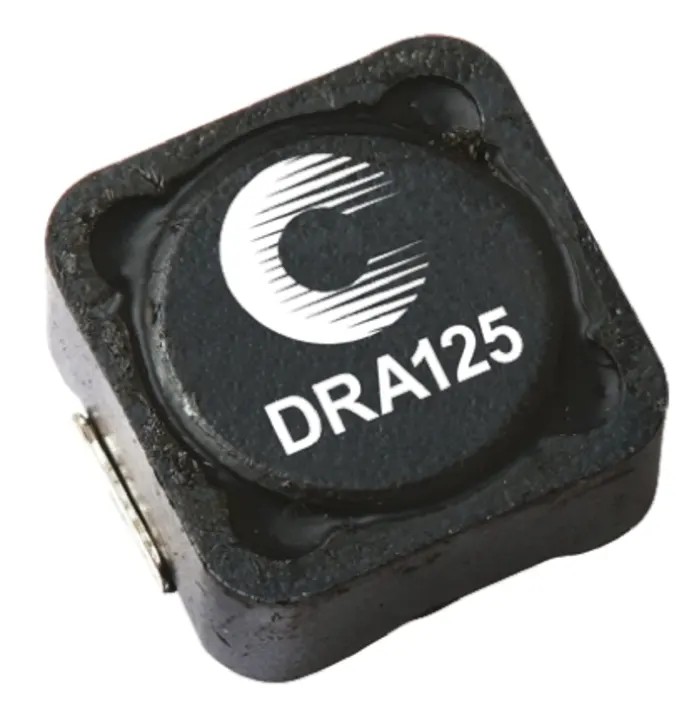

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 22μH ±20% 4.74 A Idc 0125 Package DRA125-220-R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Height | 6mm |
| Length | 12.5mm |
| Model | DRA125-220-R |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | DRA |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 0125 |
| Maximum DC Current | 4.74A |
| Pin Count | 2 |
| Maximum DC Resistance | 42mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Offers a maximum DC current rating of 4.74 A for robust performance.
- Constructed with a ferrite core for improved magnetic shielding and efficiency.
- Comes in an 0125 surface mount package with dimensions 12.5 mm length and 6 mm height.
- Designed for automotive grade applications meeting AEC-Q200 standards.
- Features a maximum operating temperature of 165°C for high reliability.
- Low maximum DC resistance of 42 mΩ reduces power loss.
- Shielded wirewound design ensures high power density and efficient EMI suppression.
- Suitable for use in DC-DC converters, noise filtering, and automotive electronics.
Product Description
The Eaton DRA125-220-R is a shielded wirewound surface mount inductor designed with a ferrite core, providing 22 μH inductance with a tolerance of ±20%. This surface mount inductor offers a maximum DC current of 4.74 A and is built to withstand harsh automotive environments with AEC-Q200 certification and high operating temperatures up to 165°C.
Featuring a compact 0125 package with dimensions of 12.5 mm in length and 6 mm in height, it is molded and constructed to ensure excellent shock and vibration resistance. The low DC resistance of 42 mΩ minimizes power loss while ensuring efficient energy storage and filtering.
This inductor is magnetically shielded to reduce electromagnetic interference, making it ideal for automotive electronic systems, telematics, and various DC-DC converter topologies including buck, boost, forward, and resonant converters. Its robust design supports noise filtering applications in demanding industrial and automotive use cases.
Compliant with RoHS standards, the DRA series inductors combine high power density with superior thermal dissipation, enhanced by thermally conductive epoxy encapsulation that supports durability under thermal stress.
Maximum DC current rating of 4.74 A for heavy-duty applications. Magnetically shielded wirewound construction for EMI reduction. Compact 0125 surface mount package suitable for modern PCB layouts. Automotive grade AEC-Q200 certified for reliability in automotive electronics.
Wide operating temperature range from -40°C to 165°C. Low DC resistance reduces power consumption and heat generation. Suitable for DC-DC converters and noise filter circuits. Ferrite core optimized for high efficiency and thermal management.
RoHS compliant ensuring environmentally safe manufacturing. Molded design enhances mechanical strength and durability.
The Eaton DRA125-220-R surface mount inductor is an excellent choice for industrial, automotive, telematics, and manufacturing electronics requiring reliable, high current filtering and energy storage solutions. Explore more Inductors, passive components, and electronic parts in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 22μH with a tolerance of ±20%.
The maximum DC current rating is 4.74 A, suitable for robust performance in various applications.
The dimensions of the 0125 package are 12.5 mm in length and 6 mm in height.
The maximum operating temperature is 165°C, allowing it to perform in high-temperature environments.
Yes, it is compliant with RoHS standards and meets AEC-Q200 automotive standards for reliability.
The core material is ferrite, which enhances magnetic shielding and efficiency.
It features a wirewound construction, which contributes to its performance characteristics.
The maximum DC resistance is 42 mΩ, which helps reduce power loss during operation.
It is suitable for use in DC-DC converters, noise filtering, and automotive electronics.
The maximum self-resonant frequency is 100 kHz, indicating its performance in high-frequency applications.
The Eaton DRA125-220-R is packaged in a reel, facilitating easy handling and assembly.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
