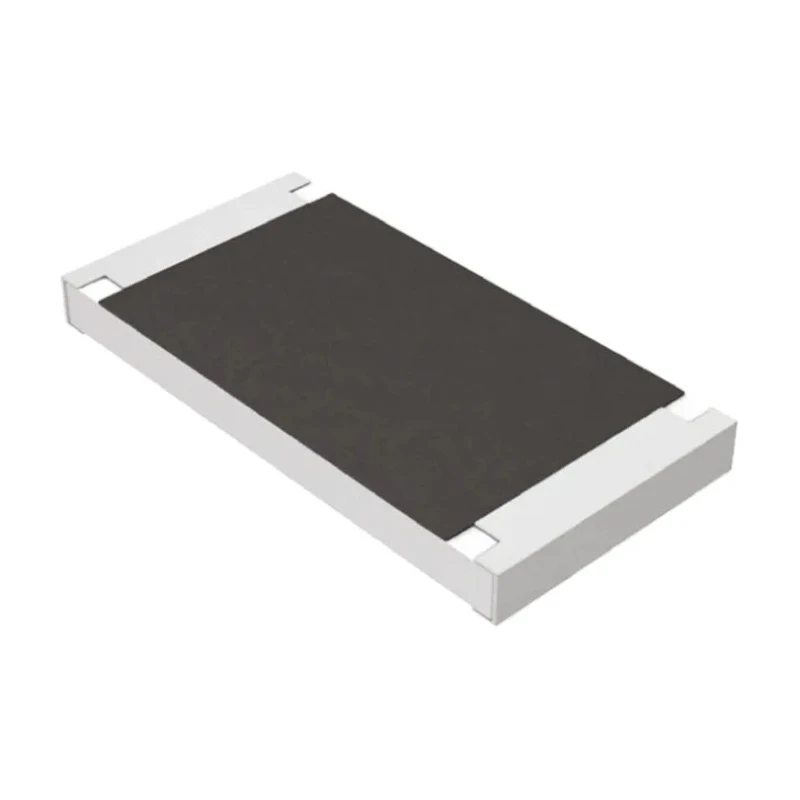

Panasonic Non-Resettable 5A 32V DC Fast Acting Micro Chip Fuse ERBRE5R00V
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 32V dc |
| Brand | Panasonic |
| Body Material | Alumina Substrate |
| Height | 0.54mm |
| Model | ERBRE5R00V |
| Depth | 1.6mm |
| Width | 0.8mm |
| Current Rating | 5A |
| Series | Micro Chip Fuse |
| Maximum Operating Temperature | -40°C |
| Resistance | 19mΩ |
| Package Type | Tape |
| Minimum Operating Temperature | 125°C |
| Package Size | 0603 |
| Breaking Capacity | 300A |
| Standards/Approvals | UL 248-14, RoHS |
| Fuse Characteristics | Fast Acting |
Key Features
- The fuse features an alumina substrate body that ensures durability.
- It has compact dimensions with a width of 0.8 mm, height of 0.54 mm, and depth of 1.6 mm.
- Fast acting fuse characteristic provides effective protection for sensitive electronic circuits.
- Operating temperature range is from -40°C to 125°C providing reliability in diverse environments.
- The fuse has a high breaking capacity of 300A for safety.
- It comes in 0603 tape packaging suitable for automated assembly processes.
- Ideal for surface mount technology applications, saving space on circuit boards.
- Suitable protection for high value silicon ICs in computing, medical devices, and power supplies.
Product Description
The Panasonic ERBRE5R00V is a high-reliability non-resettable micro chip fuse designed for low voltage DC applications requiring fast acting characteristics. This fuse operates at 5 amperes current rating and supports up to 32 volts DC voltage, making it ideal for protecting sensitive electronic circuits from overcurrent conditions.
Constructed with an alumina substrate, it offers excellent durability and stable performance at elevated temperatures ranging from -40°C up to 125°C. With compact package size 0603 and small dimensions (0.8 mm width, 0.54 mm height, 1.6 mm depth), it is optimized for surface mount technology, enabling minimized circuit board real estate usage.
The fuse has a breaking capacity of 300A, ensuring robust circuit protection, and a fast acting fuse characteristic, suitable for applications involving high in-rush currents and demanding transient electrical conditions. Its resistance of 19 milliohms contributes to efficient current flow with minimal loss.
This fuse is widely used in industrial, commercial, and laboratory electronic systems including audio/visual equipment, computer boards, portable telephones, medical apparatus, and power supplies that require reliable overcurrent protection.
The alumina substrate body material provides mechanical strength and electrical insulation. Compact dimensions make it suitable for modern high-density circuit boards. Fast acting characteristic improves protection for sensitive electronic components.
Operational temperature rating ensures suitability for various environmental conditions. Breaking capacity of 300A guarantees high safety margin. Tape packaging facilitates automated assembly and production efficiency. Compliance with UL 248-14 and RoHS standards certifies quality and environmental compliance.
Manufactured in Japan ensuring high build quality and reliability.
This Panasonic non-resettable fuse is a dependable choice for electronic designers focused on protecting circuits in complex electrical systems while maintaining component miniaturization and efficiency. Explore more components and fuses in the Electronics & Electricals category at EnvMart for your project needs.
Explore more products in our Electrical Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic ERBRE5R00V fuse has a current rating of 5 amperes.
This micro chip fuse can handle a maximum voltage of 32 volts DC.
The dimensions of this fuse are 0.8 mm in width, 0.54 mm in height, and 1.6 mm in depth.
The breaking capacity of the ERBRE5R00V fuse is 300A.
This fuse operates within a temperature range of -40°C to 125°C.
The resistance of this fuse is 19 milliohms, contributing to efficient current flow.
The fuse comes in 0603 tape packaging, which is suitable for automated assembly processes.
The fuse is constructed with an alumina substrate, providing durability and electrical insulation.
This model features a fast acting fuse characteristic, providing effective protection for sensitive electronic circuits.
The fuse complies with UL 248-14 and RoHS standards, ensuring quality and environmental compliance.
This fuse is commonly used in industrial, commercial, and laboratory electronic systems, including audio/visual equipment and medical devices.
The compact size of this fuse makes it suitable for surface mount technology, allowing for minimized circuit board real estate usage.
