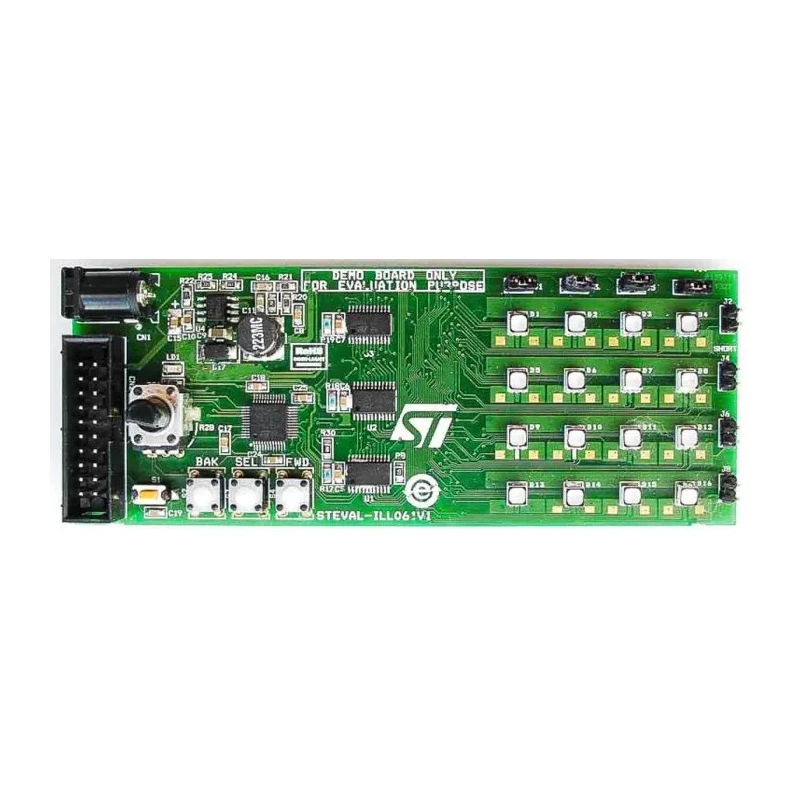

STMicroelectronics STEVAL LED Driver Evaluation Board for LED1642GW and STM32 High Brightness LED STEVAL-ILL061V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ILL061V1 |
| For Use With | High Brightness LED Driver |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | LED1642GW, STM32 |
| Kit Name | STEVAL |
| LED Technology | LED Driver |
Key Features
- Includes a high brightness 4x4 RGB LED matrix controlled via STM32 microcontroller interface.
- Incorporates LED1642GW independent PWM LED driver enabling precise local dimming and diagnostics.
- Powered by an ST L7981 DC-DC converter providing stable 6 to 28 V DC polarity-independent supply.
- Comes with complete software and hardware package including preconfigured and programmable lighting patterns.
- Supports open and short error simulation and real-time fault detection for robust operation.
- Equipped with a user-friendly graphical interface for advanced driver configuration.
- Designed to meet RoHS standards ensuring environmental compliance.
- Manufactured in Italy with high-quality engineering standards.
Product Description
STMicroelectronics STEVAL-ILL061V1 is a high brightness RGB LED array driver evaluation board featuring a 4x4 LED matrix with local dimming and diagnostic capabilities. It leverages the LED1642GW PWM LED driver and an STM32 microcontroller for precise control via SPI interface. The system is powered by an ST L7981 DC-DC converter which supplies a polarity-independent 6 to 28 V DC input, ensuring reliable power delivery for high-efficiency LED operation.
This evaluation kit includes a comprehensive hardware and software package that facilitates various preconfigured and programmable lighting patterns, allowing developers to test and optimize LED performance for their applications. The board supports the simulation of open and short circuit errors along with real-time detection capabilities that enhance reliability and fault tolerance.
The STEVAL-ILL061V1 is RoHS compliant and manufactured in Italy, assuring adherence to quality and environmental standards. Its user-friendly graphical user interface enables advanced configuration of driver parameters, making it suitable for development and prototyping in LED lighting projects requiring high brightness and fine control.
This evaluation board is ideal for applications in electronics development, LED lighting design, and testing scenarios within industrial, laboratory, and commercial environments where precise LED control and diagnostics are critical.
Includes a high brightness 4x4 RGB LED matrix controlled via an STM32 microcontroller. Utilizes LED1642GW PWM LED driver for independent LED control and diagnostics. Powered by an ST L7981 DC-DC converter with polarity-independent 6 to 28 V DC input.
Complete hardware and software package with programmable lighting patterns. Supports open and short error simulation alongside real-time detection. RoHS compliant and manufactured in Italy. User-friendly GUI for advanced driver configuration.
Explore more LED Driver evaluation boards and development tools on EnvMart for your electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STEVAL-ILL061V1 is powered by an ST L7981 DC-DC converter that provides a polarity-independent input voltage range of 6 to 28 V DC.
This model utilizes an STM32 microcontroller for controlling the 4x4 RGB LED matrix.
The evaluation board features the LED1642GW PWM LED driver, which allows for independent LED control and diagnostics.
The STEVAL-ILL061V1 supports high brightness LED technology, specifically designed for driving RGB LED arrays.
Yes, the STEVAL-ILL061V1 is RoHS compliant, ensuring it meets environmental standards.
It includes a user-friendly graphical user interface for advanced configuration of driver parameters.
The board supports open and short error simulation along with real-time fault detection to enhance reliability.
The package includes a comprehensive set of preconfigured and programmable lighting patterns for testing and optimizing LED performance.
The STEVAL-ILL061V1 is manufactured in Italy, adhering to high-quality engineering standards.
It is ideal for electronics development, LED lighting design, and testing scenarios in industrial, laboratory, and commercial environments.
The kit is classified as an Evaluation Board, specifically designed for high brightness LED drivers.
The evaluation board features a high brightness 4x4 RGB LED matrix, allowing for precise control and local dimming.
