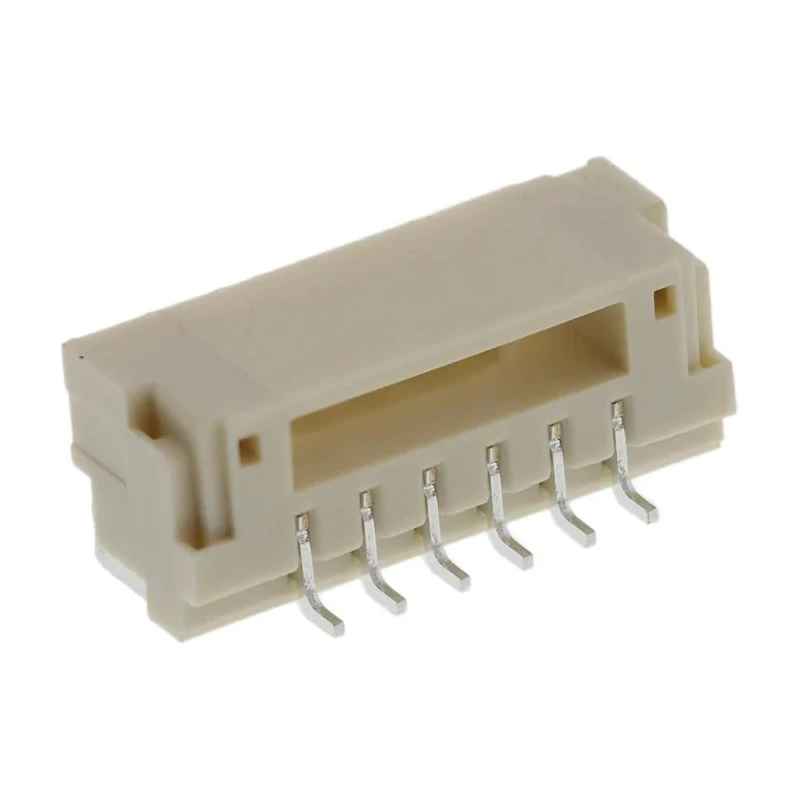

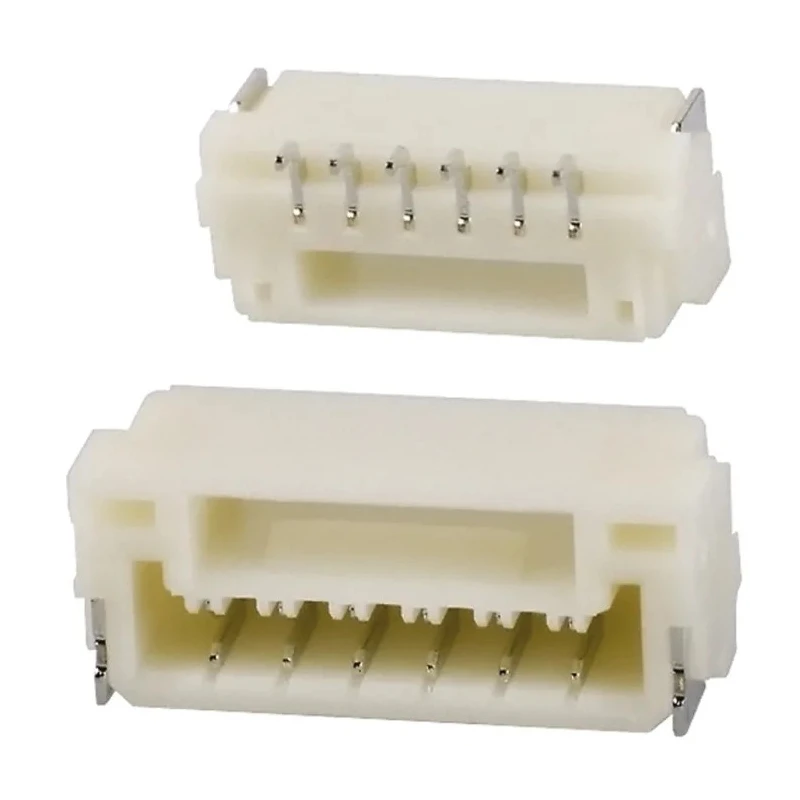

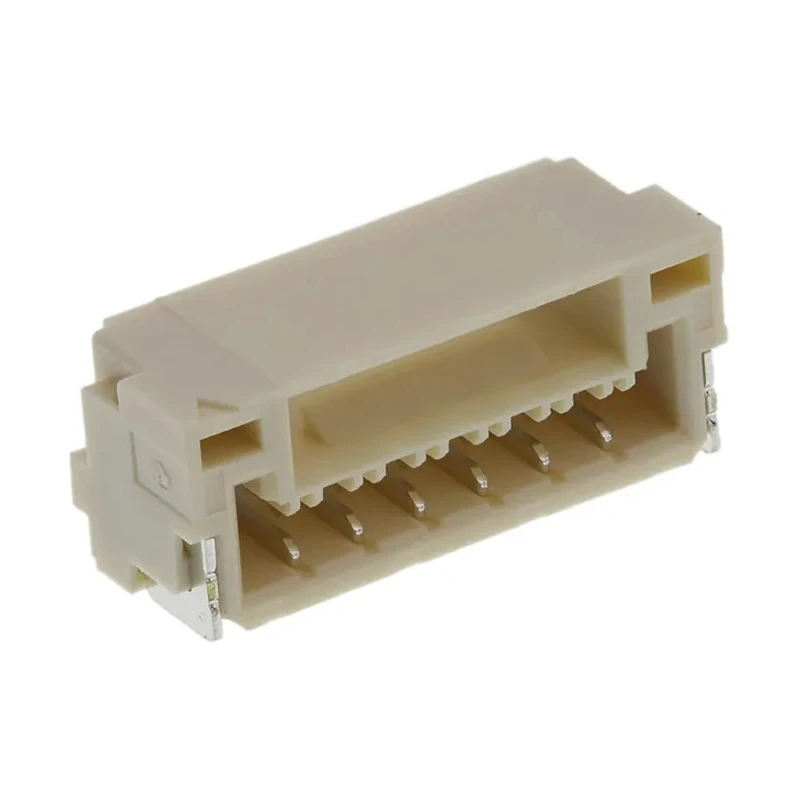

JST GH Series Right Angle Surface PCB Header 6 Contacts 1.25 mm Pitch 1 Row Shrouded SM06B-GHS-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST GH Series Right Angle Surface PCB Header 6 Contacts 1.25 mm Pitch 1 Row Shrouded SM06B-GHS-TB(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	JST
Orientation	Right Angle
Current	1A
Model	SM06B-GHS-TB(LF)(SN)
Mount Type	Surface
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	GH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1.25mm
Standards/Approvals	RoHS
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a shrouded 1-row design ensuring secure mating.
Made with polybutylene terephthalate housing for durability.
Contacts are male phosphor bronze with tin plating for corrosion resistance.
Operates reliably from -25°C to 85°C for various environments.
Supports a current rating of 1 ampere and voltage of 50 volts.
Surface mount termination by solder for PCB assembly compatibility.
Right angle orientation facilitates board edge connections.
Meets RoHS standards for environmental safety.

Product Description

JST SM06B-GHS-TB(LF)(SN) is a high-quality right angle surface mount PCB header designed with 6 male contacts spaced at a 1.25 mm pitch in a single row. This shrouded connector uses a polybutylene terephthalate housing to provide mechanical strength and electrical insulation suitable for demanding industrial and electronic applications. The phosphor bronze contacts with tin plating offer excellent conductivity and resistance to corrosion, ensuring long-term reliability.

Operating within a temperature range of -25°C to 85°C, the header supports 1A current and 50V voltage ratings, making it ideal for use in consumer electronics, industrial controls, and telecommunications equipment where compact, low-profile connectors are needed.

The right angle wire-to-board design enables easy PCB edge connections, and solder termination ensures stable mounting on circuit boards. The shrouded construction enhances mating security and protects contacts from accidental damage during assembly or operation.

This PCB header complies with RoHS environmental standards, indicating a lead-free and environmentally conscious manufacturing process. Shrouded 6-contact single-row right angle PCB header. 1.25 mm pitch for compact wiring solutions.

Durable polybutylene terephthalate housing. Phosphor bronze contacts with tin plating. Rated for 1 ampere current at 50 volts. Temperature operational range -25°C to 85°C. Surface mount solder termination. RoHS compliant for environmental safety.

This product is widely used in the electronics manufacturing industry for PCB assembly and wiring where robust, reliable and miniaturized connectors are required. Suitable applications include industrial machinery, communication devices, and consumer electronic gadgets.

Explore the full range of JST connectors and PCB components at EnvMart for seamless integration in your electronic design workflow.
