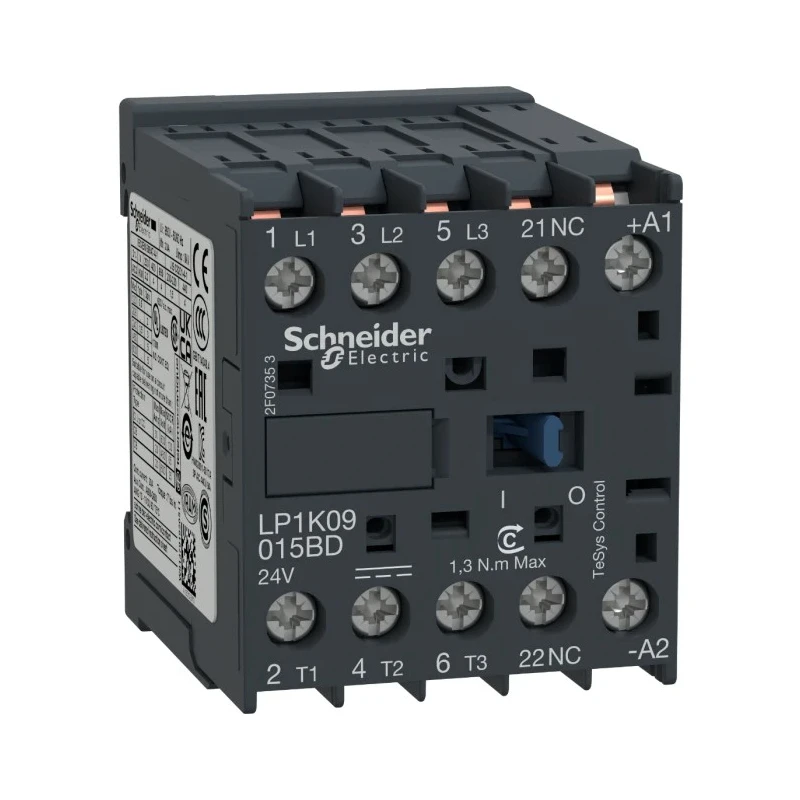

Schneider Electric TeSyS K Contactor 3-Pole, 9A, 24V DC Coil, 3 NO, 690V AC LP1K09015BD
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 58mm |
| Model | LP1K09015BD |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys K |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -60°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates at a coil voltage of 24V DC ensuring efficient electromagnetic control.
- Equipped with three poles and three normally open (3 NO) contacts for reliable switching.
- Supports contact voltage up to 690V AC suitable for industrial applications.
- Features one normally closed auxiliary contact (1 NC) and screw terminals for secure connections.
- Designed for DIN rail mounting to facilitate easy installation.
- Withstands operating temperatures from -60°C to 80°C for wide environmental tolerance.
- Compact dimensions of 58mm length, 45mm width, and 57mm depth optimize panel space.
- Constructed under stringent CSA and UL standards to ensure safety and durability.
Product Description
Schneider Electric offers the TeSyS K Contactor model LP1K09015BD, engineered for precise control of electrical power in industrial environments. This 3-pole contactor features a 24V DC coil voltage and supports currents up to 9A with contact voltage rating of 690V AC. It is primarily designed for motor control and resistive loads, ensuring dependable switching performance.
Operating reliably within a temperature range of -60°C to 80°C, this device is suitable for harsh environmental conditions. Its DIN rail mounting type facilitates straightforward panel installation and maintenance. The robust screw-type terminals provide secure and stable electrical connections, enhancing operational safety.
The contactor includes three normally open (3 NO) main contacts for load switching as well as one normally closed (1 NC) auxiliary contact for control circuit applications. Manufactured to comply with CSA and UL standards, it assures certified safety and quality compliance for industrial usage.
Compactly sized at 58mm in length, 45mm in width, and 57mm in depth, the LP1K09015BD is designed to optimize space within electrical panels. As a Better World product, it supports sustainability through its designed-for-disassembly feature, which promotes easier recycling and end-of-life handling.
Typical applications include operation in motor control centers, resistive heating systems, conveyor belts, compressors, and other industrial automation equipment. This contactor effectively manages power switching for devices requiring AC1 and AC3 utilization categories, facilitating the control of resistive loads and squirrel cage motors respectively.
Operates at a coil voltage of 24V DC ensuring efficient electromagnetic control. Equipped with three poles and three normally open (3 NO) contacts for reliable switching. Supports contact voltage up to 690V AC suitable for industrial applications.
Features one normally closed auxiliary contact (1 NC) and screw terminals for secure connections. Designed for DIN rail mounting to facilitate easy installation. Withstands operating temperatures from -60°C to 80°C for wide environmental tolerance.
Compact dimensions of 58mm length, 45mm width, and 57mm depth optimize panel space. Constructed under stringent CSA and UL standards to ensure safety and durability. Better World certified as designed for disassembly to support sustainability.
Suitable for switching motor loads, heating elements, and various resistive loads in industrial settings.
Discover this Schneider Electric TeSyS K contactor to enable reliable and efficient electrical control within your industrial automation projects. Explore more Schneider Electric products and related Contactors at EnvMart for comprehensive industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 24V DC, ensuring efficient electromagnetic control.
It supports a maximum contact voltage of 690V AC, making it suitable for various industrial applications.
This model features three poles, allowing for reliable switching in motor control and resistive load applications.
The dimensions of the contactor are 58mm in length, 45mm in width, and 57mm in depth, optimizing panel space.
The operational current rating for this model is 9A, suitable for various electrical loads.
It is designed for DIN rail mounting, facilitating easy installation and maintenance.
This contactor can operate within a temperature range of -60°C to 80°C, suitable for harsh environmental conditions.
Yes, it includes one normally closed (1 NC) auxiliary contact for control circuit applications.
It is constructed under stringent CSA and UL standards, ensuring safety and quality compliance for industrial usage.
It is suitable for switching motor loads, heating elements, and various resistive loads in industrial settings.
The contactor features screw terminals, providing secure and stable electrical connections.
This contactor is designed for disassembly, promoting easier recycling and end-of-life handling, supporting sustainability.
