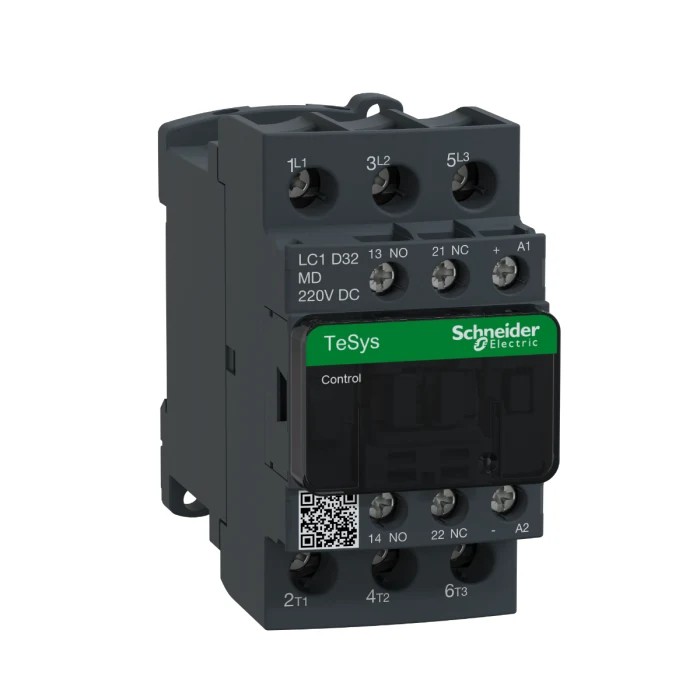

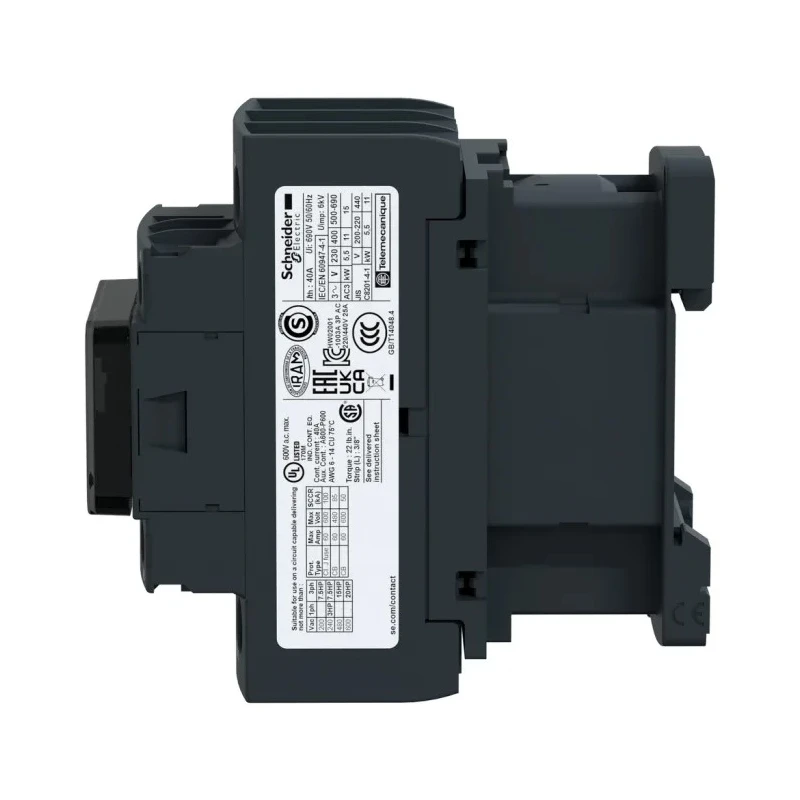

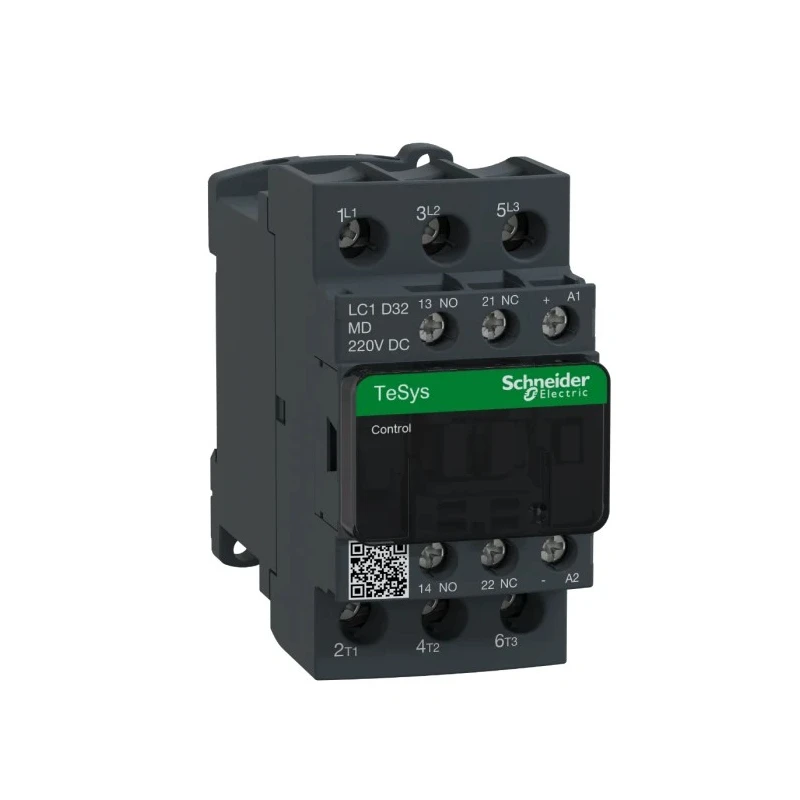

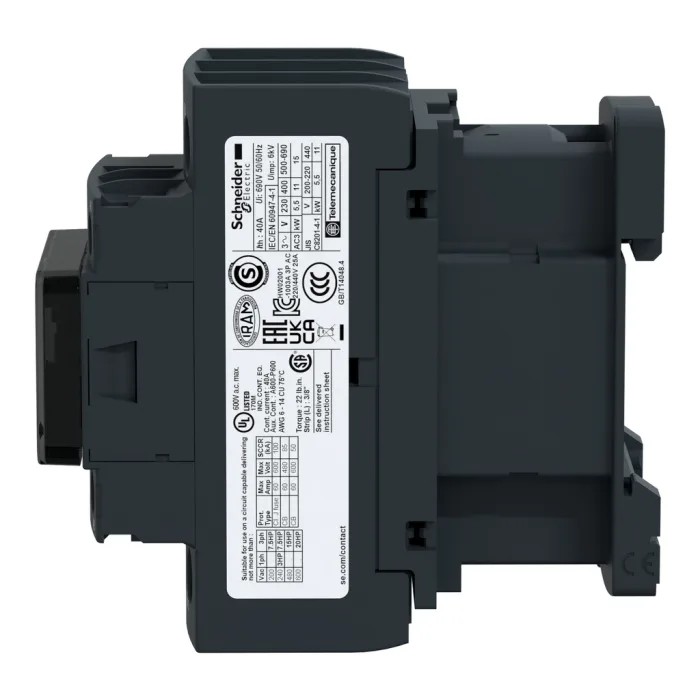

Schneider Electric TeSyS D Contactor 3-Pole 32A 690V AC-3 2HP 220V Coil LC1D32MD
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D32MD |
| Depth | 101mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 2HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 230V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 220V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for resistive and motor control loads with high reliability.
- Rated for 32A contact current and suitable for 690V AC-3 applications.
- Includes 3 normally open main contacts and 2 auxiliary contacts (1 NO and 1 NC).
- Mounts easily on DIN rail with screw clamp terminals for secure connections.
- Operates within temperature range of -5°C to 60°C ensuring durability.
- Power rating of 2HP at 220V coil voltage.
- Complies with multiple international standards including CSA, UL, IEC, CCC, EAC, and Marine certifications.
- Green Premium compliant with RoHS and REACh environmental standards.
Product Description
Schneider Electric LC1D32MD TeSyS D Contactor is a high-performance 3-pole contactor specifically engineered for industrial motor control and resistive load applications. It features a 230V DC coil with a built-in transient suppressor module, providing durable and efficient switching suitable for controlling motors up to 32A and a contact voltage up to 690V AC-3.
With a compact form factor measuring 85mm in length, 45mm in width, and 101mm in depth, this contactor can be mounted on a standard DIN rail or fixed with screws for robust installation. The device includes 3 normally open (NO) main contacts alongside 2 auxiliary contacts configured as 1 NO and 1 normally closed (NC) with the NC contact mirror certified for enhanced safety.
The contactor operates reliably across a wide temperature range, from -5°C up to 60°C, making it suitable for various industrial environments. It is rated for 2 horsepower motor control at 220V coil voltage and supports operating rates of up to 3600 cycles per hour, ensuring excellent electrical and mechanical endurance.
This Schneider Electric model complies with major certifications including CSA, UL, IEC, CCC, EAC, and Marine standards, reflecting its quality and international acceptance. Additionally, the product adheres to environmental sustainability requirements as a Green Premium product, being RoHS and REACh compliant.
Designed for motor control and resistive load applications. 3 poles with 3 normally open contacts for versatile switching. Auxiliary contacts include 1 normally open and 1 normally closed (mirror certified). Coil voltage: 230V DC with transient suppressor.
Compact dimensions and DIN rail mounting. Operational temperature from -5°C to 60°C. Power rating: 2 HP at 220V coil voltage. Certified to multiple international standards ensuring reliability and safety. Environmentally compliant with RoHS and REACh standards.
This contactor is ideal for industrial, automation, manufacturing, and HVAC applications requiring dependable motor control. Explore a broad range of Schneider Electric products at EnvMart to optimize your electrical control systems.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D32MD contactor has a power rating of 2 horsepower (HP) at a coil voltage of 220V.
This model is rated for a contact current of 32A.
The maximum contact voltage for the TeSys D contactor is 690V AC/DC.
The LC1D32MD contactor features 3 poles with 3 normally open contacts.
The contactor measures 85mm in length, 45mm in width, and 101mm in depth.
This model can be mounted on a DIN rail or fixed with screws for secure installation.
The operational temperature range for the LC1D32MD is from -5°C to 60°C.
It includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
This contactor complies with multiple international standards including CSA, UL, IEC, CCC, EAC, and Marine certifications.
The coil voltage for this contactor is 230V DC.
It is designed for motor control and resistive load applications in industrial settings.
The operational current rating for this model is 32A.
