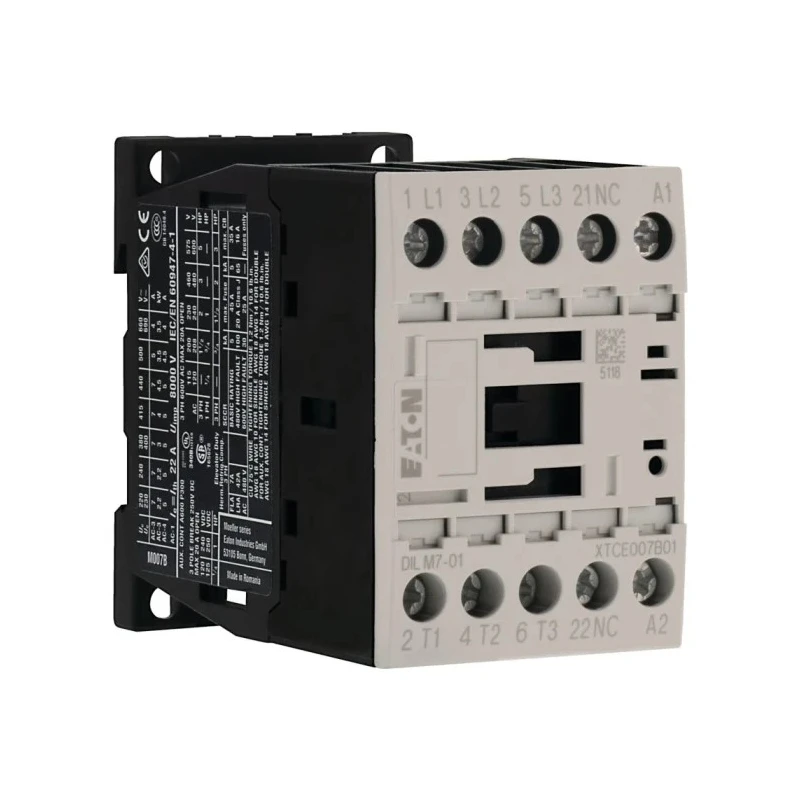

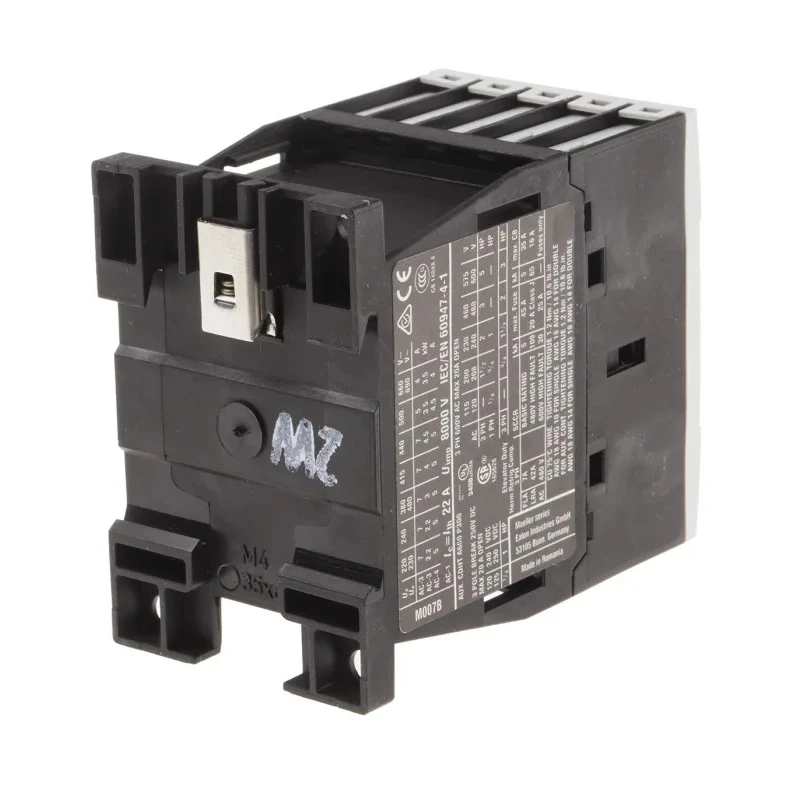

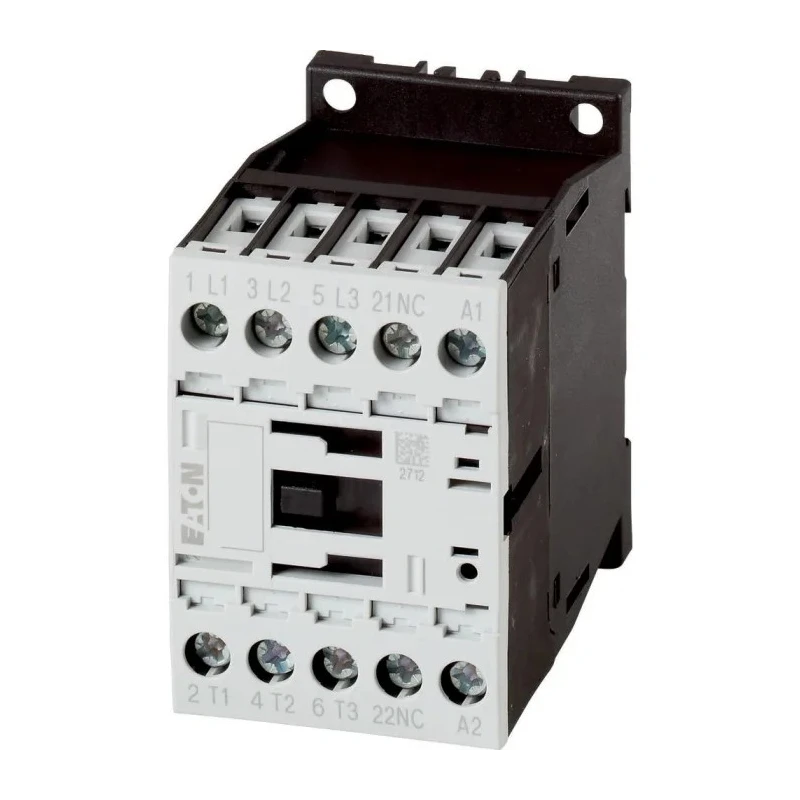

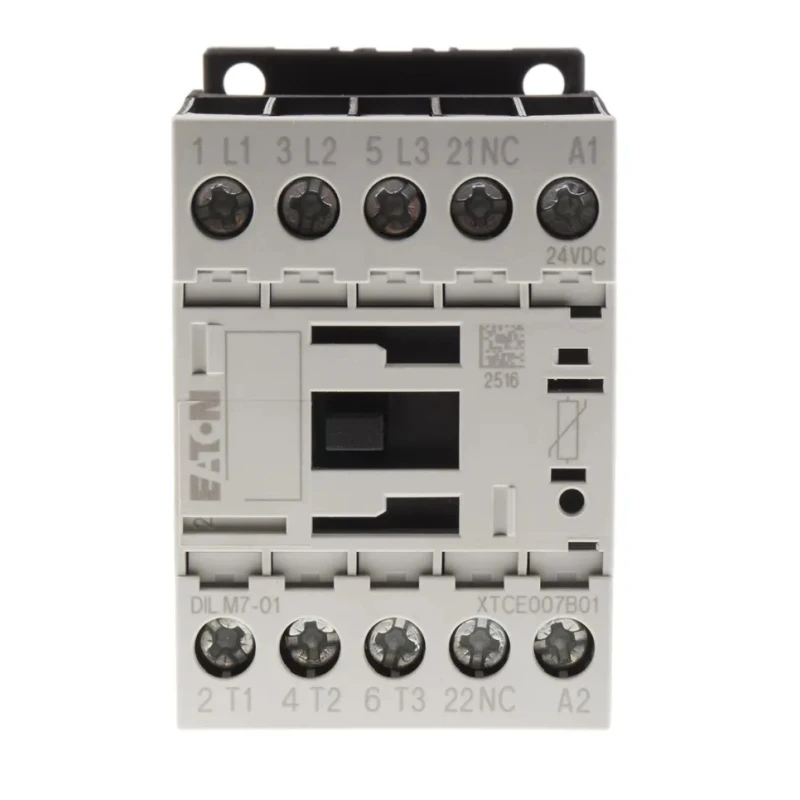

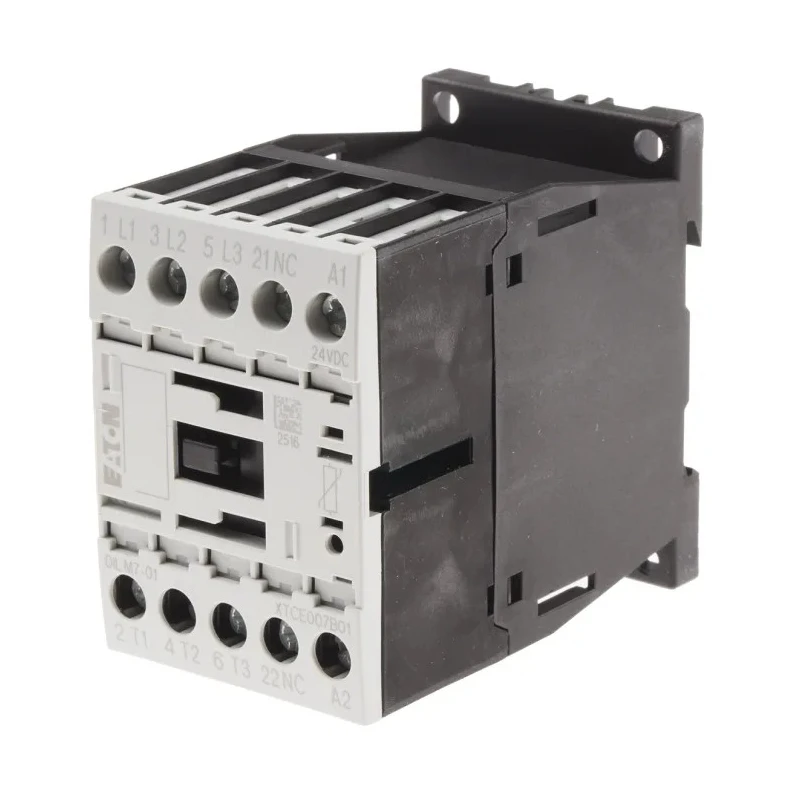

Eaton DILM Contactor, 24V DC Coil, 3-Pole, 7 A, 3 kW Power Rating, 400V AC Contact Voltage 276600 DILM7-01(24VDC)

Eaton 276600 DILM7-01(24VDC) Contactor is a reliable electrical component designed for motor control, featuring a 24V DC coil voltage and 3 poles to manage power effectively. It is rated for 7 A contact current and 3 kW power rating at 400V AC contact voltage, making it suitable for industrial and commercial motor control applications.

This contactor operates efficiently across a broad temperature range from -25°C to +60°C, providing stable performance in various environments. The mechanical lifespan of 10,000,000 cycles ensures durability and long-term use without failure.

The DIN rail mounting design allows for quick, tool-free installation, minimizing setup time during maintenance or upgrades. It features 3 normally open contacts and 1 normally closed auxiliary contact configured for flexible control system integration.

With an operational current capability of 22A and screw terminal type, it supports secure electrical connections. The compact size with dimensions of 117mm depth, 68mm length, and 45mm width supports space-efficient panel layouts. Compliance with EN 60947 standards confirms its suitability for demanding industrial conditions.

The contactor also withstands voltage surges up to 8kV AC, enhancing workplace safety by preventing electrical faults. Its 5kA short-circuit current rating protects equipment from transient surges. The lightweight 296g build allows for comfortable handling during installation and replacement.

This Eaton model, manufactured in Romania, is widely used in industries such as aerospace, manufacturing, and automation for controlling motors and resistive loads. It provides reliable switching functions including inching and reversing as per AC-1, AC-3, and AC-4 utilization categories.

The contactor operates within a wide temperature range from -25°C to +60°C. It features a mechanical lifespan of 10,000,000 operating cycles ensuring long-term reliability. DIN rail mounting enables quick and tool-free installation.

Equipped with 3 normally open power contacts and 1 normally closed auxiliary contact. Designed for motor and resistive load control applications at 24V DC coil voltage. Compact size and lightweight at 296 g facilitate easy installation and handling.

Short-circuit current rating of 5kA protects against electrical surges. Complies with EN 60947 standards for industrial safety and performance. Manufactured in Romania with high-quality build. Explore more electrical automation and control gear solutions with Eaton Contactors in the EnvMart catalog.
