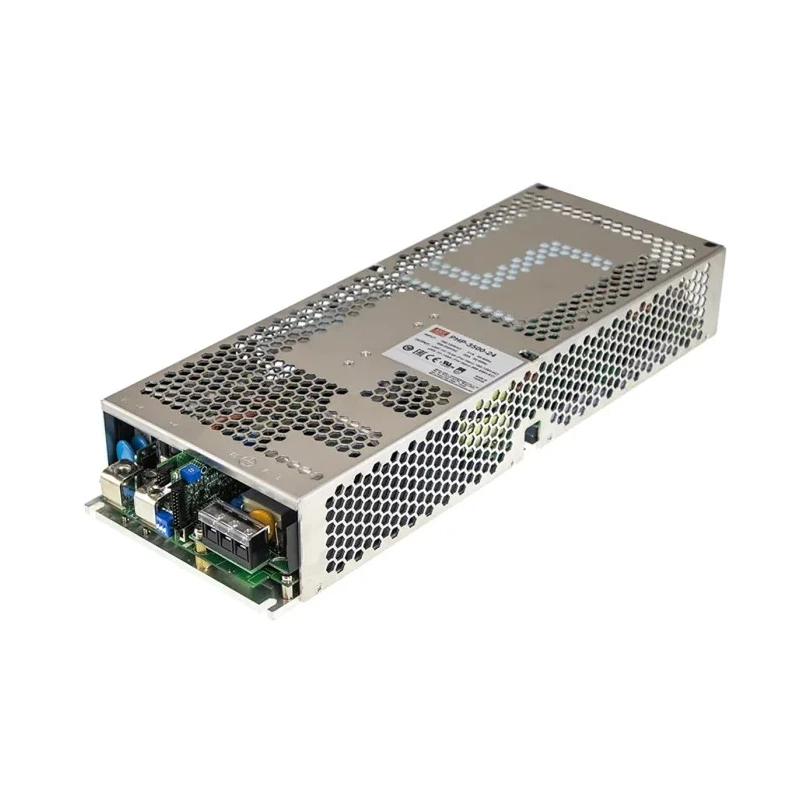

MEAN WELL Switching Power Supply 24V DC, 3.48kW, 145A Output, Chassis Mount, 90-370V AC/DC, Fanless Water-Cooling PHP-3500-24

MEAN WELL PHP-3500-24 Switching Power Supply is a robust, single output AC-DC power supply designed to provide a stable 24V DC output at 145A with a total power rating of 3.48kW. Its chassis mount type and compact low profile measuring 380mm length, 60mm width, and 60mm depth enable easy integration into industrial equipment.

This power supply features a fanless cooling system utilizing water conduction, reducing noise and increasing reliability in operation. It incorporates built-in active power factor correction for improved energy efficiency and minimal electrical noise. Furthermore, it has comprehensive protection mechanisms against short circuits, overloads, over voltage, and over temperature, ensuring safe and consistent performance.

Designed to operate across a wide input voltage range of 90V AC up to a maximum of 370V DC and 264V AC, and a broad temperature range from -30°C to +70°C, this unit is suited for demanding industrial environments. It includes remote ON/OFF control functionality and DC OK signaling for integration with control systems.

Additional features include programmable output voltage and constant current levels via the built-in PMBus communication protocol with an optional CANbus interface. The high efficiency rating of up to 96% optimizes power usage while maintaining output stability.

Applications for the PHP-3500-24 span industrial automation machinery, industrial control systems, mechanical and electrical equipment, and electronic instrumentations, making it ideal for a wide range of commercial and industrial electrical setups.

Provides a high maximum output voltage of 24V DC for versatile power needs. Single output design with chassis mount type for secure installation. Operates efficiently with 95% efficiency and supports input voltages up to 370V DC and 264V AC.

Fanless water-cooled heat dissipation ensures quiet operation and enhanced reliability. Built-in active PFC and protections including short circuit, overload, over voltage, and over temperature. Supports remote ON/OFF control and DC OK signal for monitoring and control integration.

Wide operating temperature range from -30°C to +70°C for harsh environments. Compact dimensions with low profile design: 380mm length, 60mm width, and 60mm depth. Complies with multiple international safety and quality standards.

Ideal for industrial automation, machinery, electronic instruments, and control systems.
