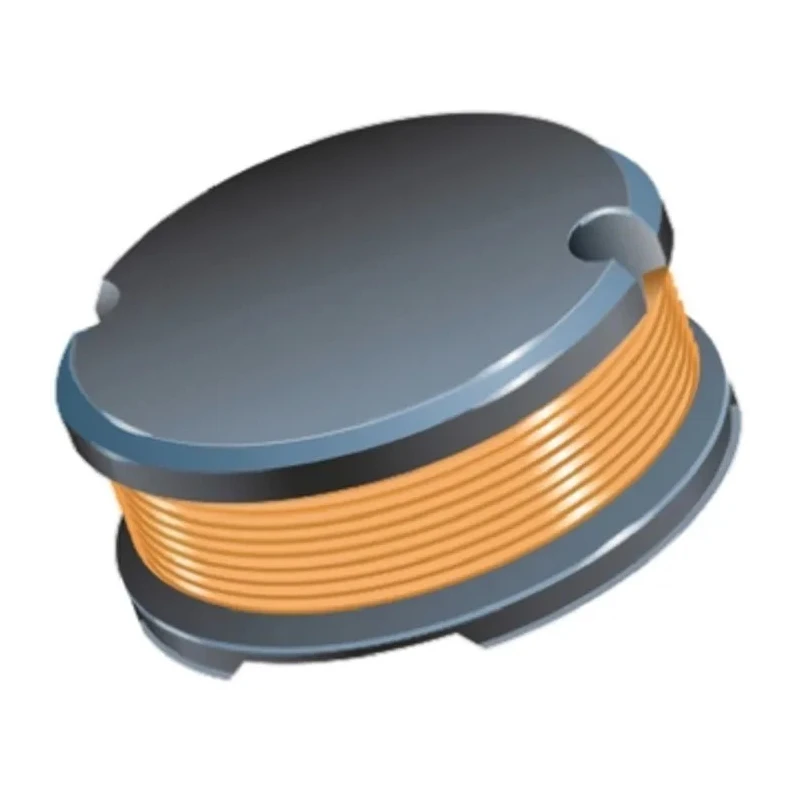

Bourns Unshielded Wirewound Surface Mount Inductor 100 μH ±10 % 680 mA DC Current 0604 Package SDR0604

The Bourns SDR0604 model is an unshielded wirewound surface mount inductor featuring a Ferrite DR core, designed for compact and efficient magnetic performance in electronic circuits. With a nominal inductance of 100 μH and a tolerance of ±10 %, it provides stable inductive characteristics for a wide range of applications.

This inductor supports a maximum DC current of 680 mA and operates efficiently between -40°C to 125°C, catering to demanding industrial and commercial environments. The 0604 package style, measuring 5.8 mm in length, width (diameter), and depth, enables ease of integration into dense PCB layouts, particularly in DC/DC converter inputs and power supply circuits.

The device is molded and constructed as wirewound to ensure durability and high performance. It complies with RoHS standards, promoting environmentally responsible manufacturing. With a maximum DC resistance of 700 mΩ and a minimum quality factor of 20, this inductor maintains low losses and effective operation up to its self-resonant frequency of 9 MHz.

Packaged on a reel, the SDR0604 facilitates streamlined surface mount technology (SMT) assembly, making it suitable for automated manufacturing lines. Typical uses include noise filtering, power management, and signal conditioning in industrial, commercial, and electronic instrumentation contexts.

Constructed with a Ferrite DR core for improved magnetic performance. Maximum DC current rating of 680 mA ensures circuit reliability. Compact 0604 package (5.8 mm x 5.8 mm x 4.8 mm profile) for PCB space-saving. Operating temperature range from -40°C to 125°C supports varied environments.

RoHS compliant wirewound inductor with molded encapsulation. Low maximum DC resistance of 700 mΩ reduces power losses. Minimum quality factor of 20 enhances high-frequency response. Maximum self-resonant frequency of 9 MHz allows use in high-frequency circuits.

Available on reel format for automated PCB assembly processes.

This product is ideal for use in electronic components supply chains and industrial projects demanding compact, reliable inductors. Explore more Bourns components and Surface Mount Inductors on EnvMart for effective design and manufacturing solutions.
