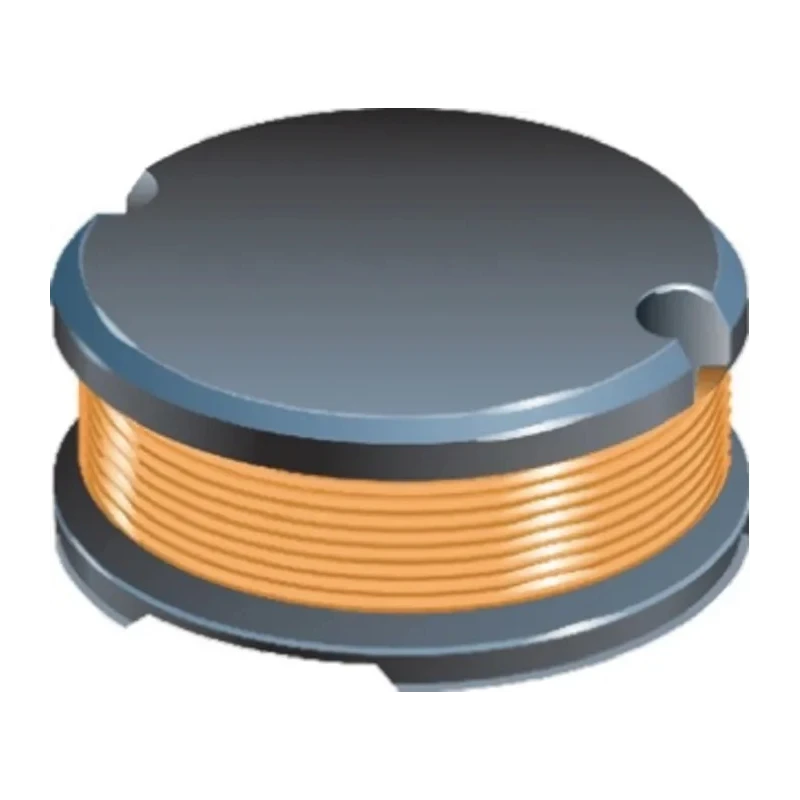

Bourns Unshielded Wirewound Surface Mount Inductor with Ferrite DR Core 10μH ±20% 900mA Idc Q:18 SDR0302
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | Bourns |
| Height | 2.5mm |
| Length | 3mm |
| Model | SDR0302 |
| Depth | 2.8mm |
| Packaging | Reel |
| Series | SDR0302 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 0302 |
| Maximum DC Current | 900mA |
| Maximum DC Resistance | 250mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 34MHz |
| Minimum Quality Factor | 18 |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a compact 0302 package suitable for surface mount applications.
- Inductor uses a wirewound construction with a ferrite DR core.
- Maximum self-resonant frequency is 34MHz ensuring good performance in high frequency circuits.
- Designed to operate reliably from -40°C to 125°C operating temperature range.
- Offers a minimum quality factor (Q) of 18 for efficient energy storage and transfer.
- Surface mount termination style enables easy PCB assembly.
- Maximum DC resistance is 250mΩ ensuring low power loss.
- Moulded construction enhances durability and environmental protection.
Product Description
Bourns SDR0302 Unshielded Wirewound Surface Mount Inductor features a ferrite DR core delivering an inductance of 10μH with a tolerance of ±20%. Designed for reliable operation in a broad temperature range from -40°C to 125°C, this inductor is optimized for surface mount technology with a compact 0302 package size measuring 3mm in diameter, 2.5mm height, and 2.8mm depth.
This wirewound inductor offers a maximum DC current rating of 900mA and maximum DC resistance of 250mΩ, providing efficient performance in power supply circuits such as DC/DC converters and portable communication equipment. The construction includes a moulded ferrite DR core that helps minimize electromagnetic interference by the unshielded design, suitable for applications such as camcorders, LCD TVs, and car radios.
The inductor achieves a maximum self-resonant frequency of 34MHz and a minimum quality factor of 18, ensuring the device performs well in high frequency environments. Its surface mount termination style facilitates automated PCB assembly and production efficiency.
This component is RoHS compliant, supporting eco-friendly manufacturing standards.
Applications include industrial, electronics manufacturing, communication devices, and consumer electronics where a compact, reliable inductor is required for power conditioning and noise filtering.
The inductor is constructed with a wirewound coil on a ferrite DR core for stable inductance. Low profile of 2.5mm height suits space-constrained PCB designs. High maximum DC current and low resistance improve power efficiency and reduce losses.
Wide operating temperature range supports diverse operating environments. Moulded design protects the coil and core from mechanical and environmental damage. Surface mount termination enables compatibility with modern SMT assembly lines.
RoHS compliance ensures environmental safety. Discover a broad range of inductors and passive components on EnvMart to enhance your electronic designs with reliable and high-quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 10μH with a tolerance of ±20%.
It has a maximum DC current rating of 900mA, making it suitable for various power supply applications.
The maximum self-resonant frequency is 34MHz, ensuring good performance in high-frequency circuits.
This inductor has a diameter of 3mm, a height of 2.5mm, and a depth of 2.8mm.
It operates reliably within a temperature range of -40°C to 125°C.
The maximum DC resistance is 250mΩ, which helps in reducing power loss.
This model features a surface mount termination style, facilitating easy PCB assembly.
The inductor has a minimum quality factor of 18, which contributes to efficient energy storage and transfer.
It uses a ferrite DR core, which helps minimize electromagnetic interference.
Yes, this inductor is RoHS compliant, supporting eco-friendly manufacturing standards.
It is suitable for applications in industrial electronics, communication devices, and consumer electronics, particularly for power conditioning and noise filtering.
This model features a wirewound construction, which provides stable inductance.
