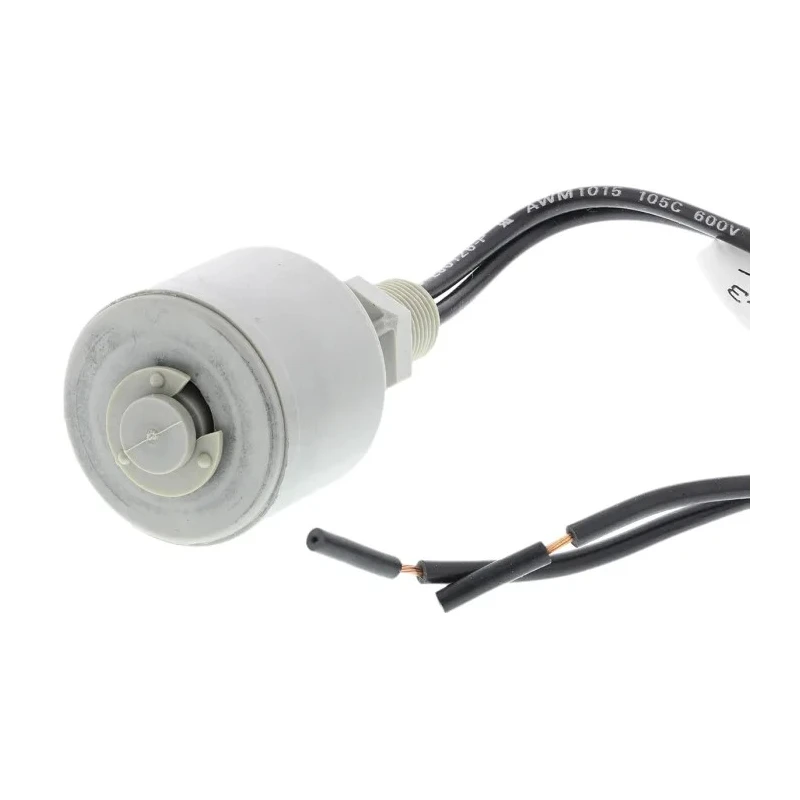

Cynergy3 RSF50 Series Vertical Nitrile Rubber (NBR) Float Switch with 1 m Cable, NO/NC, Max 300 V AC/DC RSF56H100R1/8

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 RSF50 Series Vertical Nitrile Rubber (NBR) Float Switch with 1 m Cable, NO/NC, Max 300 V AC/DC RSF56H100R1/8

Name: Cynergy3 RSF50 Series Vertical Nitrile Rubber (NBR) Float Switch with 1 m Cable, NO/NC, Max 300 V AC/DC RSF56H100R1/8
Brand: Cynergy3
SKU: 103584
Price: 26.04 USD
Availability: InStock



Category Float Switch Brand Cynergy3 Condition New

Specifications

Country of Origin	China
Brand	Cynergy3
Model	RSF56H100R1/8
Cable Length	1m
Mount Type	Vertical
Housing Material	Polyphenylene Sulphide
Series	RSF50
Maximum Operating Temperature	120°C
Switch output	NO/NC
Minimum Operating Temperature	-10°C
Maximum Current	1A
Maximum dc Voltage	300V dc
Standards/Approvals	NSF Approved, WRAS
Maximum AC Voltage	300V ac
Gasket Material	Nitrile Rubber (NBR)

Key Features

Designed for vertical mounting with a 1 meter cable length for versatile installation.
Switch output supports normally open (NO) and normally closed (NC) configurations.
Constructed with polyphenylene sulphide housing for chemical and abrasion resistance.
Operates safely in temperatures from -10°C up to 120°C.
Rated for maximum voltages of 300 V AC and 300 V DC with up to 1 A current.
Features a 1/8-inch NPT connection for secure attachment.
Includes an in-built magnet actuator that changes state according to liquid level changes.
Suitable for industrial use cases such as vending machines, printing systems, and chemical dosing equipment.

Product Description

The Cynergy3 RSF56H100R1/8 RSF50 Series vertical float switch is engineered for accurate and durable liquid level sensing in industrial tanks and large vessels. Featuring a 1 meter cable and versatile switch output options (NO/NC), this float switch is ideal for demanding operational environments.

The housing is fabricated from chemically resistant polyphenylene sulphide (PPS) to withstand abrasion and harsh media exposure. The nitrile rubber (NBR) gasket ensures a secure seal, supporting a broad temperature range from -10°C to 120°C. With a maximum voltage rating of 300 V AC and 300 V DC, and a current rating of 1 ampere, it supports robust electrical performance suitable for a variety of industrial control applications.

It mounts vertically through a 1/8-inch NPT connection, making installation straightforward and secure. Its actuator includes a built-in magnet which responds dynamically to changes in liquid level by altering the magnetic field, thus switching the contacts between open and closed states.

This float switch is NSF approved and WRAS certified, attesting to its quality and suitability for use in regulated environments. Includes 1 meter cable length for flexible connection. Vertical mounting style optimized for tanks and vessels.

Polyphenylene sulphide housing provides chemical and abrasion resistance. Nitrile rubber gasket ensures environmental sealing and durability. Switch output selectable between normally open (NO) and normally closed (NC). High operating temperature range supports demanding industrial uses.

Rated for 300 V AC and 300 V DC maximum voltages. 1 ampere maximum current rating ensures safe electrical operation. 1/8-inch NPT connection compatible with standard fittings. Manufactured in China with compliance certifications.

This Float Switch is suited for use in sectors including industrial automation, HVAC, chemical dosing, printing machinery, vending systems, and other liquid-level controlled processes. Its durable build and versatile features make it an ideal sensor choice for precise level monitoring and control applications.

Explore more high-quality sensors and automation products from Cynergy3 available on EnvMart.
