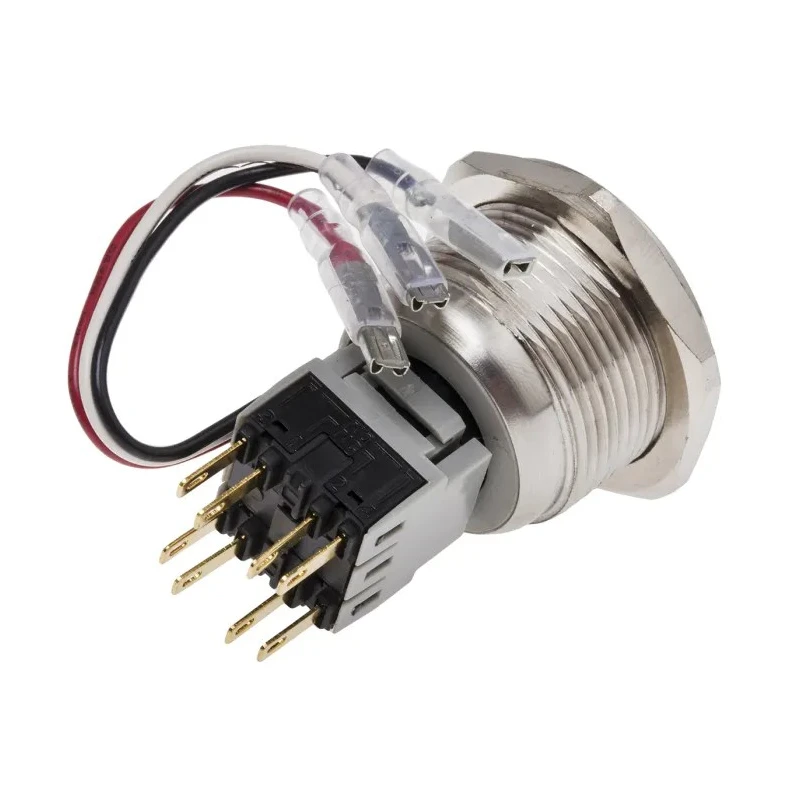

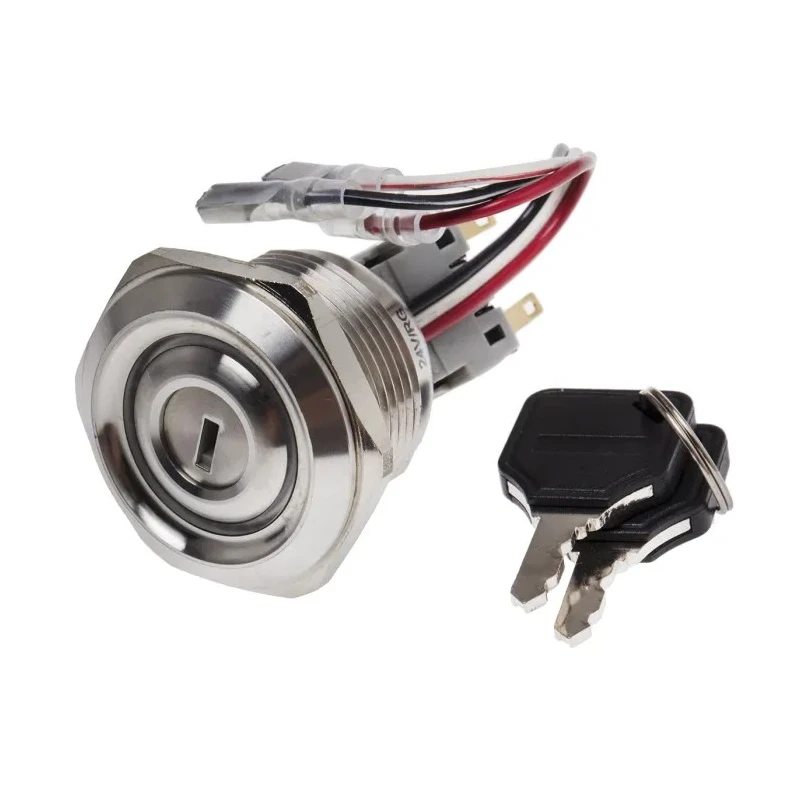

RS PRO IP40 Key Switch DPDT 5A 2-Way Stainless Steel Latching Switch IP40 IP Rating IP40 IP40

RS PRO IP40 Key Switch model IP40 is a robust and reliable stainless steel key switch featuring a double pole double throw (DPDT) contact configuration with 2 positions and latching switch operation. It is engineered for electrical automation and control systems requiring durable and secure switching solutions.

This key switch has a protection rating of IP40, safeguarding against intrusion of solid objects larger than 1 mm, making it suitable for many industrial and commercial electrical applications. The switch operates at a contact current of 5A with voltage ratings of 30V DC and 250V AC, and the contacts are silver plated to ensure excellent conductivity and longevity.

The housing and button are made from stainless steel with a varnish finish, providing resistance to corrosion and mechanical wear. It has a bezel with round shape and requires a panel cut-out diameter of 30.2 mm for installation. The operating temperature range is from -20°C to 55°C, and the mechanical life is rated at 50,000 operations at full load. Key removal is possible in all positions, enhancing security and ease of use.

The device is compliant with recognized industry standards including UL, cUL, and CE certifications. It is ideal for industrial automation, electrical panels, control cabinets, machinery, and commercial electrical installations requiring a secure keyed switching solution.

The switch features a double pole double throw (DPDT) contact configuration with 2 positions. It operates with a latching switch operation for secure control states. Constructed with a stainless steel housing and a round bezel for durability.

Has an IP40 protection rating providing front panel protection against solid objects larger than 1mm. The electrical ratings include 5A switch contact current with 30V DC and 250V AC contact voltages. The key index angle is 90°, allowing clear actuation positions.

Mechanical life is rated for 50,000 operations ensuring long service life under full load conditions. The panel cut-out diameter required for installation is 30.2 mm. The contacts are made of silver for reliable conductivity and corrosion resistance.

This product complies with UL, cUL, and CE standards. Explore our category for more high-quality Key Switches and electrical automation components from RS PRO at EnvMart.
