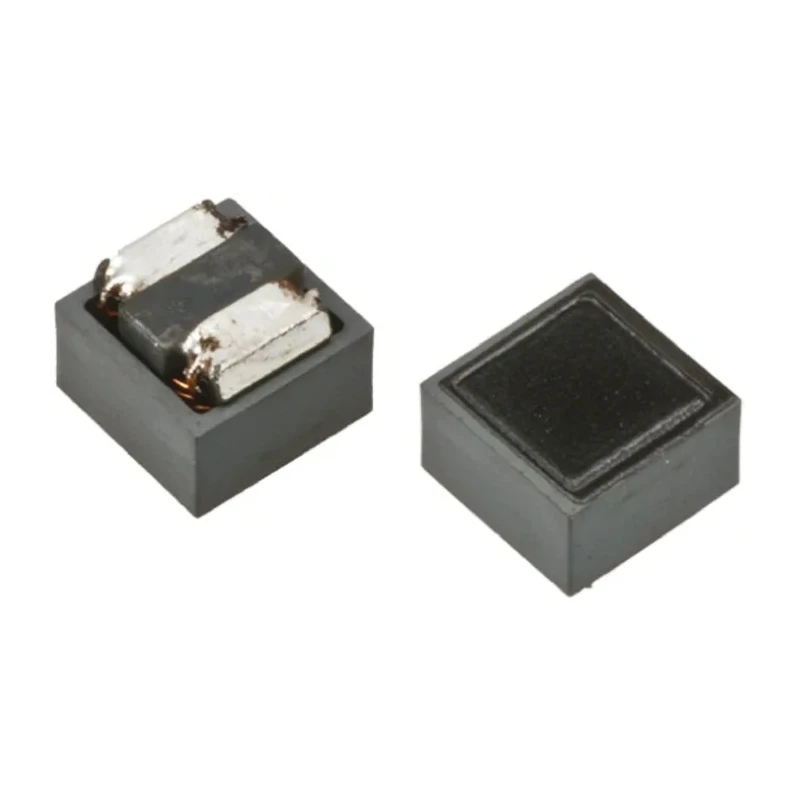

Murata 2525 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10µH ±20% 1.6A DC Current LQH66SN100M03L

Murata LQH66SN100M03L is a 2525 shielded wirewound Surface Mount Inductor with a ferrite core, featuring an inductance of 10μH with a tolerance of ±20% and a maximum DC current rating of 1.6A. This component is engineered for use in electronic applications requiring stable inductance with minimal electromagnetic interference.

Constructed with high performance thick wirewound technology, the inductor provides low direct current resistance and large current capacity, making it suitable for demanding choke applications. The high-density mounting configuration supports compact PCB designs, optimal for DC-DC converters and DC power supply circuits.

Encased in a compact 2525 package with dimensions 6.3 mm length, 4.7 mm height, and 6.3 mm depth, the device's solder termination style ensures compatibility with surface mount assembly lines. The ferrite core and wirewound construction enhance the inductor's magnetic retention and energy storage capabilities.

This inductor also meets RoHS compliance standards and includes shielding to minimize electromagnetic interference, guaranteeing reliable operation under industrial and commercial usage conditions. The operating temperature range from -40°C to 80°C ensures durability across varied environments.

Additional product features include a maximum DC resistance of 50.4 mΩ, a maximum self-resonant frequency of 20 MHz, and supply via embossed tape packaging, facilitating automated placement and efficient production. Originating from Japan, this Murata inductor is ideal for industrial, electronic manufacturing, and power conditioning equipment applications.

The inductor features a 2525 package/case size suitable for high density mounting. It has a maximum DC resistance of 50.4mΩ ensuring low power loss. Shielding is integrated to minimize electromagnetic interference in circuits.

The device operates within a temperature range of -40°C to 80°C for robust performance. Designed with a ferrite core and wirewound construction for stable inductance. Ideal for choke applications in DC-DC converters and DC power supply circuits.

Termination style is solder compatible, supporting surface mount technology (SMT). Compliance with RoHS standards ensures environmental and safety regulations are met. This inductor offers a maximum self-resonant frequency of 20MHz for high-frequency applications.

It is supplied in embossed tape packaging for efficient manufacturing assembly processes. Explore Murata inductors and related electronic components to enhance your industrial, electronic manufacturing, or power supply projects at EnvMart.
