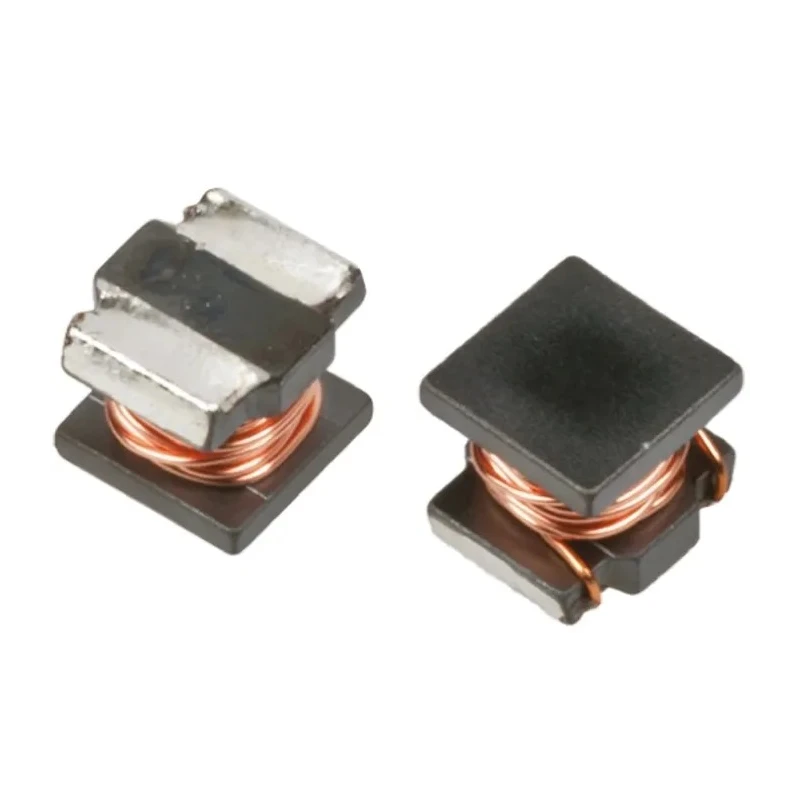

Murata Unshielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 mH ±20% 70 mA Idc, 2220 Package LQH55DN472M03L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 4.7mm |
| Length | 5.7mm |
| Model | LQH55DN472M03L |
| Depth | 5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7mH |
| Standards/Approvals | RoHS |
| Package/Case | 2220 |
| Maximum DC Current | 70mA |
| Maximum DC Resistance | 61.04Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 800kHz |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core for efficient performance.
- Inductance value of 4.7 millihenrys with ±20% tolerance.
- Maximum DC current rating of 70 milliamperes.
- Compact 2220 package size with dimensions 5.7mm x 4.7mm x 5mm.
- Designed for surface mount technology with solder termination style.
- Maximum operating temperature of 80°C and minimum of -40°C.
- Low DC resistance of 61.04 ohms to maintain efficiency.
- Meets RoHS standards ensuring environmental compliance.
Product Description
Murata LQH55DN472M03L is an unshielded wirewound surface mount inductor designed with a ferrite core, providing stable inductance of 4.7 mH with ±20% tolerance. It supports a maximum DC current of 70 mA, making it suitable for choke and filtering applications in electronic circuits.
This inductor comes in a compact 2220 package size with dimensions 5.7 mm in length, 4.7 mm in height, and 5 mm in depth. The solder termination style allows for reliable surface mounting on printed circuit boards (PCBs).
Operating temperature range from -40°C to 80°C ensures performance stability across various environmental conditions. The low DC resistance of 61.04 ohms minimizes power loss and heats generation, enhancing efficiency for DC-DC converters and power supply circuits.
Compliant with RoHS standards, this component meets environmental regulations. Its maximum self-resonant frequency of 800 kHz is suitable for signal conditioning in high frequency applications.
Packaging in embossed tape facilitates automated placement in manufacturing, boosting production efficiency. This product is assembled using high performance wirewound technology for robust and reliable performance.
Common industrial applications include electronic devices, power management modules, and consumer electronics requiring compact and efficient inductors. Murata's LQH series offers dependable components for designing circuits with effective noise suppression and power conversion features.
Constructed with a ferrite core for efficient performance. Inductance value of 4.7 millihenrys with ±20% tolerance. Maximum DC current rating of 70 milliamperes. Compact 2220 package size with dimensions 5.7mm x 4.7mm x 5mm.
Designed for surface mount technology with solder termination style. Maximum operating temperature of 80°C and minimum of -40°C. Low DC resistance of 61.04 ohms to maintain efficiency. Meets RoHS standards ensuring environmental compliance.
Maximum self-resonant frequency of 800 kHz suitable for choke applications. Embossed tape packaging for automated assembly processes. Explore Murata Surface Mount Inductors in EnvMart's Electronics Components category for reliable passive components suited for various electronic and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has an inductance value of 4.7 mH with a tolerance of ±20%.
The maximum DC current rating is 70 mA.
The dimensions of the 2220 package are 5.7 mm in length, 4.7 mm in height, and 5 mm in depth.
The maximum operating temperature is 80°C, while the minimum is -40°C.
The core material is ferrite, which contributes to its efficient performance.
It is packaged in embossed tape, facilitating automated assembly processes.
The maximum self-resonant frequency is 800 kHz, suitable for high frequency applications.
It uses a solder termination style designed for reliable surface mounting.
The low DC resistance is 61.04 ohms, which helps maintain efficiency.
It meets RoHS standards, ensuring environmental compliance.
It is suitable for choke and filtering applications in electronic circuits, as well as power management modules and consumer electronics.
The country of origin for this inductor is Japan.
