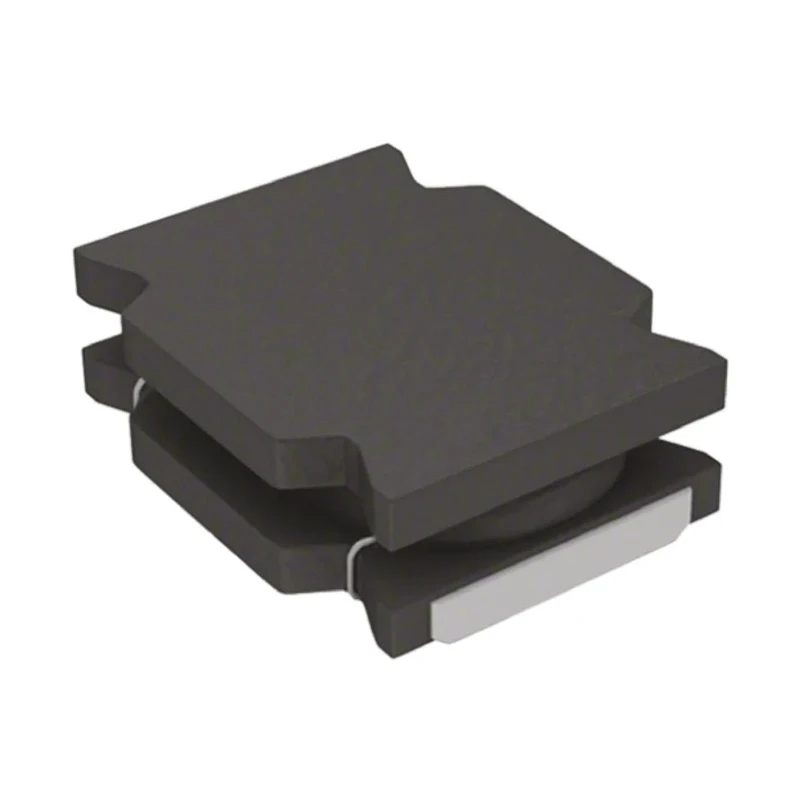

Murata Wirewound Surface Mount Inductor 10 μH ±10% 225 mA 0806 Size Ferrite Core LQH2MCN100K02L
Specifications
| Country of Origin | India |
|---|---|
| Size | 2.0x1.6mm (0806) |
| Brand | Murata |
| Height | 0.9mm |
| Length | 2mm |
| Model | LQH2MCN100K02L |
| Depth | 1.6mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 0806 |
| Maximum DC Current | 225mA |
| Maximum DC Resistance | 1.56Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 48MHz |
| Inductor Construction | Wirewound |
Key Features
- Compact 0806 package size measuring 2.0 mm x 1.6 mm.
- Constructed with a ferrite core and wirewound design for stable inductance.
- Maximum DC resistance of 1.56 Ω ensuring efficient performance.
- RoHS compliant and moulded for durability and reliability.
- Operational temperature range from -40°C to 85°C.
- Maximum self-resonant frequency of 48 MHz suitable for high-frequency applications.
- Termination style designed for soldering on surface mount technology (SMT) boards.
Product Description
Murata LQH2MCN100K02L is a wirewound surface mount inductor with a ferrite core, providing an inductance of 10 μH ±10% tolerance and supporting a maximum DC current of 225 mA. Packaged in a compact 0806 size, it measures 2.0 mm in length, 1.6 mm in depth, and 0.9 mm in height, making it ideal for space-constrained PCB applications.
This component is designed with a robust wirewound construction on a ferrite core, ensuring stability and reliability in electronic circuits. It features a maximum DC resistance of 1.56 Ω, contributing to efficient current flow and minimizing power loss.
The inductor is RoHS compliant, molded for mechanical protection, and supports a wide operating temperature range from -40°C to 85°C, making it suitable for industrial, commercial, and consumer electronics environments that demand durability.
With a maximum self-resonant frequency of 48 MHz, the LQH2MCN100K02L performs well in high-frequency filtering and noise suppression applications, especially in power management and signal conditioning circuits.
The termination style is solder-optimized for Surface Mount Technology (SMT) assembly, ensuring secure and reliable board mounting. Its compact 0806 form factor supports automated production techniques with embossed tape packaging, increasing manufacturing efficiencies.
Compact 0806 package size measuring 2.0 mm x 1.6 mm. Wirewound design on a ferrite core for stable inductance. Maximum DC resistance rating of 1.56 Ω. RoHS compliant for environmental safety standards. Wide operating temperature range from -40°C to 85°C.
Moulded construction for enhanced mechanical robustness. Solder termination suitable for SMT processes. Maximum self-resonant frequency of 48 MHz for high-frequency applications.
This Murata wirewound surface mount inductor is widely used in industrial electronics, power supplies, communication devices, and consumer electronics requiring effective noise filtering and energy storage. Its design ensures precise electrical characteristics and reliability across harsh conditions.
Explore more Surface Mount Inductors and electronic components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±10%.
It supports a maximum DC current of 225 mA.
This inductor has dimensions of 2.0 mm in length, 1.6 mm in depth, and 0.9 mm in height, conforming to the 0806 package size.
The maximum DC resistance is rated at 1.56 Ω, which helps ensure efficient performance.
The operational temperature range is from -40°C to 85°C, making it suitable for various environments.
It has a maximum self-resonant frequency of 48 MHz, suitable for high-frequency applications.
This inductor is constructed with a ferrite core, which contributes to its stable inductance characteristics.
The termination style is designed for soldering, optimized for surface mount technology (SMT) assembly.
Yes, this inductor is RoHS compliant, adhering to environmental safety standards.
It is packaged in embossed tape, which facilitates automated production techniques.
It is widely used in industrial electronics, power supplies, communication devices, and consumer electronics for effective noise filtering and energy storage.
This model is part of the LQH series of inductors.
