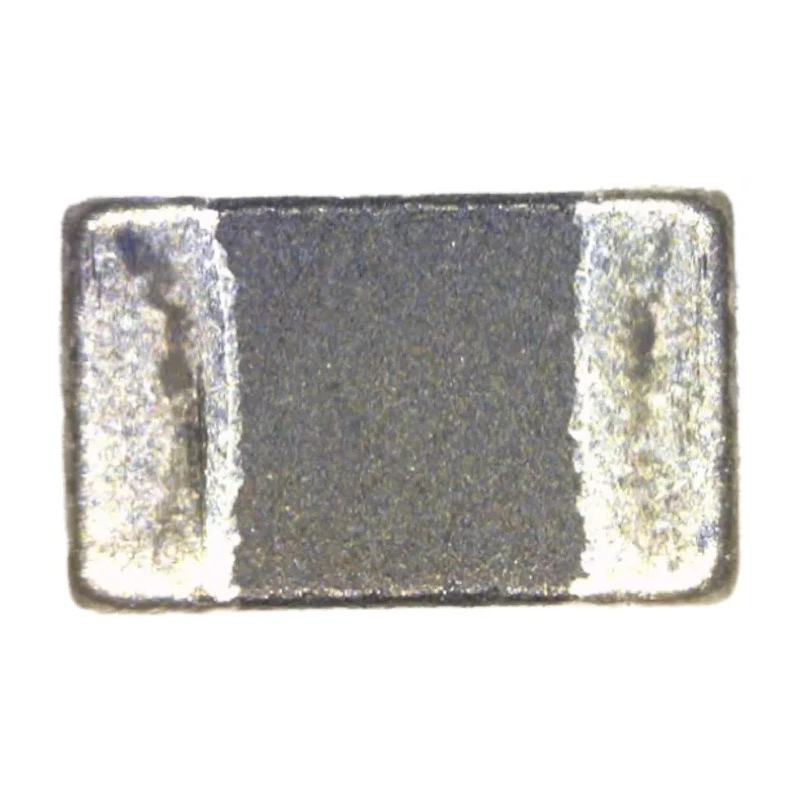

Murata 0805 Shielded Multilayer Surface Mount Inductor 2.2μH ±10% 30mA Ferrite Core LQM21N

Murata LQM21N 0805 Shielded Multilayer Surface Mount Inductor features a ferrite core with a nominal inductance of 2.2μH and a tolerance of ±10%. It supports a maximum DC current of 30mA, making it ideal for compact electronic components requiring stable inductance in a small footprint of 2.0mm by 1.25mm.

The component incorporates multilayer construction technology with magnetic shielding to minimize electromagnetic interference, thus ensuring high signal integrity in densely packed circuits. Its maximum DC resistance of 630 milliohms ensures efficient energy transfer with minimal power loss.

Designed to operate within a temperature range from -40°C up to 85°C, this inductor is highly reliable for automotive and industrial electronic applications. The ferrite core enhances the inductive properties while maintaining consistency over a wide range of frequencies, up to a maximum self-resonant frequency of 71 MHz.

The moulded 0805 case facilitates secure PCB mounting in surface-mount technology (SMT) settings. Packaged in embossed tape, it is ready for automatic pick-and-place assembly, improving production efficiency.

Additional technical features include a minimum quality factor of 45, solder termination style, and compliance with RoHS standards, demonstrating environmental compliance. The 0805 package size offers compact mounting on circuit boards.

Features multilayer construction and magnetic shielding to reduce interference. Inductance tolerance maintained at ±10% for consistent performance. Maximum DC resistance is 630 milliohms ensuring minimal power loss. Operates effectively between -40°C and 85°C temperature range.

Ferrite core material provides high efficiency and stability. Maximum self resonant frequency of 71 MHz supports high-frequency applications. Moulded design enhances durability and mechanical stability. Suitable for use in automotive and general electronic equipment.

Packaged in embossed tape for automated assembly processes.

This Murata LQM21N inductor is an excellent choice for industrial, automotive, and consumer electronics that require reliable and compact inductive components. Explore the full range of Surface Mount Inductors on EnvMart for compatible electronic components.
