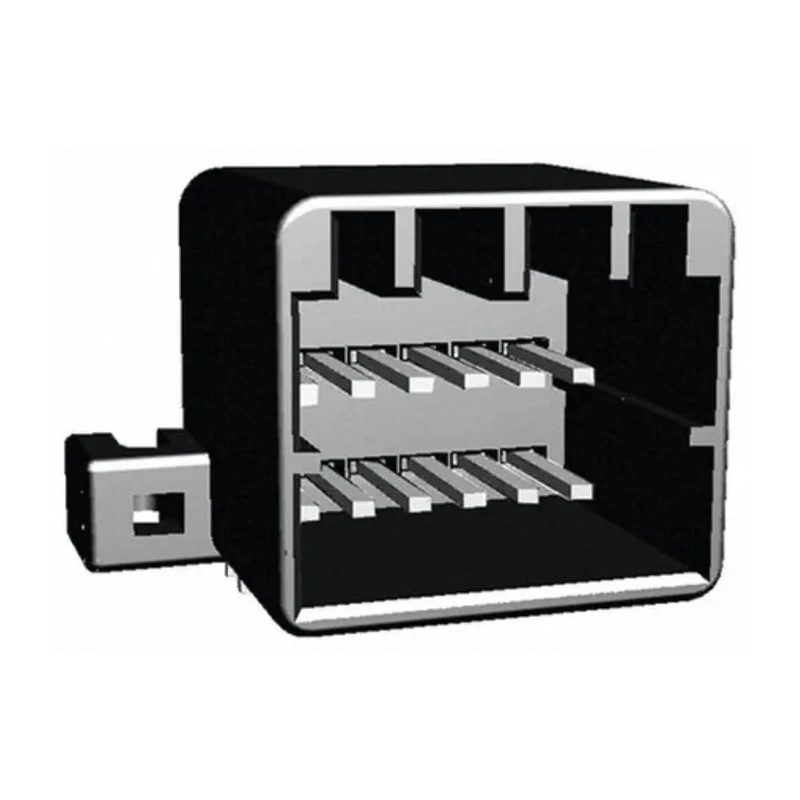

TE Connectivity MULTILOCK 040 II Series Right Angle Through Hole PCB Socket, 12-Contact, 2 Row, 2.5 mm Pitch, 250V 175974-2

TE Connectivity 175974-2 MULTILOCK 040 II Series Right Angle Through Hole PCB Socket is a high-quality electronic component designed for wire-to-board applications operating at 250V. It features 12 contacts arranged in 2 rows with a pitch of 2.5 mm, making it ideal for compact, high-density PCB connections commonly used in automotive and industrial sectors.

This PCB socket incorporates a durable thermoplastic housing with a solder termination type that supports through-hole mounting and a right-angle orientation for efficient PCB layout. The integral double locking mechanism secures contacts, reducing the risk of disconnections during performance.

The brass contact material plated with tin ensures excellent conductivity and corrosion resistance while protecting contacts from rocking action during mating, enhancing long-term durability and reliability.

The connector is rated for a maximum operating temperature of 105°C and can function reliably at temperatures as low as -55°C, accommodating a wide range of environmental conditions. It is RoHS compliant, reflecting adherence to current environmental and safety standards.

Typical applications for this connector include automotive systems such as powertrain, safety and security, convenience features like air conditioning and heated seats, driver information modules, and body and chassis systems. Its compact design suits space-critical installations while maintaining connection integrity.

TE Connectivity's MULTILOCK 040 II series is recognized for miniature high-density connectors ideal for wire-to-wire and wire-to-board signal transfer solutions, making them suitable beyond automotive use in varied industrial and commercial electronic applications.

Compact design for space saving in automotive and industrial PCB setups. Durable thermoplastic housing with solder termination for reliable assembly. 12-contact, 2-row configuration with 2.5 mm pitch for high density connections.

Integral double locking system prevents contact dislodgement. Brass contacts with tin plating ensure conductivity and longevity. Right-angle through-hole mount facilitates flexible PCB layouts. Operating temperature range from -55°C to 105°C.

Rated for 250V applications. Compliant with RoHS standards. Widely used in automotive powertrain, safety, and convenience systems. Explore our comprehensive range of PCB Sockets and automotive connectors at EnvMart for superior quality and reliability in your electronics projects and manufacturing.
