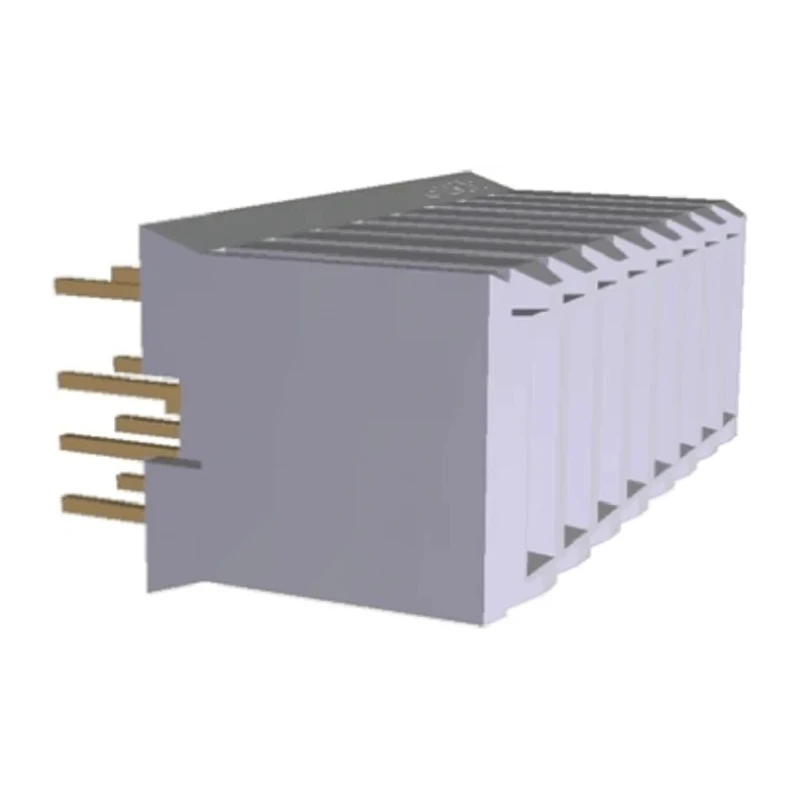

TE Connectivity Z-PACK HM Series Straight Through Hole PCB Socket, 8-Contact, 1 Row, 1.5 mm Pitch, 16A, 250V 120953-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 16A |
| Model | 120953-5 |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Copper |
| Series | Z-PACK HM |
| Termination Type | Solder |
| Maximum Operating Temperature | 110°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 1.5mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Supports a continuous current rating of 16A and voltage rating of 250V.
- Housing made of durable polyester material suitable for through-hole mounting.
- Features female copper contacts with tin plating ensuring reliable electrical performance.
- Operates within a temperature range of -65°C to 110°C for versatile industrial use.
- Straight orientation facilitates easy solder termination on printed circuit boards.
- Compliant with the Z-PACK HM series for standardized modular board-to-board connections.
- Ideal for electronics manufacturing, industrial, and laboratory equipment applications requiring robust PCB connections.
Product Description
TE Connectivity 120953-5 Z-PACK HM Series Straight Through Hole PCB Socket is an 8-contact, single row connector with a 1.5 mm pitch, designed for board-to-board interfacing and reliable solder mounting. Rated for 16A current and 250V voltage, this socket supports high-performance and durable electrical connections in demanding industrial environments.
The socket housing is made from polyester, providing strength and stability for through-hole mounting on printed circuit boards. It incorporates female copper contacts plated with tin, ensuring excellent conductivity and corrosion resistance. The straight orientation allows for efficient assembly and manufacturing integration.
Operating across a broad temperature range from -65°C to 110°C, the Z-PACK HM Series socket is suitable for varied industrial and electronic applications, including control systems, power modules, and automation equipment. Its compliance with TE Connectivity's Z-PACK HM series guarantees modular compatibility in multi-board setups.
This product is a vital component in the electronics industry for creating secure and consistent connections between daughterboards and motherboards, backplanes, and backpanels. Its proven design reduces production downtime and improves system reliability.
Supports 16A current and 250V voltage ratings for demanding PCB applications. Durable polyester housing engineered for through-hole solder mounting. Female copper contacts plated with tin for enhanced conductivity and corrosion resistance.
Wide operational temperature range from -65°C up to 110°C. Straight connector orientation for streamlined PCB assembly. Compatible with Z-PACK HM series modular board-to-board systems. Widely used in industrial, laboratory, and electronic manufacturing processes.
Explore more in the PCB Socket category on EnvMart for compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a continuous current rating of 16A and a voltage rating of 250V.
The pitch size of this socket is 1.5 mm.
It is designed for through-hole mounting on printed circuit boards.
The housing is made from durable polyester, and it features female copper contacts plated with tin for enhanced conductivity.
It operates within a temperature range of -65°C to 110°C.
This socket has 8 contacts arranged in a single row.
The connector has a straight orientation, facilitating easy solder termination on PCBs.
Yes, it is compliant with the Z-PACK HM series for standardized modular board-to-board connections.
This model utilizes solder termination for secure connections.
It is suitable for various applications, including electronics manufacturing, industrial, and laboratory equipment.
The contact gender of this socket is female.
The country of origin for this socket is India.
