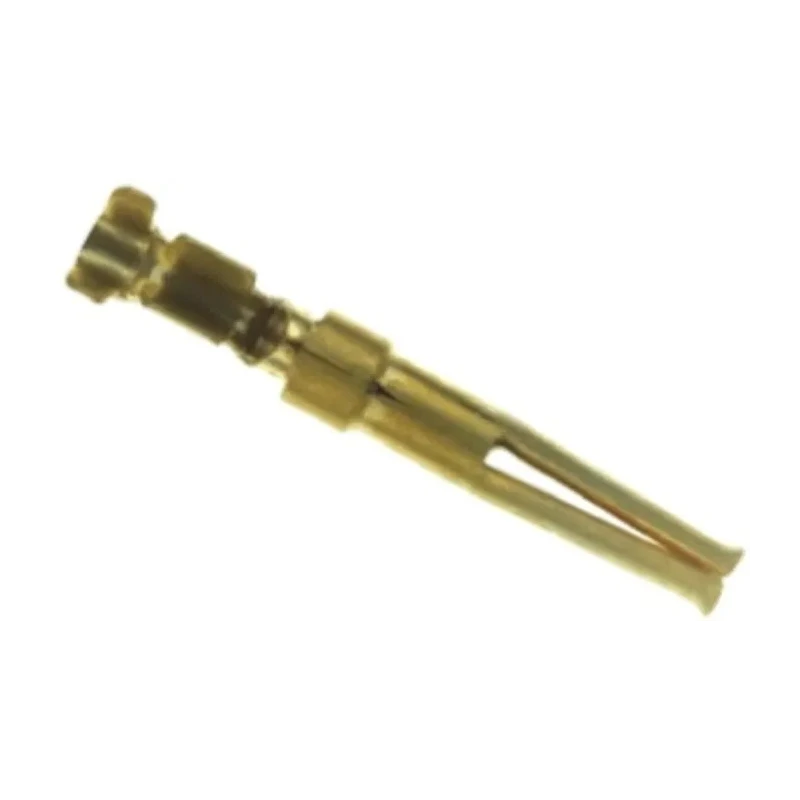

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel Signal 22 AWG 745253-6
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 1.2A |
| Length | 14.35mm |
| Model | 745253-6 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HDP-20 |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.15mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
| • Pin diameter | 0.04 (1.02) |
Key Features
- Constructed from phosphor bronze for durability and reliable performance.
- Designed for crimp termination with compatibility for 22 AWG wire size.
- Gold over nickel plating reduces contact resistance and enhances corrosion resistance.
- Supports maximum current of 1.2A suitable for signal transmission.
- Compatible with AMPLIMITE HDP-20 series connectors ensuring system compatibility.
- Features a maximum contact resistance of 15 milliohms for efficient signal integrity.
- Manufactured in the United States maintaining quality standards.
Product Description
TE Connectivity 745253-6 is a high-quality HDP-20 series size 20 female crimp D-Sub Connector Contact designed for reliable signal transmission in electronic applications. Made from phosphor bronze with gold over nickel plating, this contact ensures low resistance and enhanced corrosion protection for long-lasting service life.
The contact is designed for crimp termination suitable for wire sizes from 26 AWG to 22 AWG and supports a maximum current of 1.2 amperes, making it ideal for signal-level connections. Its 14.35mm length is engineered specifically for use with the AMPLIMITE D-Sub connector system, providing secure and precise connectivity.
This product is suitable for use in industrial electronics, manufacturing equipment, telecommunications, and computing hardware where robust and dependable signal contacts are required. The gold plating reduces signal loss and prevents oxidation, maintaining contact reliability over time even in demanding environments.
The HDP-20 series contacts are compatible with various crimp tooling such as the TE Connectivity 446-816 crimp tool and 446-822 insertion/extraction tool, facilitating efficient assembly and maintenance.
Phosphor bronze contact material ensures excellent mechanical strength. Gold over nickel plating offers superior conductivity and corrosion resistance. Size 20 contact with precise 14.35mm length for AMPLIMITE D-Sub connectors.
Supports crimp termination for wires between 26 AWG and 22 AWG sizes. Maximum contact resistance is 15 milliohms enhancing electrical performance. Rated current up to 1.2A suitable for signal connections. Manufactured in the United States ensuring quality and compliance.
This product is an essential component in electronic and industrial connector assemblies requiring durable and efficient signal contacts. Explore more TE Connectivity products at EnvMart for a comprehensive range of connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector contact is 1.2A, making it suitable for signal-level connections.
This contact is designed for crimp termination and is compatible with wire sizes ranging from 26 AWG to 22 AWG.
The length of this connector contact is 14.35mm, specifically designed for use with the AMPLIMITE D-Sub connector system.
The contact is constructed from phosphor bronze, which provides excellent mechanical strength and reliability.
This connector contact features gold over nickel plating, which reduces contact resistance and enhances corrosion resistance.
The maximum contact resistance for this model is 15 milliohms, which helps maintain efficient signal integrity.
This contact is compatible with various crimp tooling, including the TE Connectivity 446-816 crimp tool and the 446-822 insertion/extraction tool.
This connector contact is female, designed for secure connectivity in electronic applications.
This product is manufactured in the United States, ensuring compliance with quality standards.
The contact type of this connector is signal, making it suitable for electronic applications requiring reliable signal transmission.
The pin diameter for this connector contact is 0.04 inches (1.02 mm).
This connector contact is suitable for use in industrial electronics, manufacturing equipment, telecommunications, and computing hardware.
