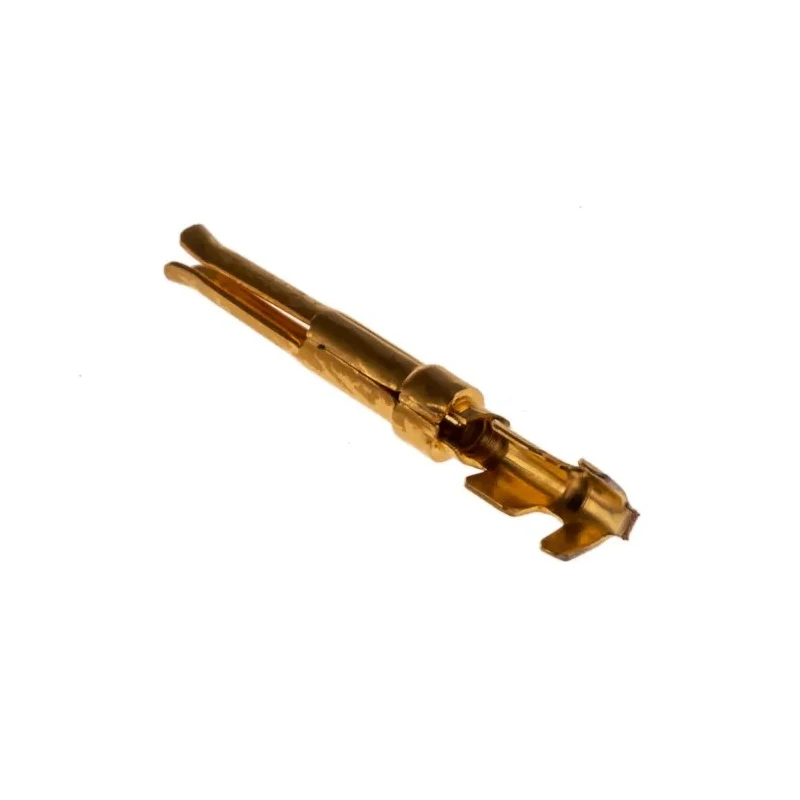

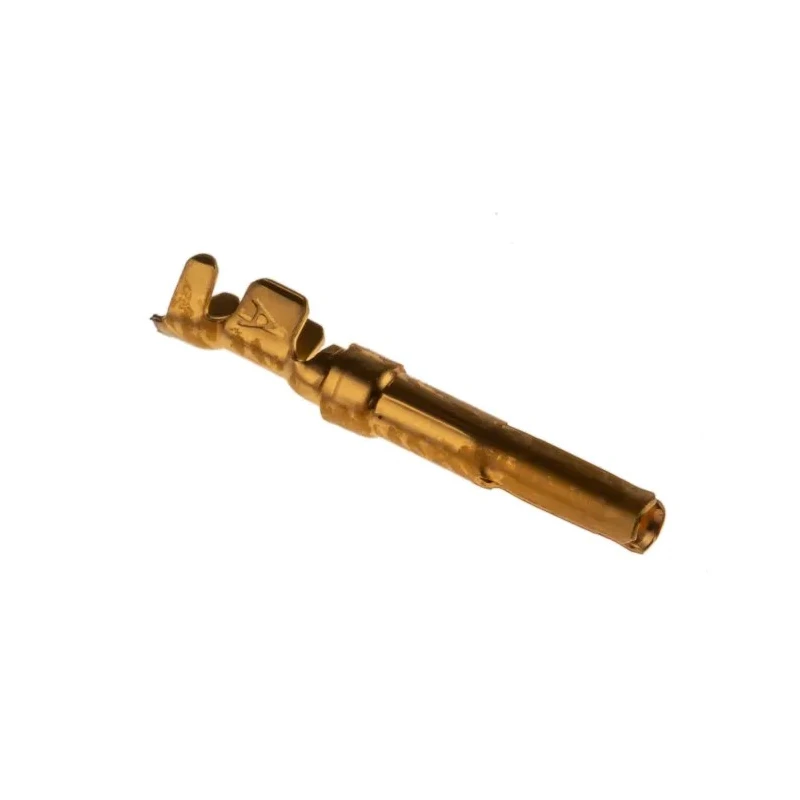

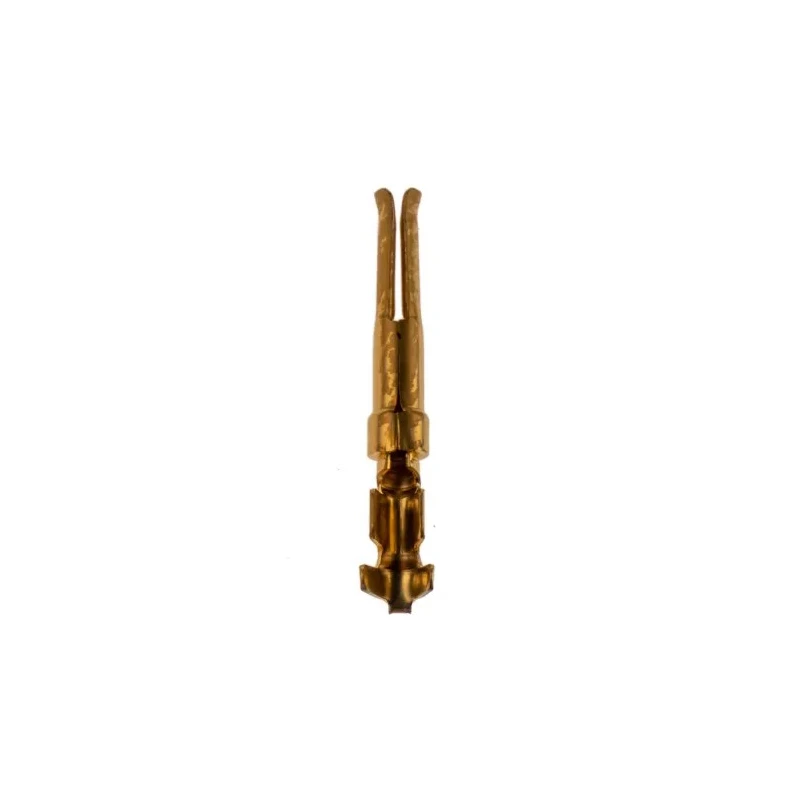

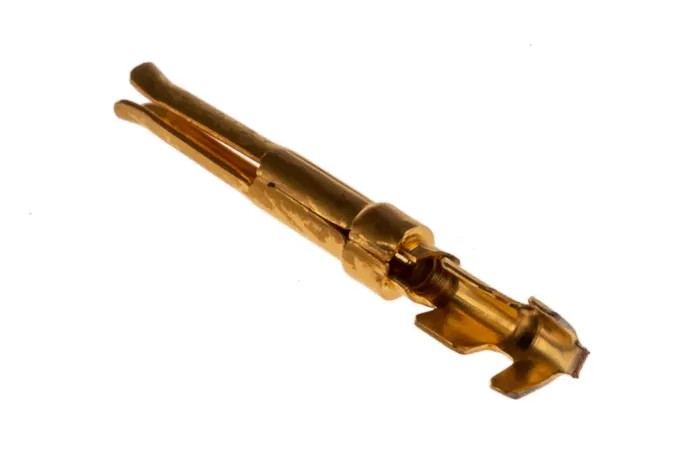

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold over Nickel 20 AWG 66504-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3.7A |
| Length | 14.1mm |
| Model | 66504-3 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HDP-20 |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
| • Pin diameter | 0.04 (1.02) |
Key Features
- Constructed with phosphor bronze contact material for strength and conductivity.
- Gold over nickel plating ensures corrosion resistance and signal integrity.
- Rated for a maximum current of 3.7A suitable for various electronic applications.
- Compatible with wire sizes from 24 AWG to 20 AWG (0.2 mm² to 0.6 mm²).
- Contact length measures 14.1 mm, optimized for AMPLIMITE HDP-20 series connectors.
- Termination type is crimp, enabling secure and reliable wire connections.
- Contact resistance is low at a maximum of 15 mΩ to maintain efficient signal flow.
- Pin diameter is 0.04 inch (1.02 mm) for precise connector fitment.
Product Description
TE Connectivity 66504-3 Female Crimp D-Sub Connector Contact from the AMPLIMITE HDP-20 Series is engineered for reliable signal transmission in industrial and electronic equipment. This contact is made with phosphor bronze for mechanical endurance and excellent electrical conductivity, further enhanced by gold over nickel plating to resist corrosion and ensure durable performance in demanding environments.
The contact supports wire sizes ranging from 24 AWG to 20 AWG, accommodating common signal wiring requirements with a current rating up to 3.7A. Its 14.1 mm length and crimp termination style provide secure assembly within AMPLIMITE D-Sub connectors, widely used in communication, computing, and industrial control systems.
Low maximum contact resistance of 15 mΩ ensures efficient signal integrity, making it ideal for high-quality electronic connections. The 0.04 inch (1.02 mm) pin diameter is precisely designed for easy mating with compatible connector housings, optimizing electrical contact reliability.
This contact does not require any specific safety approvals but is built to meet robust construction standards suitable for various industrial, laboratory, and manufacturing scenarios. Typical applications include use in data communication equipment, instrumentation, and control panel wiring.
Constructed with phosphor bronze contact material for strength and conductivity. Gold over nickel plating ensures corrosion resistance and signal integrity. Rated for a maximum current of 3.7A suitable for various electronic applications.
Compatible with wire sizes from 24 AWG to 20 AWG (0.2 mm² to 0.6 mm²). Contact length measures 14.1 mm, optimized for AMPLIMITE HDP-20 series connectors. Termination type is crimp, enabling secure and reliable wire connections.
Contact resistance is low at a maximum of 15 mΩ to maintain efficient signal flow. Pin diameter is 0.04 inch (1.02 mm) for precise connector fitment. Designed for use with AMPLIMITE D-Sub connector system for compatibility.
Explore the complete range of TE Connectivity connectors and components at EnvMart to meet diverse industrial and electronic application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector contact is 3.7A.
This model is compatible with wire sizes ranging from 24 AWG to 20 AWG (0.2 mm² to 0.6 mm²).
The contact length measures 14.1 mm, optimized for AMPLIMITE HDP-20 series connectors.
This connector contact uses a crimp termination type, enabling secure and reliable wire connections.
The maximum contact resistance for this connector is 15 mΩ, which helps maintain efficient signal flow.
The contact is constructed with phosphor bronze for strength and conductivity, and features gold over nickel plating for corrosion resistance.
The pin diameter of this connector contact is 0.04 inch (1.02 mm), designed for precise connector fitment.
The product is manufactured in India.
This connector contact is suitable for various electronic applications, including data communication equipment and control panel wiring.
This contact is designed for use with the AMPLIMITE D-Sub connector system, ensuring compatibility.
The contact type of this connector is signal, suitable for reliable signal transmission.
This connector contact belongs to the AMPLIMITE HDP-20 Series.
