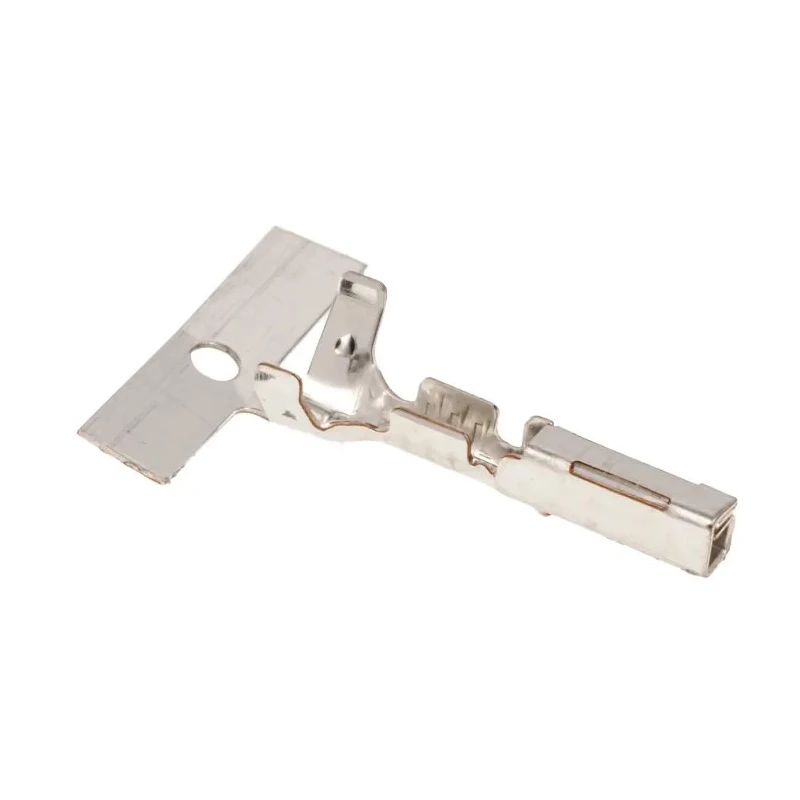

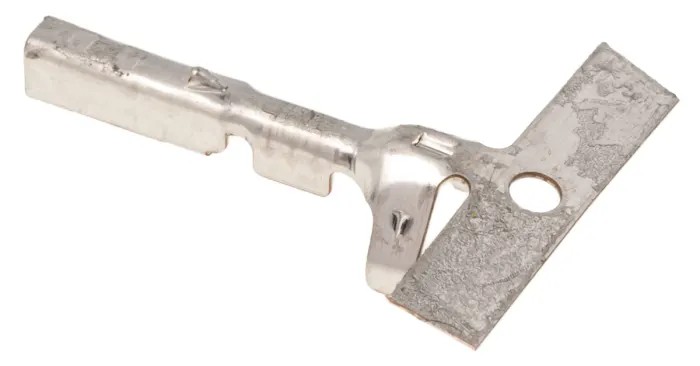

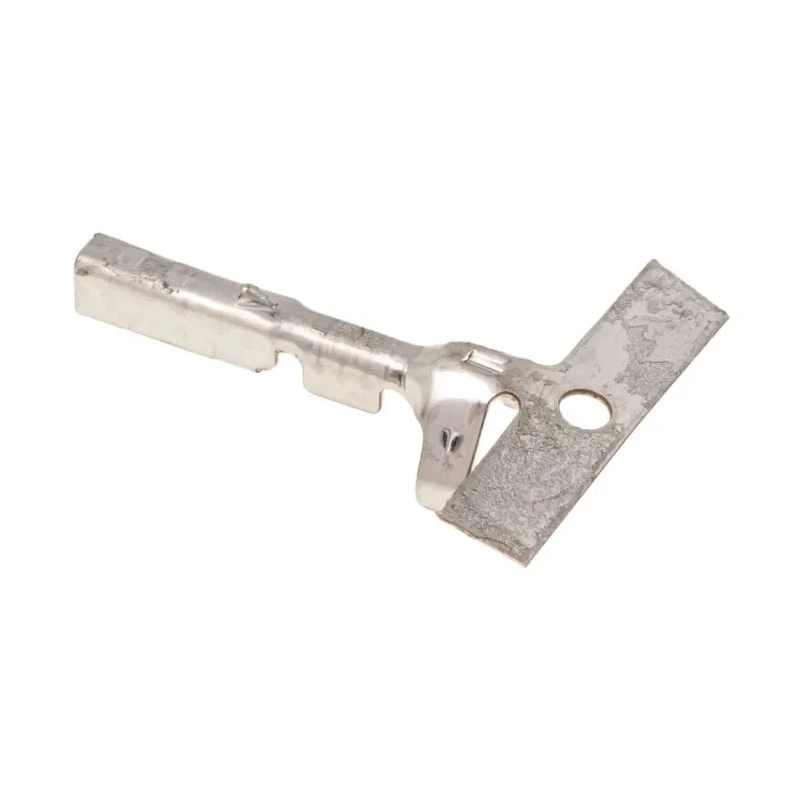

TE Connectivity MULTILOCK 040 Series Female Crimp Terminal, Tin Plated Phosphor Bronze, 5A, 22-20 AWG, 14.2mm Length 173681-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Current | 5A |
| Length | 14.2mm |
| Model | 173681-1 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Current Rating | 15A |
| Series | MULTILOCK 040 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 040 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Constructed from phosphor bronze with tin plating for corrosion resistance.
- Designed for use with MULTILOCK 040 connector housing.
- Features crimp termination type suitable for automation and industrial applications.
- Operating temperature range from -30°C to 105°C for durability in varied environments.
- Provides low contact resistance and solid mechanical snap-in fixing in connector cavities.
- Compact length of 14.2mm optimizes cable assembly sizes.
- Snap-in crimp contacts ensure secure cable connections in high-density setups.
- Ideal for automotive, manufacturing, and electronic component wiring needs.
Product Description
TE Connectivity 173681-1 MULTILOCK 040 Series female crimp terminal offers a precise wire-to-wire and wire-to-board connection with current carrying capability of 5 Amps. Manufactured from phosphor bronze contact material and plated with tin, it ensures reliable electrical performance and resistance to corrosion.
Designed specifically for use with MULTILOCK 040 connector housing, this crimp terminal supports wire sizes from 22 AWG (0.3 mm²) minimum up to 20 AWG (0.6 mm²) maximum. The crimp termination type and snap-in fixing allow for fast and secure assembly in cable and connector systems, commonly found in automation, manufacturing, and automotive industries.
This terminal maintains low contact resistance with a maximum of 20 milliohms and withstands operating temperatures from -30°C to 105°C, making it suitable for industrial and harsh operational environments. Its compact length of 14.2mm enables use in space-constrained applications with 2.5mm contact centers in high-density connector systems.
TE Connectivity MULTILOCK connectors and contacts series provide a versatile and robust solution for signal transfer and power cabling, supporting both female and male contact types with reliable snap-in mechanisms.
Constructed of phosphor bronze with tin contact plating for durability. Supports wire sizes 22 to 20 AWG, rated for 5 Amps maximum current. Crimp termination type with snap-in fixing for easy installation. Compact 14.2mm length suitable for high-density connector assemblies.
Reliable electrical and mechanical performance in industrial and automotive applications.
This MULTILOCK 040 series female crimp terminal is ideal for electronic components, power connectors, and PCB wiring assemblies, offering consistent quality from TE Connectivity. Explore more connector solutions in the Electronics Components category at EnvMart.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current carrying capability of 5 Amps.
It supports wire sizes from 22 AWG (0.3 mm²) minimum up to 20 AWG (0.6 mm²) maximum.
The operating temperature range is from -30°C to 105°C, making it suitable for various environments.
The contact material is phosphor bronze, which is plated with tin for corrosion resistance.
The compact length of this terminal is 14.2mm, optimizing cable assembly sizes.
It features a crimp termination type, which allows for fast and secure assembly in cable and connector systems.
The maximum contact resistance is 20 milliohms, ensuring reliable electrical performance.
It is specifically designed for use with MULTILOCK 040 connector housing.
It is ideal for automotive, manufacturing, and electronic component wiring needs.
The snap-in fixing allows for secure cable connections in high-density setups, facilitating easy installation.
The country of origin for this terminal is India.
The low-level resistance is a maximum of 10 milliohms initially, ensuring effective performance.
