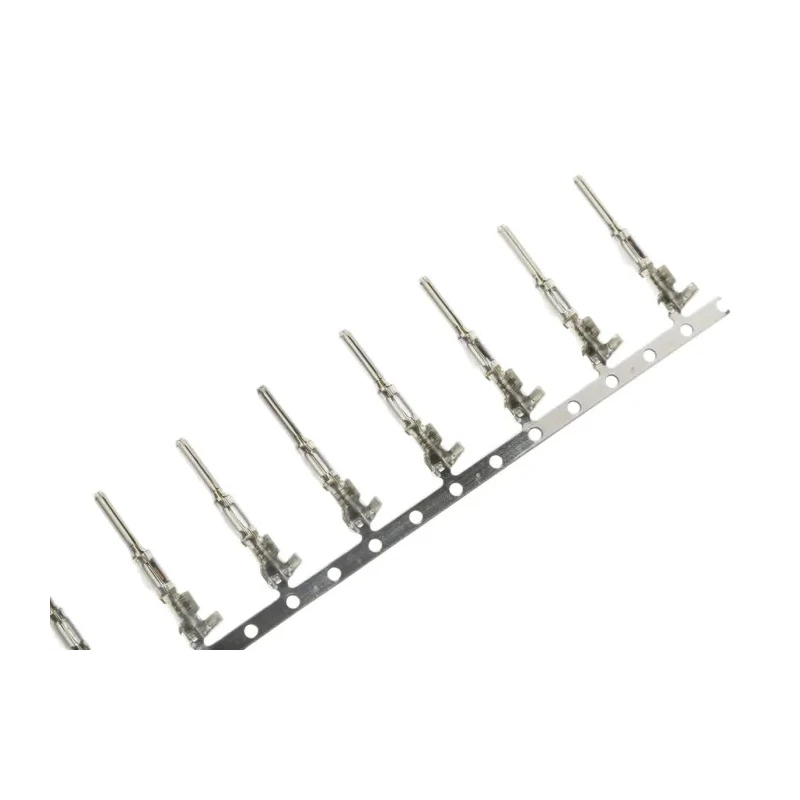

TE Connectivity MULTILOCK 070 Series Male Crimp Terminal 4A Current 20 AWG Min, 16 AWG Max 150°C 16mm Length 173645-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Current | 4A |
| Length | 16mm |
| Model | 173645-1 |
| Gender | Male |
| Contact Material | Brass |
| Current Rating | 15A |
| Series | MULTILOCK 070 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 070 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Designed for MULTILOCK 070 connector housing with male contact gender.
- Supports a continuous current rating of 4A and withstands temperatures up to 150 degrees Celsius.
- Constructed with brass contact material and tin plating for durability and conductivity.
- Features crimp termination type providing solid mechanical and electrical connection.
- Suitable for operating temperature range from minus 30 to 150 degrees Celsius in various industrial applications.
- Compact 16mm length ensures space-efficient connector assemblies.
- Ideal for automation and signal transfer applications requiring high-density connectors.
Product Description
TE Connectivity 173645-1 MULTILOCK 070 Series Male Crimp Terminal is a precision-engineered connector contact designed for the MULTILOCK 070 connector housing. It features a male contact configuration and supports wire sizes from 20 AWG (0.5 mm²) to 16 AWG (1.25 mm²), providing versatility for various electronic cabling requirements. With a current rating of 4 amps and robust brass contact material plated with tin, this crimp terminal ensures reliable electrical performance and resistance to corrosion.
This crimp terminal offers a termination type that utilizes crimping, delivering strong mechanical retention and excellent conductivity. It operates efficiently within a temperature range of -30°C to 150°C, making it suitable for demanding industrial environments, including automotive, automation, and power connector applications.
The MULTILOCK 070 Series is known for its snap-in fixing connector cavities, facilitating easy assembly in wire-to-wire or wire-to-board configurations. The compact 16mm length of this terminal supports compact designs that require high-density connectivity.
Commonly used in industrial automation and electronic component manufacturing, this crimp contact helps maintain signal integrity while providing durability under thermal and environmental stresses.
Designed for MULTILOCK 070 connector housing with male gender contacts. Compatible with 20 AWG to 16 AWG wire sizes for broad application range. Current rating up to 4 amps to support electrical load requirements. Contact plating of tin over brass ensures corrosion resistance and conductivity.
Crimp termination provides robust mechanical and electrical connections. Operating temperature from -30°C to 150°C suitable for harsh environments. Length of 16mm allows for compact connector assemblies.
This crimp terminal is ideal for use in electronics manufacturing, automotive wiring harnesses, and industrial automation systems, providing dependable electrical connections in complex assemblies.
Explore more TE Connectivity connectors and Crimp Contacts on EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a continuous current rating of 4A.
It operates efficiently within a temperature range of -30°C to 150°C.
This terminal is compatible with wire sizes from 20 AWG (0.5 mm²) to 16 AWG (1.25 mm²).
The length of this terminal is 16mm, allowing for compact connector assemblies.
It utilizes a crimp termination type, providing strong mechanical retention and excellent conductivity.
The contact is constructed from brass and is plated with tin for enhanced conductivity and corrosion resistance.
It is commonly used in industrial automation, automotive wiring harnesses, and electronic component manufacturing.
The maximum operating temperature for this crimp terminal is 150°C.
The low-level resistance is specified to be a maximum of 10 mΩ initially.
The overall resistance is limited to a maximum of 20 mΩ final.
This model features a male contact configuration, designed for use with MULTILOCK 070 connector housings.
The country of origin for this crimp terminal is India.
