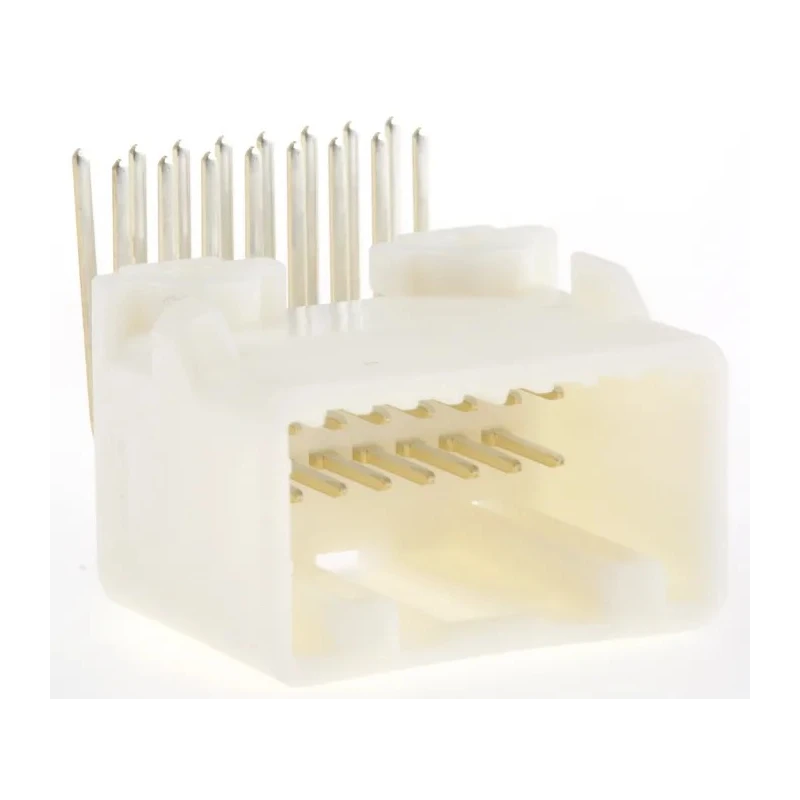

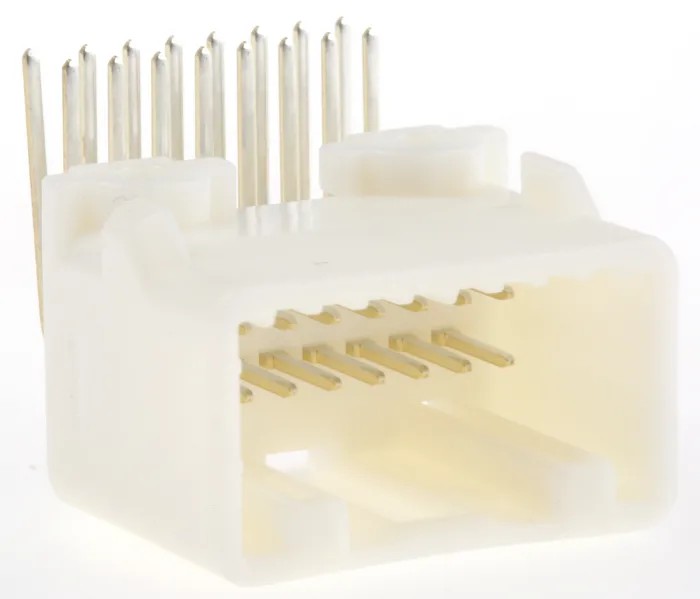

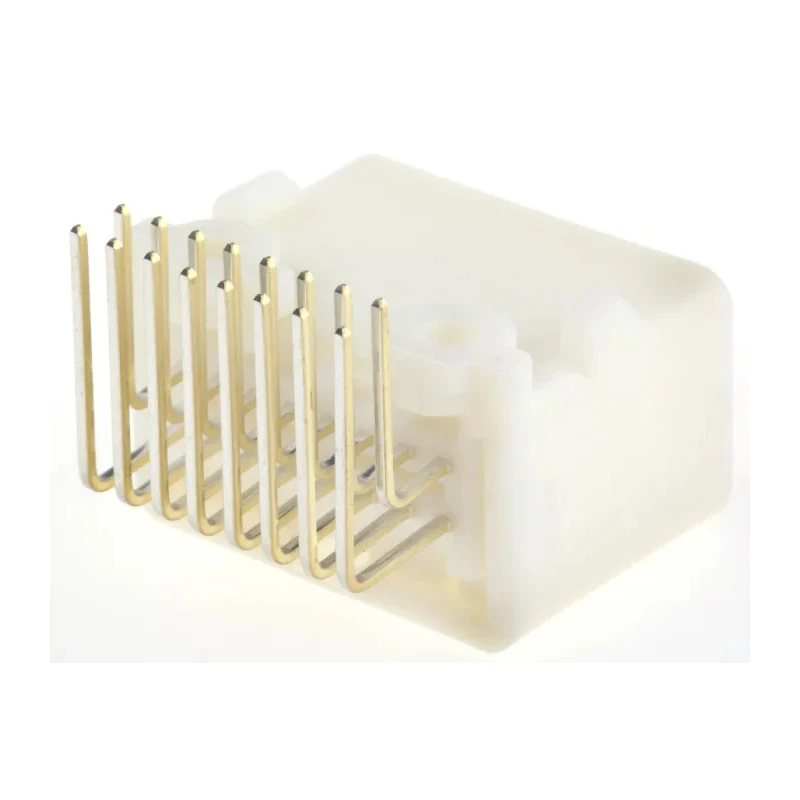

TE Connectivity MULTILOCK 025 Series Right Angle Through Hole PCB Socket, 16-Contact, 2 Row, 2.2 mm Pitch 1318382-2

TE Connectivity 1318382-2 MULTILOCK 025 Series Right Angle Through Hole PCB Socket is a high-performance connector designed specifically for demanding electronic applications requiring compact, secure, and reliable board-to-board connections. This PCB Socket features 16 contacts arranged in 2 rows, with a fine 2.2 mm pitch to accommodate high density mounting solutions.

The connector's right angle orientation and through hole mount type make it particularly suitable for automotive, industrial, and electronic manufacturing applications where space constraints and durability are critical. The housing is constructed from liquid crystal polymer, offering excellent mechanical strength and temperature resistance from -30°C to 125°C, making it robust for various operating environments.

Contacts are brass with gold plating, ensuring low resistance and high reliability against corrosion and wear. The connector system includes board fixation screws that secure the socket firmly to the PCB, reducing the risk of disconnection or damage due to vibration or mechanical stress.

Typically, these connectors find usage in automotive safety and security systems, including airbag ECU, body controller management, driver information systems, multimedia applications, display screens, mirroring devices, and dashboard assemblies. The compact design and color-coded housings streamline installation and maintenance processes.

This MULTILOCK 025 series is widely recognized in automotive and industrial electronics for enabling high-density, low-mating force, and fretting corrosion resistant connections. The series includes various configurations such as PCB headers, receptacle housings, tab housings, and contacts, making it highly versatile.

The connector features a right angle orientation suitable for board-to-board connections. Contacts are made from brass with gold plating to ensure reliable conductivity. The housing is manufactured from durable liquid crystal polymer.

Suitable for operating temperatures from -30°C up to 125°C. Termination is via a solder mount type ensuring stable attachment to the PCB. The series is designed for automotive safety, security, and convenience systems. Colour coded housings aid in easy identification during assembly.

Board fixation screws provide secure mechanical connection to the PCB. Compact 2.2 mm pitch enables high-density mounting in limited space applications. Explore more high-quality PCB connectors and related components from TE Connectivity on EnvMart for your industrial and commercial applications.
