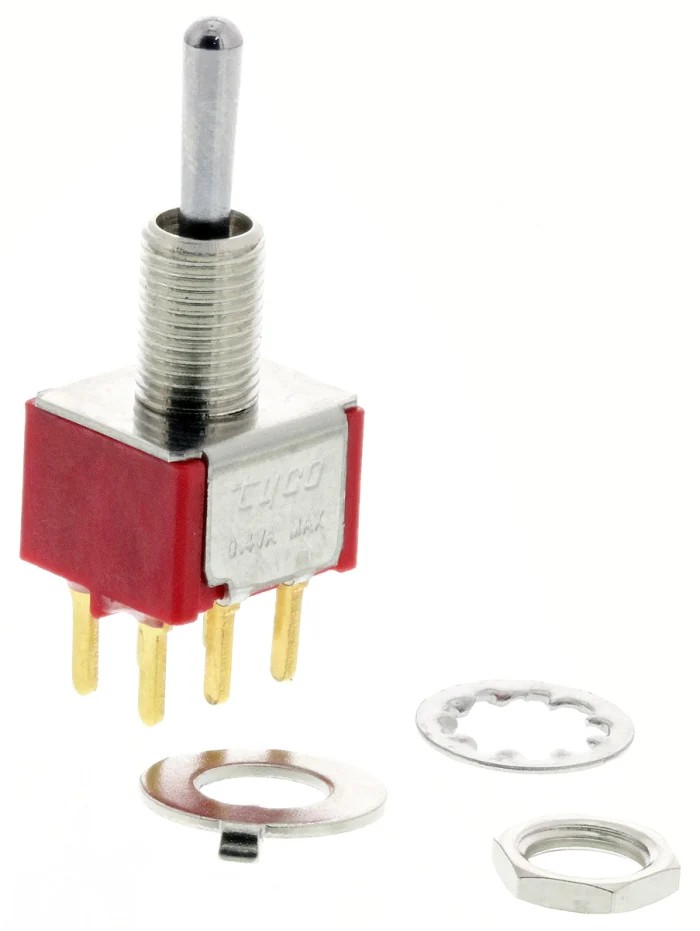

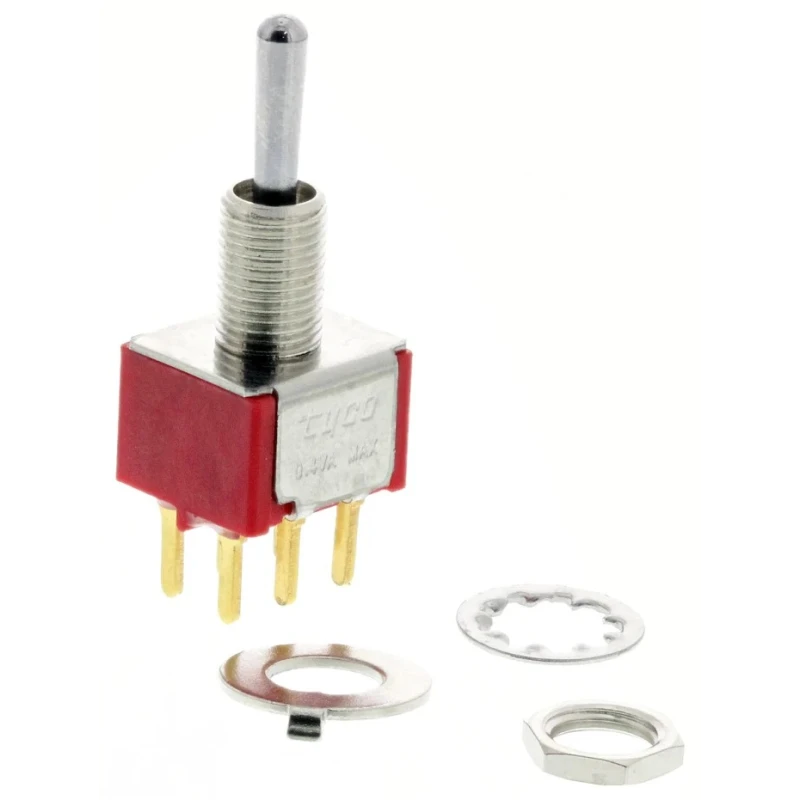

TE Connectivity Toggle Switch PCB Mount On-Off-On DPDT Switch 28 V dc 115 V ac 1-1825139-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.45in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Designed with a PCB mount for easy integration into electronic circuits.
- Features an On-Off-On switch operation suitable for dual switching functions.
- DPDT contact configuration supports double-pole, double-throw switching.
- Solder type terminals ensure reliable electrical connection.
- Robust phenolic actuator material for durability and performance.
- Rated for 400mA contact current, supporting moderate loads.
- IP67 rating offers protection against dust and temporary water immersion.
- Operates reliably from -30°C to 85°C, suitable for varied environments.
Product Description
TE Connectivity 1-1825139-6 Toggle Switch is a high-quality PCB mount switch designed for On-Off-On operation with a DPDT contact configuration. Rated for 28 V dc and 115 V ac, this product is engineered for reliable electrical switching in various industrial, electronic, and automation applications.
The switch features solder terminal type connections, allowing straightforward PCB assembly, and is constructed with a phenolic actuator to ensure durability and long service life. It supports a contact current of 400mA, suitable for moderate power circuits.
With an IP67 ingress protection rating, this toggle switch is dust-tight and resistant to water immersion, making it ideal for demanding industrial environments. It operates effectively within a temperature range of -30°C to 85°C, ensuring reliable performance in both cold and hot conditions.
The compact form factor, including a panel cutout size of 6.35 mm and actuator length of 10.41 mm, facilitates easy mounting and integration in assembly designs. The stainless steel frame with brass tin-plated solder support enhances mechanical strength and corrosion resistance. Epoxy sealed terminals provide further protection against environmental factors.
This toggle switch belongs to the Gemini A series, known for robust construction and compliance with RoHS standards for hazardous substances. PCB mount suitable for printed circuit board applications. On-Off-On DPDT switch configuration for versatile control.
Solder terminals provide strong electrical and mechanical connections. Phenolic actuator ensures durability and reliable switching. IP67 rating provides dust and water resistance for harsh conditions. Operating temperature range from -30°C to 85°C supports diverse environments.
Compact size with specific dimensions for efficient panel mounting. Epoxy sealed terminals and stainless steel frame for high durability. Meets RoHS standards, compliant with environmental regulations.
Ideal for industrial automation, electronics manufacturing, and control systems where reliable switching is critical. Browse our extensive category of Toggle Switches for similar high-performance components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double-Pole, Double-Throw) contact configuration, allowing for versatile switching functions.
The maximum operating temperature for this toggle switch is 85°C, making it suitable for various environments.
It uses solder type terminals, which provide reliable electrical connections for PCB assembly.
This toggle switch has an IP67 rating, indicating it is dust-tight and resistant to temporary water immersion.
The switch is rated for a contact current of 400mA, making it suitable for moderate power circuits.
It operates effectively within a temperature range of -30°C to 85°C, accommodating both cold and hot conditions.
The required panel cutout size for this model is 6.35 mm, facilitating easy mounting in assembly designs.
The actuator is made from phenolic material, ensuring durability and reliable performance during operation.
This model belongs to the Gemini A series, known for its robust construction and compliance with RoHS standards.
It is rated for 28 V DC and 115 V AC, making it versatile for different electrical applications.
The actuator length for this toggle switch is 10.41 mm, which is designed for efficient operation.
The country of origin for this toggle switch is India.
