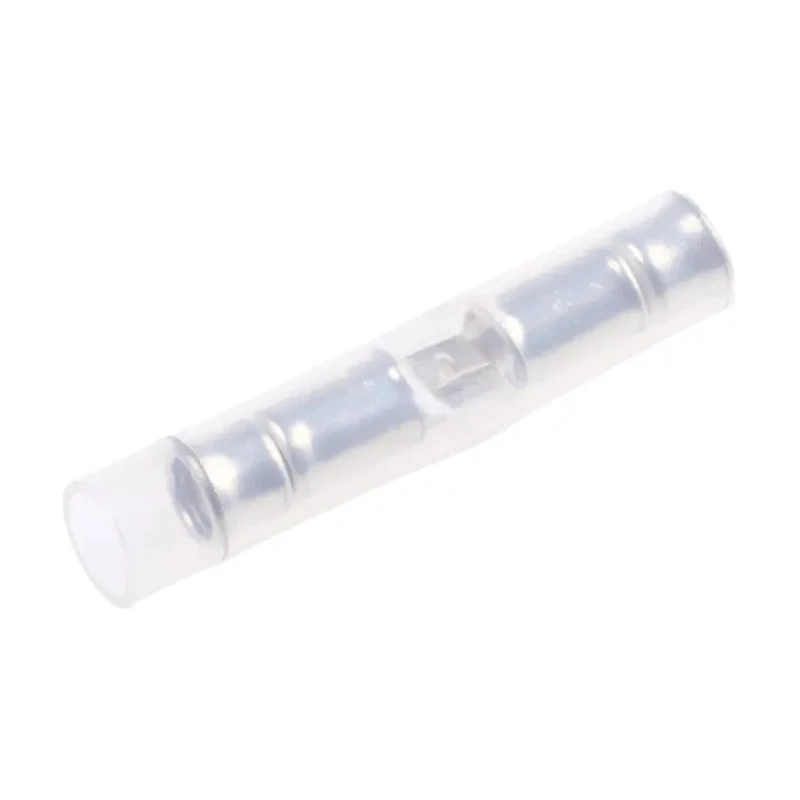

TE Connectivity PIDG Butt Splice Connector Natural Insulated, Tin 24 AWG 323975
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.54mm |
| Brand | TE Connectivity |
| Colour | Natural |
| Model | 323975 |
| Insulation | Insulated |
| Overall Length | 26.29mm |
| Contact Material | Copper |
| Series | PIDG |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 24AWG |
| Splice Type | Butt |
Key Features
- Constructed with high conductivity copper body for superior electrical performance.
- Copper sleeve enhances wire insulation support to prevent fraying and conductor breakage.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Color-coded nylon sleeves enable easy identification for wire size and tooling.
- Designed to provide uniform insulation thickness under crimping pressure for reliable, consistent crimps.
- Ideal for applications in instrumentation, control panels, power supplies, and transportation systems.
- Meets or exceeds MIL-T-7928 Type II Class 1 and 2 standards in many terminals.
- Natural color provides clear visual identification in wiring setups.
Product Description
TE Connectivity 323975 PIDG Butt Splice Connector is a premium insulated wire splice terminal designed for uniform reliability and performance with 24 AWG wires. Featuring a precision-formed high conductivity copper body and barrel, it ensures excellent electrical conductivity and mechanical stability.
The connector's copper sleeve surrounding the barrel improves wire insulation support after crimping, allowing wires to bend without damage to insulation or conductors. The color-coded nylon sleeves simplify wire size and tooling identification, reducing installation errors.
Inside the wire barrel, serrations provide maximum contact and tensile strength after crimping, essential for reliable connections in demanding environments. The specialized design allows for uniform insulation thickness under crimp pressure, ensuring consistent crimps across multiple terminals.
Typical applications for this PIDG Butt Splice Connector include instrumentation and control systems, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and household appliances. Many terminals comply with or surpass MIL-T-7928 Type II Class 1 and 2 standards, highlighting their ruggedness and reliability.
With a natural color sleeve and insulating properties, this splice connector supports clear visual identification and enhanced electrical safety. The compact 26.29mm length and 2.54mm diameter allow for use in tight spaces without sacrificing performance.
High conductivity copper body ensures excellent electrical performance. Copper sleeve boosts wire insulation support post-crimp. Serrations in wire barrel provide strong contact and tensile strength. Color-coded nylon sleeves for easy wire size and tooling identification.
Uniform insulation thickness under crimping pressure for dependable connections. Suitable for a wide range of industrial, aerospace, automotive, and appliance applications. Meets or exceeds MIL-T-7928 Type II Class 1 and 2 standards.
Natural color sleeve facilitates swift visual identification. Compact dimensions support installation in constrained spaces. Insulated design enhances safety and durability of electrical connections. Explore the extensive range of TE Connectivity products at EnvMart for reliable and high-quality electrical connectors compliant with industrial standards.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overall length of this model is 26.29 mm.
The diameter of this butt splice connector is 2.54 mm.
This model is designed for a minimum wire size of 24 AWG.
The contact material of this connector is copper, which ensures excellent electrical performance.
This connector is insulated, enhancing the safety and durability of electrical connections.
The nylon sleeve of this model is natural in color, allowing for clear visual identification in wiring setups.
It meets or exceeds MIL-T-7928 Type II Class 1 and 2 standards, ensuring reliability in demanding environments.
Typical applications include instrumentation, control panels, power supplies, and transportation systems.
The serrated wire barrel provides maximum contact and tensile strength after crimping, ensuring reliable connections.
This connector is manufactured in India.
The contact is tin plated, which enhances its conductivity and performance.
This model belongs to the PIDG series of connectors.
