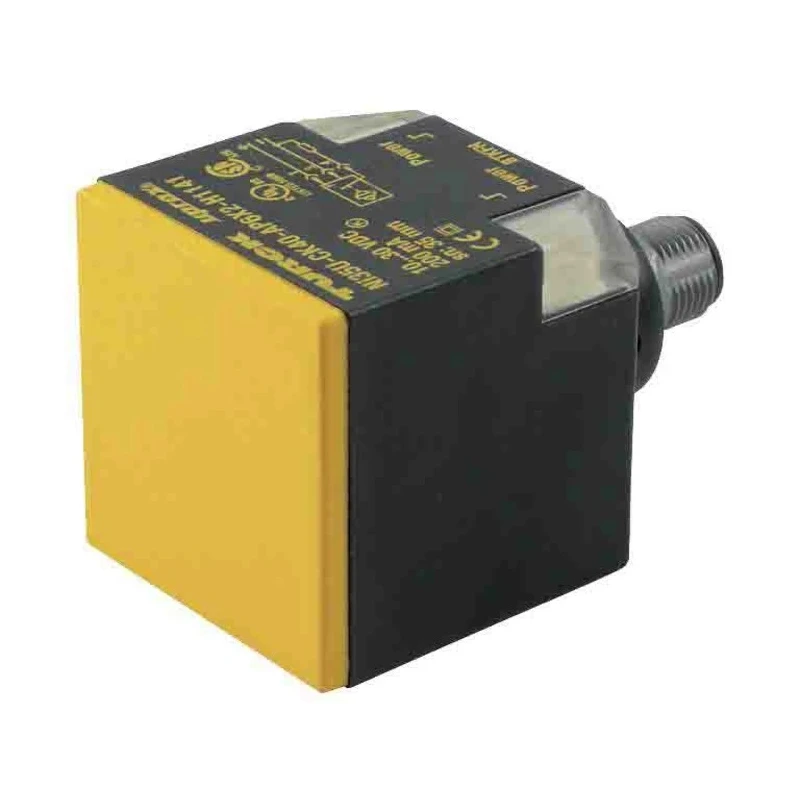

Turck Block Inductive Proximity Sensor M12 x 1 Thread, IO-Link Output, 30V DC, 50 mm Detection NI50U-CK40-IOL6X2-H1141

Turck NI50U-CK40-IOL6X2-H1141 is a block style inductive Proximity Sensor featuring M12 x 1 threaded connection and IO-Link communication for advanced industrial applications. This sensor offers precise metal detection capabilities with a maximum sensing distance of 50 mm, powered by a 30 V DC supply and supporting up to 150 mA switching current. Its robust plastic housing with IP68 protection makes it suitable for installation in demanding environments, including industrial automation, manufacturing, and process control.

The sensor's rectangular body measures 40 mm in length and depth with width of 65 mm, providing a compact yet versatile form factor. It supports flush mounting and comes equipped with high luminance corner LEDs for optimal visibility of the operating state from multiple angles. The unshielded design enhances the switching distance and ensures resistance to magnetic fields, while auto-compensation technology prevents false triggering due to environmental damping.

Configuration and communication are facilitated through the IO-Link v1.1 interface or standard digital outputs, allowing independent output settings, such as switching distance parametrization and hysteresis adjustment. Additional features include temperature monitoring with adjustable limits, various timer and pulse monitoring functions, and identification via a 32-byte memory. These capabilities make it well suited for use in automation, material handling, and quality inspection systems.

The sensor operates reliably from -25°C to 70°C and complies with RoHS standards, highlighting its environmental safety. Manufactured in Germany, it reflects top-tier engineering quality and durability, suitable for deployment in complex industrial installations.

Rectangular block body style measuring 40 mm in length and width of 65 mm. Durable IP68 rated plastic housing suitable for harsh environments. Operating voltage range of 10 to 30 V DC with maximum supply voltage of 30 V DC.

Detects metal objects at up to 50 mm distance with 150 mA switching current. Equipped with high luminance LEDs for clear supply voltage and switching status indication. Unshielded sensor enabling increased switching distance and magnetic field resistance.

Configurable switching outputs via IO-Link v1.1 and standard I/O. Wide operating temperature range from -25°C to 70°C. Flush mount type with M12 connector terminal for easy installation. Manufactured in Germany ensuring high quality and reliability.
