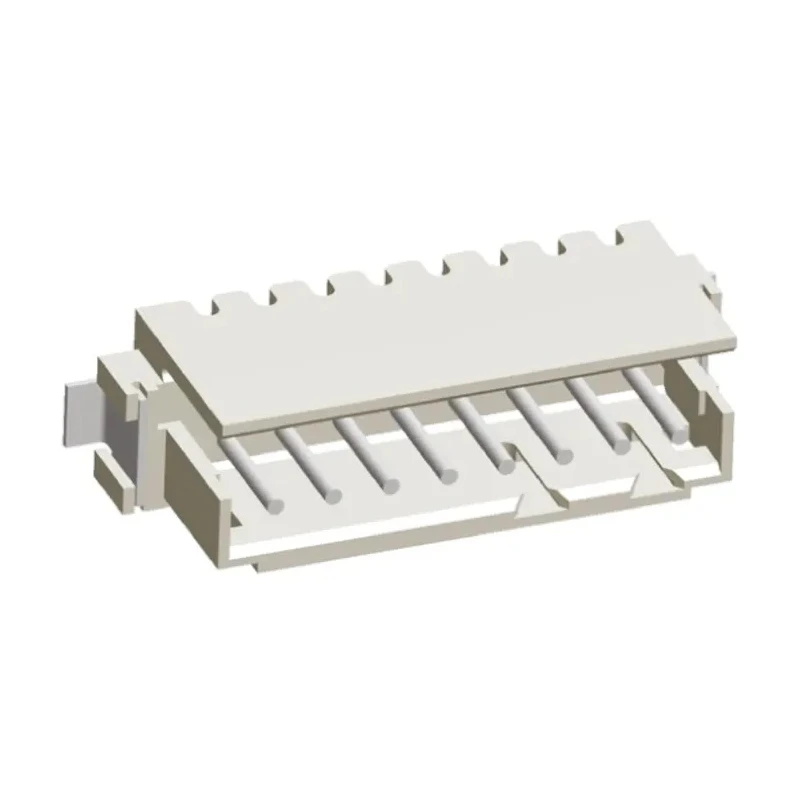

TE Connectivity AMP CT Series Straight Surface PCB Header 8 Contacts 2 mm Pitch 1 Row Shrouded 292175-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 4A |
| Model | 292175-8 |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | AMP CT |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Miniature design suitable for compact PCBs.
- Fully shrouded housing protects contacts from damage and ensures secure mating.
- Polarization features prevent incorrect connections.
- Solder tabs provide mechanical stability on the PCB.
- Constructed from durable nylon housing and brass contacts with tin plating.
- Operates reliably from -30°C to 105°C.
- Rated for 4A current and 125V voltage applications.
- Ideal for business equipment, industrial machines, PCs, printers, consumer electronics, and HVAC systems.
Product Description
TE Connectivity 292175-8 AMP CT Series Straight Surface PCB Header is a high-quality 2 mm pitch, one-row, 8-contact male header designed for wire-to-board and wire-to-wire interconnection systems. This surface mount header features a fully shrouded, miniature box-type housing made from durable nylon, protecting contacts against scooping during mating and unmating.
The header’s brass contacts with tin plating ensure excellent electrical conductivity and corrosion resistance. Its polarization and mating retention features provide accurate and secure connections with mating cable connectors. Solder tabs on either side enhance PCB attachment stability. Optionally available PCB locating bosses aid precise PCB alignment.
This connector operates reliably in temperatures from -30°C to 105°C and is rated for a current of 4A and voltage of 125V, making it suitable for demanding industrial and commercial electronic applications. The AMP CT 2 mm system is widely used in business equipment, industrial machines, personal computers, printers, consumer electronics including audio and video systems, and air conditioning units.
This product is ideal for manufacturing and repair environments requiring reliable wire harness making capability. The fully shrouded design ensures longevity and protection of contacts during repeated mating cycles. Its compact footprint supports space-saving PCB layouts.
Miniature and fully shrouded design protects connections. Polarization and mating retention features. Solder tabs for secure PCB attachment. Durable nylon housing with brass and tin-plated contacts. Temperature range from -30°C to 105°C.
4A current rating at 125V voltage. Suitable for industrial, commercial, HVAC, and electronic equipment applications. Explore the range of TE Connectivity PCB Headers at EnvMart for reliable and durable interconnection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 4A and a voltage of 125V, making it suitable for various electronic applications.
It operates reliably within a temperature range of -30°C to 105°C, suitable for demanding environments.
The housing is made from durable nylon, while the contacts are brass with tin plating, ensuring good electrical conductivity and corrosion resistance.
This PCB header features 8 contacts arranged in a single row.
The contact pitch for this header is 2mm, which is suitable for compact PCB designs.
It is fully shrouded, which protects the contacts from damage during mating and unmating.
This model uses solder termination, providing a secure connection to the PCB.
The orientation of this connector is straight, designed for easy installation on PCBs.
It is ideal for use in business equipment, industrial machines, personal computers, printers, consumer electronics, and HVAC systems.
Yes, it includes polarization features that help prevent incorrect connections during mating.
Solder tabs on either side of the header provide mechanical stability when attached to the PCB.
The country of origin for this model is India.
