Hirose FunctionMAX FX10 Series Straight Surface PCB Header 100 Contacts 0.5 mm Pitch 2 Row Shrouded

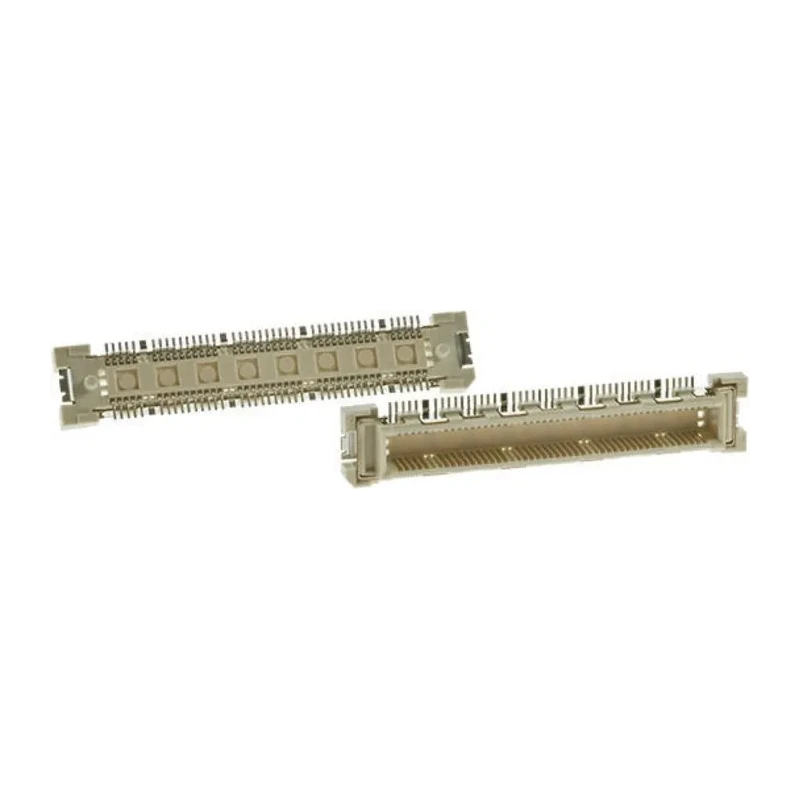

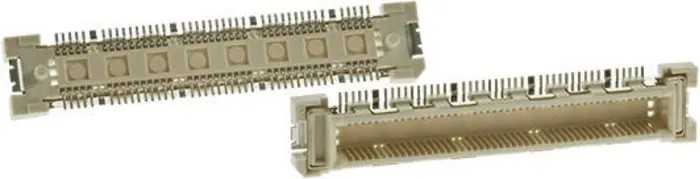

Hirose FX10A-100P/10-SV(71) FunctionMAX FX10 Series Straight Surface PCB Header with 100 contacts, 0.5 mm pitch, and 2 row shrouded configuration is engineered for high-speed, compact board-to-board connections in industrial applications.

Manufactured using liquid crystal polymer housing and phosphor bronze contacts plated with gold, this PCB header supports currents of up to 300mA and voltages up to 50V, ensuring reliable electrical performance across a wide operating temperature range from -10°C to 60°C.

The connector includes grounding plates on both sides, enhancing grounding capabilities and improving signal transmission efficiency. Metal mounting fittings increase PCB retention and solder weld strength, critical for demanding environments.

This header is designed with a 10:1 signal to ground ratio to stabilize grounding and significantly reduce crosstalk, delivering high-speed data rates exceeding 15 Gbit/s suitable for medical equipment, industrial controllers, servers, smart meters, and telecommunications such as Base Station Transceivers.

Additional features include guideposts for precise PCB alignment and a shrouded male contact design for secure mating. The compact 0.5 mm pitch facilitates high-density PCB layouts, enabling space-saving integration in various electronic modules.

High density 100 contact PCB header with 0.5 mm pitch and 2 row configuration. Shrouded, straight orientation connector for secure connection with enhanced grounding. Constructed with liquid crystal polymer housing and phosphor bronze contacts plated with gold for durability.

Supports current up to 300mA and voltage up to 50V with solder termination for PCB surface mounting. Operating temperature range from -10°C to 60°C suitable for diverse industrial environments. Features grounding plate on both sides and metal fittings for improved PCB retention and signal integrity.

Compatible with OIF 100G Long-Haul DWDM Transmission Module (MSA-100GLH) electrical interface. Designed for industrial and commercial use in medical, industrial motors, servers, measurement equipment, smart meters, and PLCs.

Guideposts enhance PCB alignment and retention; metal fittings improve durability.

This FunctionMAX FX10 series product is part of Hirose's commitment to delivering high-performance connectors that meet industrial market demands for functionality, high-speed transmission, and robust mechanical integrity.
