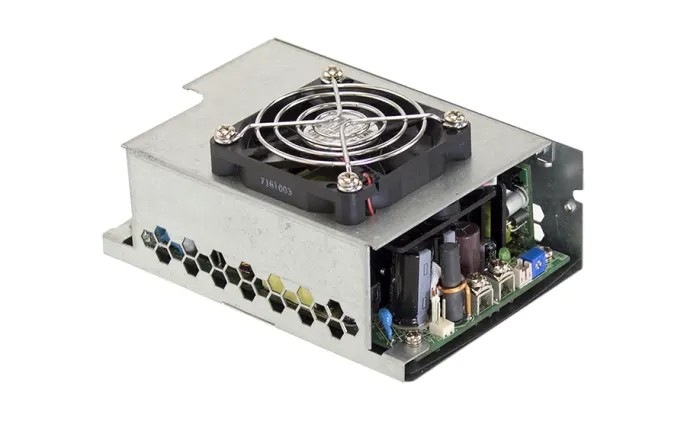

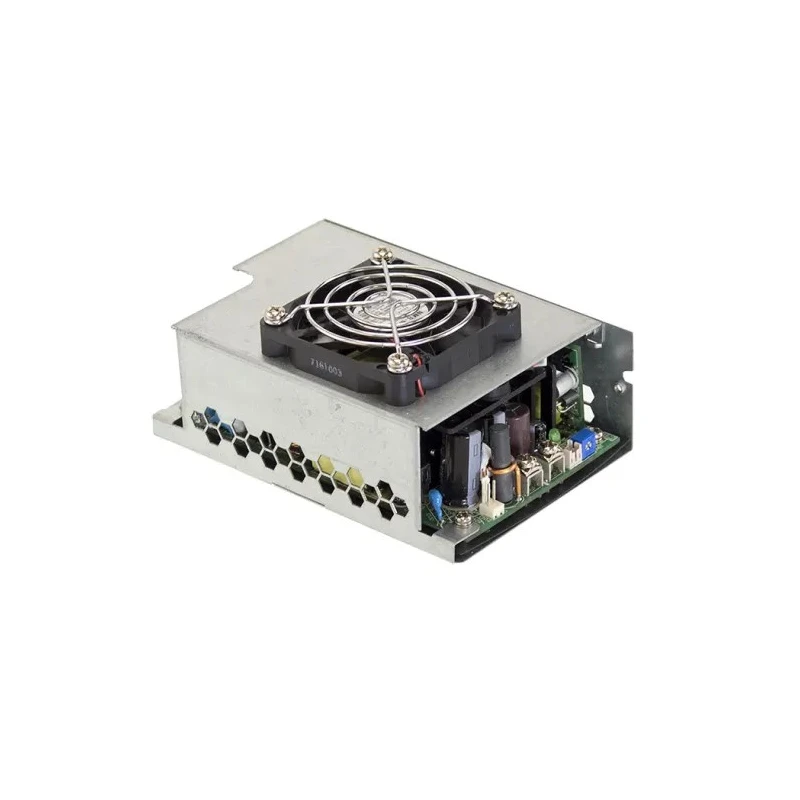

MEAN WELL High-Efficiency 499.2W Switching Power Supply 48V dc, PCB Mount RPS-500-48-TF

MEAN WELL RPS-500-48-TF is a high-performance switching power supply delivering 499.2W of continuous power with a regulated 48V DC output. This PCB mount power supply features a compact size measuring 130mm in length and 58.5mm in both width and depth, making it ideal for tight spaces in industrial and medical applications.

Designed to operate reliably within a broad input voltage range of 80 to 264V AC and a maximum input voltage of 370V DC, it supports various power applications requiring stable output currents up to 10.4A. Its wide operating temperature range from -30°C to 70°C allows deployment in environments with significant temperature fluctuations.

The RPS-500-48-TF boasts a high efficiency rating of 94%, minimizing power losses and reducing operating costs. It consumes less than 0.5W of power in standby mode, contributing to overall energy efficiency. This series complies with multiple international safety and performance standards including AS/NZS62368.1, CSA C22.2 No. 62368-1, UL 62368-1, and others.

Protection features include safeguards against short circuit, overload, overvoltage, and overtemperature conditions, enhancing system reliability and safety. With exceptionally low leakage current below 220μA, it is suitable for medical-grade applications requiring strict current leakage limits. It supports both Class I with frame ground and Class II without frame ground system designs.

Constructed for durability and consistent performance, the RPS series switching power supplies are extensively applied in industrial machines, automation, medical instrumentation, communication equipment, and laboratory electronics. The compact size, high power density, and robust protections make the RPS-500-48-TF an ideal choice for OEMs and engineers requiring dependable DC power sources.

High power density for compact and efficient design. Wide input voltage compatibility ensures versatile use. Multiple protection features for operational safety. Complies with global certification standards. Energy-saving standby mode consumption.

Medical-grade low leakage current suitable for sensitive applications. Explore a wide range of Switching Power Supplies and industrial electrical components for your projects at EnvMart.
