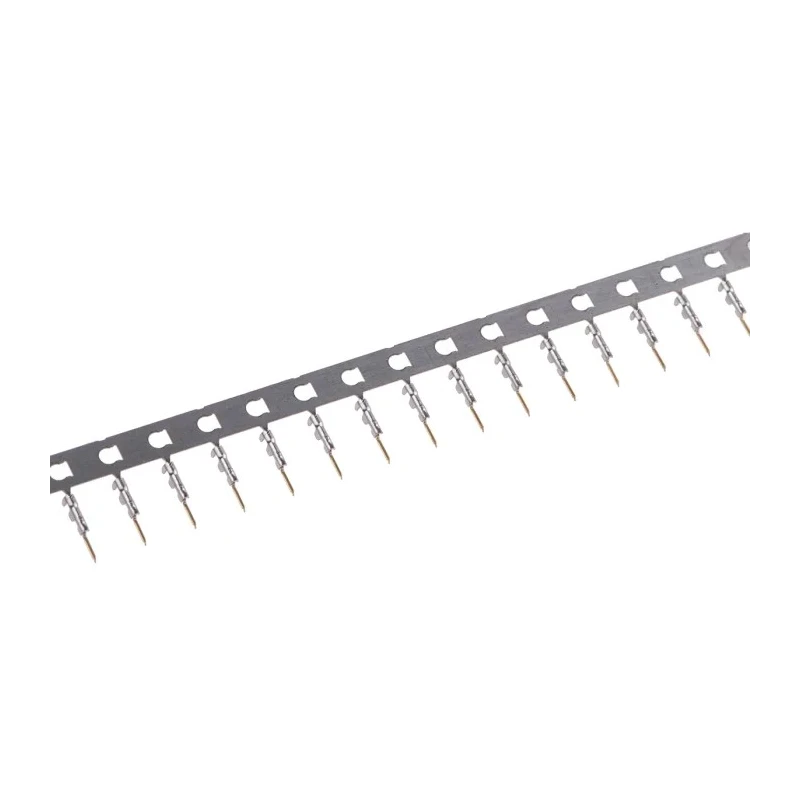

JAE FI-R Series Male Crimp Terminal, 36 AWG Minimum Wire Size, 30 AWG Maximum Wire Size, Gold Plated FI-RC3-1A-1E-15000

Free Delivery in India | Lowest Global Shipping Charges

JAE FI-R Series Male Crimp Terminal, 36 AWG Minimum Wire Size, 30 AWG Maximum Wire Size, Gold Plated FI-RC3-1A-1E-15000



Category Crimp Contacts Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Current	700mA
Model	FI-RC3-1A-1E-15000
Gender	Male
Contact Material	Phosphor Bronze
Series	FI-R
Termination Type	Crimp
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
For Use With	FI-R Connector Housing
Contact Plating	Gold
Maximum Wire Size mm²	0.05mm²
Minimum Wire Size AWG	36AWG
Maximum Wire Size AWG	30AWG
Maximum Contact Resistance	40mΩ

Key Features

Compatible with FI-R Connector Housing for secure and efficient assembly.
Rated for a current capacity of 700mA ensuring safe electrical conductivity.
Contact plating is gold, enhancing corrosion resistance and conductivity.
Termination type is crimp, suitable for wire crimping applications.
Operates reliably within a temperature range of -40°C to 80°C.
Maximum contact resistance is 40 milliohms, ensuring low electrical loss.
Constructed from phosphor bronze material for durability and strength.
Designed specifically for use in board-to-board connector assemblies.

Product Description

JAE FI-RC3-1A-1E-15000 is a male crimp terminal from the FI-R series, engineered for precision electrical connections using wires sized from 36 AWG minimum to 30 AWG maximum. The terminal features a gold plated phosphor bronze contact, which enhances electrical conductivity while providing strong resistance to oxidation and corrosion.

This crimp terminal is compatible with FI-R connector housings and supports a maximum current rating of 700mA, making it ideal for applications requiring reliable low-current transmission such as in consumer electronics, notebooks, mobile phones, and VCRs. Its robust termination via crimping ensures secure mechanical and electrical attachment to wires.

Operating temperature ranges from -40°C to 80°C, enabling performance in a variety of environmental conditions. The maximum contact resistance of 40 milliohms contributes to efficient electrical signal transfer. The phosphor bronze contact material combines excellent mechanical strength with good electrical properties for durable usage.

The FI-R series terminals are designed especially for board-to-board connections where space reduction is critical. This product supports precision assembly needs in electronics manufacturing, laboratory equipment, communication devices, and industrial automation systems.

Compatible with FI-R Connector Housing for secure installation. 700mA current rating suitable for low-power signal transmission. Gold plated contact for enhanced conductivity and corrosion resistance. Crimp termination type provides strong mechanical and electrical bond.

Wide operational temperature range (-40°C to 80°C) for versatile use. Phosphor bronze contact material ensures durability and strength. Low maximum contact resistance of 40mΩ for efficient conductivity. Designed for board-to-board applications in compact electronic devices.

No approvals or certifications included.

This male crimp terminal is specifically engineered for high-quality connections within the electronics and electrical components sector. Its reliable construction and precise specifications make it well suited for industrial automation, consumer electronics, manufacturing, and telecommunications applications.
