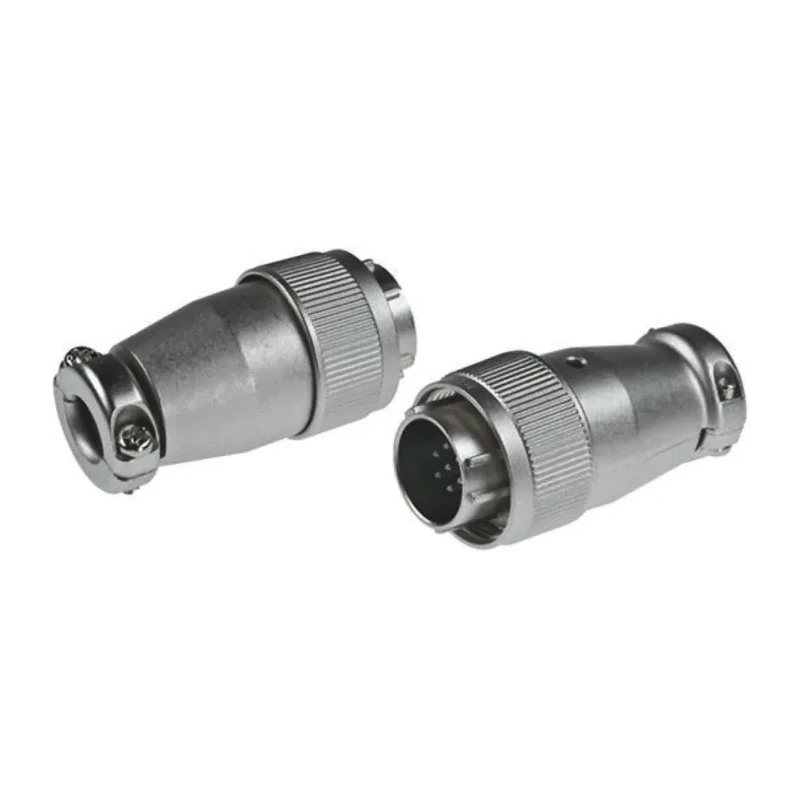

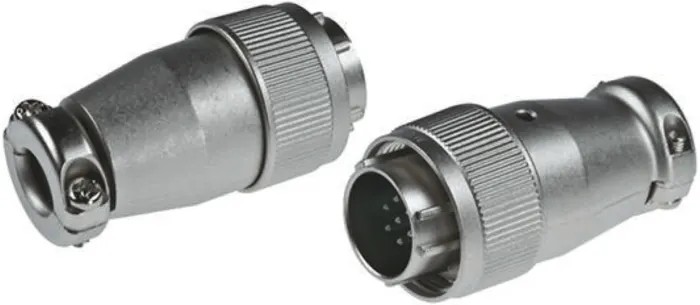

JAE Circular Connector Miniature Cable Plug, Male, 16 Contacts, 10A, Threaded Mating, Aluminium Alloy Housing SRCN6A25-16P
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250.0, 350.0V |
| Brand | JAE |
| Orientation | Straight |
| Current | 10A |
| Model | SRCN6A25-16P |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper |
| Series | SRCN |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 16 |
| Contact Plating | Silver |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shell Size | 25 |
| Mating Type | Threaded |
| Connector Size | Miniature |
| Plug/Socket | Plug |
Key Features
- Connector supports a continuous current rating of 10A for robust power transmission.
- Threaded mating type ensures secure and stable connection during use.
- Construction employs lightweight aluminium alloy housing for durability and corrosion resistance.
- Designed with five polarization keys and keyways for positive polarization and accurate mating.
- Operates reliably within a temperature range of -25°C to 85°C.
- Termination is by soldering to ensure strong contact integrity.
- Shell size 25 and straight orientation facilitate versatile cable routing.
- Suitable for industrial, manufacturing, electronic assembly, and power connector applications.
Product Description
JAE SRCN6A25-16P miniature circular connector is a high-quality cable plug with 16 contacts, combining robust electrical performance and solid mechanical design.
This connector is engineered for industrial and electronic applications requiring secure and reliable connections under moderate power loads up to 10 amperes. The aluminium alloy housing provides excellent mechanical strength while keeping weight low, and the silver-plated copper contacts ensure superior conductivity and corrosion resistance.
With a threaded mating type and straight orientation, the connector offers stable engagement and straightforward cable routing, suitable for various environments including manufacturing, industrial machinery, and electrical power distribution.
Designed to operate effectively across a broad temperature range (-25°C to 85°C), it accommodates challenging working conditions. The five keys and keyways system provide positive polarization to prevent mismating, ensuring system reliability.
Solder termination type offers excellent contact integrity suitable for custom cable assemblies or replacement parts. 16 silver-plated copper contacts provide stable electrical connection. 10A current rating supports moderate power requirements.
Aluminium alloy housing for durable and lightweight construction. Threaded mating type ensures secure coupling. Temperature range supports operating conditions from -25°C to 85°C. Straight orientation with shell size 25 for flexible installation.
Voltage capacity up to 350V for versatile industrial applications. Positive polarization ensures correct and safe connections. Suitable for industrial, electronic, manufacturing, and power connector uses. Miniature size allows compact installation in devices and control panels.
This JAE Industrial Circular Connector is a reliable choice for engineers and professionals requiring miniature cable connectors that deliver high performance and durability. Explore the full SRCN series to find compatible connectors and accessories for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a continuous current rating of 10A, suitable for moderate power transmission applications.
The voltage capacity of the SRCN6A25-16P is up to 350V, making it versatile for various industrial applications.
It operates reliably within a temperature range of -25°C to 85°C, accommodating challenging working conditions.
The housing is made from lightweight aluminium alloy, while the contacts are silver-plated copper, providing excellent conductivity and corrosion resistance.
This connector features 16 contacts, designed for secure and reliable connections.
The termination type is solder, ensuring strong contact integrity for reliable connections.
It utilizes a threaded mating type, which ensures a secure and stable connection during use.
The shell size of the SRCN6A25-16P is 25, facilitating versatile cable routing.
This connector is suitable for industrial, manufacturing, electronic assembly, and power connector applications.
The connector features a straight orientation, which aids in straightforward cable routing.
It is designed with five polarization keys and keyways that provide positive polarization to prevent mismating.
The connector is manufactured in India, ensuring compliance with local production standards.
