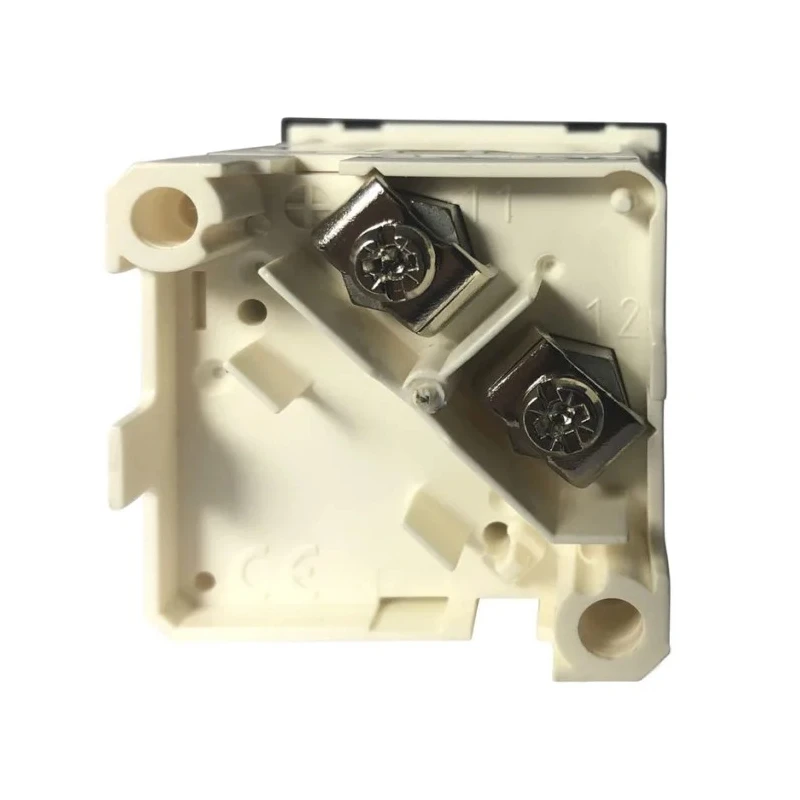

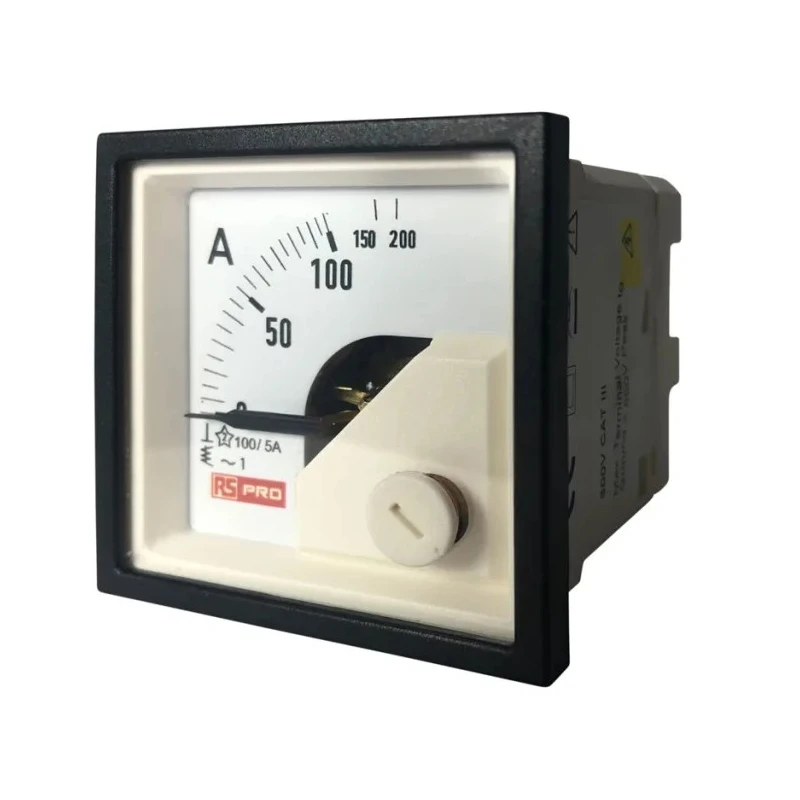

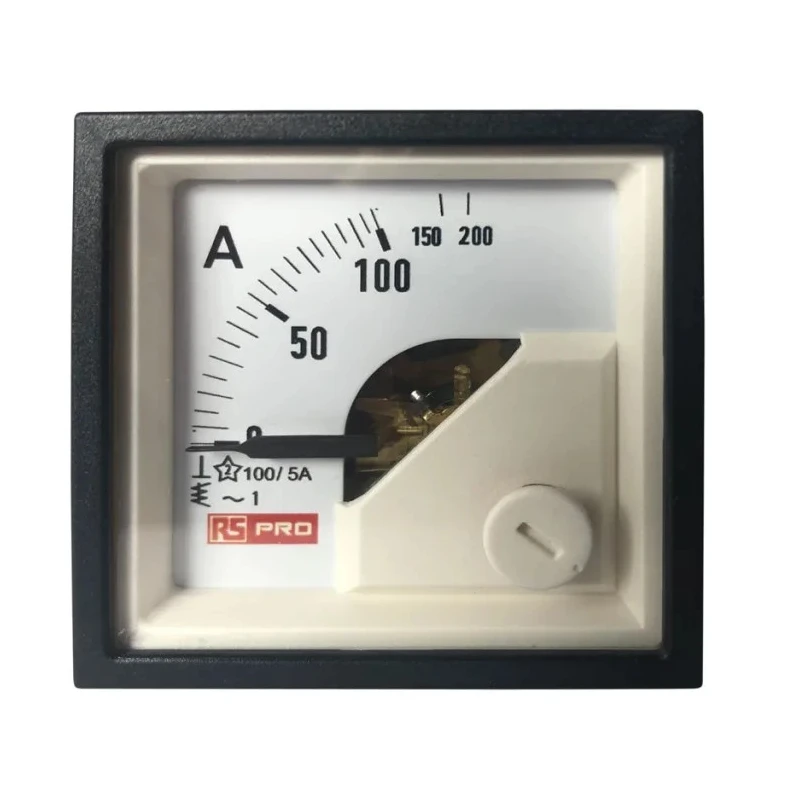

RS PRO Analogue Panel Ammeter 100 A AC, Moving Iron, 45 mm x 45 mm Cutout, 1% Accuracy 186-2420
Specifications
| Country of Origin | India |
|---|---|
| Relative Humidity | Less than 75% annual average (noncondensing) |
| Brand | RS PRO |
| Model | 186-2420 |
| Depth | 72mm |
| Series | RS PRO |
| Maximum Operating Temperature | 65°C |
| Current Type | AC |
| Pointer | Knife-edge type |
| Meter Accuracy | 1 % |
| Minimum Operating Temperature | -10°C |
| Shock Resistance | 15g for pulse duration of 11 milliseconds |
| Overload | 2 times nominal current (continuous) |
| Cutout Height | 45mm |
| Cutout Width | 45mm |
| Minimum Measurement | 15 mV (DC), 6 V (AC) |
| Maximum Measurement | 600 V dc, 1000 V ac |
| Moving Element | Moving Iron |
| Maximum Ampere Value | 100 A |
| AC Ammeter nominal range | 100mA to 100A direct connection |
| Pointer deflection | 0° to 90° |
| VDE 0100-410 | 2018-10 approved |
| ISO 20653 | 2006-08 |
Key Features
- Features a 45 mm x 45 mm cutout size for easy panel mounting.
- Operating temperature ranges from -10°C to 65°C for diverse industrial environments.
- Knife-edge type pointer ensures accurate and clear deflection within 0° to 90°.
- Moulded polycarbonate square case provides durability and shock resistance up to 15g.
- Supports overload capacity of 2 times nominal current continuously for motor inrush measurement.
- Suitable for frequencies between 15Hz and 400Hz to accommodate varied AC applications.
- Calibration down to 10% scale and optional overload scales (X2, X3, X5, X6) for enhanced measurement accuracy.
- Relative humidity tolerance below 75% annual average with non-condensing conditions.
Product Description
RS PRO 186-2420 is an analogue panel ammeter designed for accurate AC current measurement up to 100 A with a moving iron mechanism. The meter features a compact 45 mm by 45 mm cutout, making it ideal for integration into industrial control panels and switchgear.
Constructed for reliable use in harsh industrial conditions, it operates reliably between -10°C and 65°C. The moulded polycarbonate case offers excellent durability and shock resistance up to 15g for pulse durations of 11 milliseconds, ensuring stable performance in dynamic environments.
This ammeter uses a knife-edge type pointer that deflects between 0° to 90°, providing clear and precise current indication. It supports overloads up to two times the nominal current continuously, easily handling motor start-up inrush currents.
The meter measures true RMS values independent of waveform, covering frequency ranges from 15Hz to 400Hz, suitable for diverse AC current monitoring applications. Its scales are calibrated down to 10% with options for overload scales including X2, X3, X5, and X6, offering flexibility for detailed current analysis.
The RS PRO analogue panel ammeter is CE certified and meets multiple international standards such as EN 61010, IEC 61010, ISO 20653, and UL 94 V-0, ensuring compliance and safety in industrial and laboratory environments.
45 mm x 45 mm cutout size for panel mounting. 1% meter accuracy for precise measurement. Operating temperature range from -10°C to 65°C. Durable polycarbonate case with 15g shock resistance. Moving iron mechanism for true RMS AC current measurement.
Supports up to 2 times overload for continuous operation. Frequency range of 15 Hz to 400 Hz. Knife-edge pointer with 0° to 90° deflection.
This instrument is suitable for use in industrial automation, process control, electrical panels, and machinery consoles where reliable AC current monitoring is required. It is an essential component in manufacturing, HVAC, and laboratory testing applications. For more precision devices, explore other RS PRO Panel Meters in the EnvMart catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ammeter can measure AC current up to a maximum of 100 A.
The meter has an accuracy of 1%, ensuring precise measurement of AC current.
It operates reliably within a temperature range of -10°C to 65°C.
It features a knife-edge type pointer that deflects between 0° to 90° for clear current indication.
The cutout size for this ammeter is 45 mm x 45 mm, making it suitable for standard panel installations.
It supports an overload capacity of up to two times the nominal current continuously, which is useful for motor inrush measurements.
This model is suitable for frequencies between 15 Hz and 400 Hz, accommodating various AC applications.
The moulded polycarbonate case offers shock resistance up to 15g for pulse durations of 11 milliseconds.
The minimum measurement capability is 15 mV (DC) and 6 V (AC).
It is CE certified and meets several international standards including EN 61010, IEC 61010, ISO 20653, and UL 94 V-0.
This ammeter is designed for use in industrial automation, process control, electrical panels, and machinery consoles.
The ammeter features a moulded polycarbonate case, providing durability and shock resistance.
