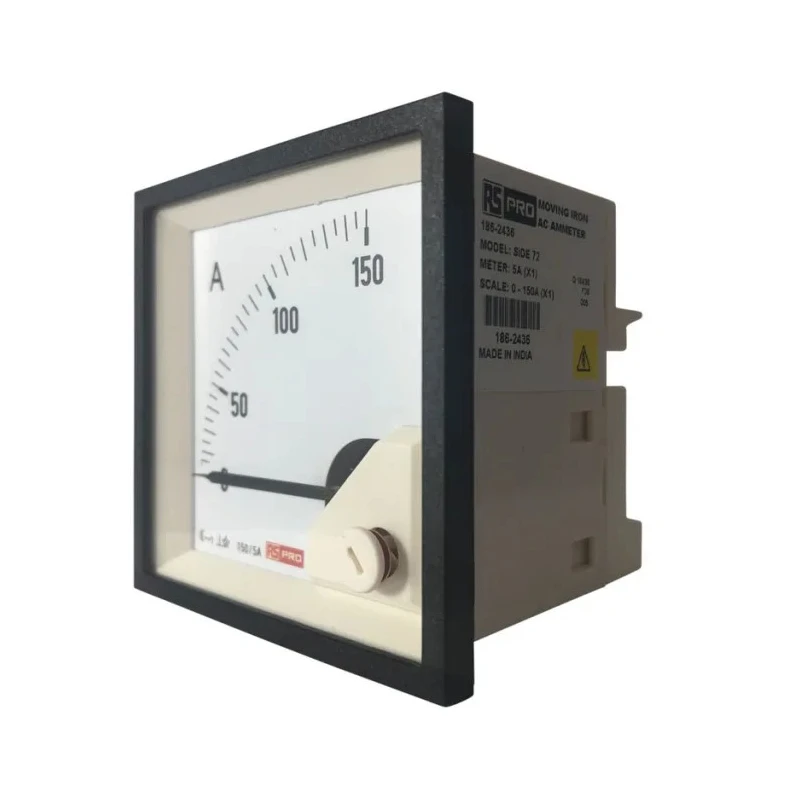

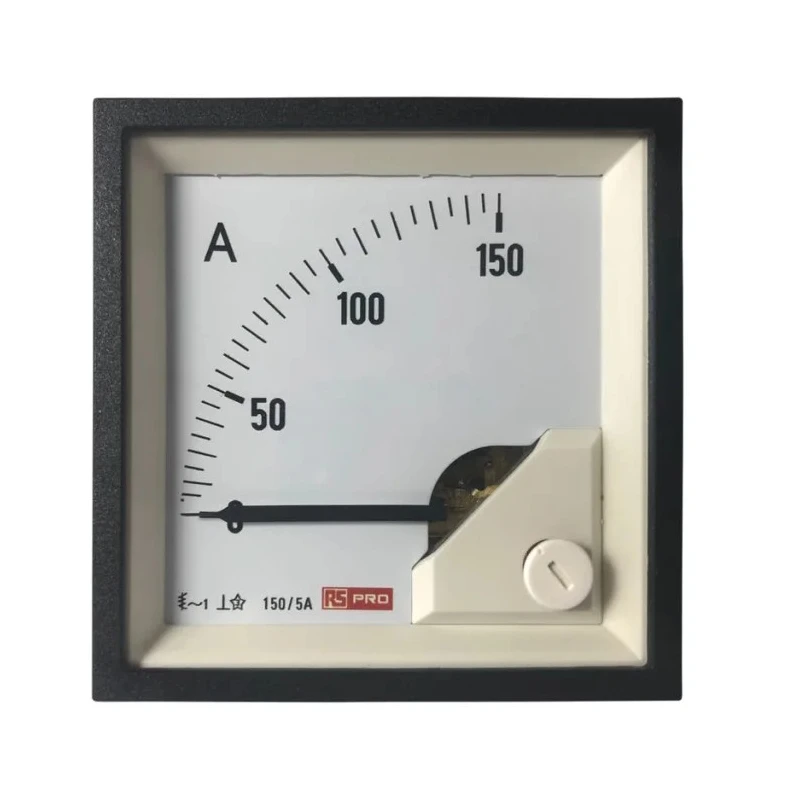

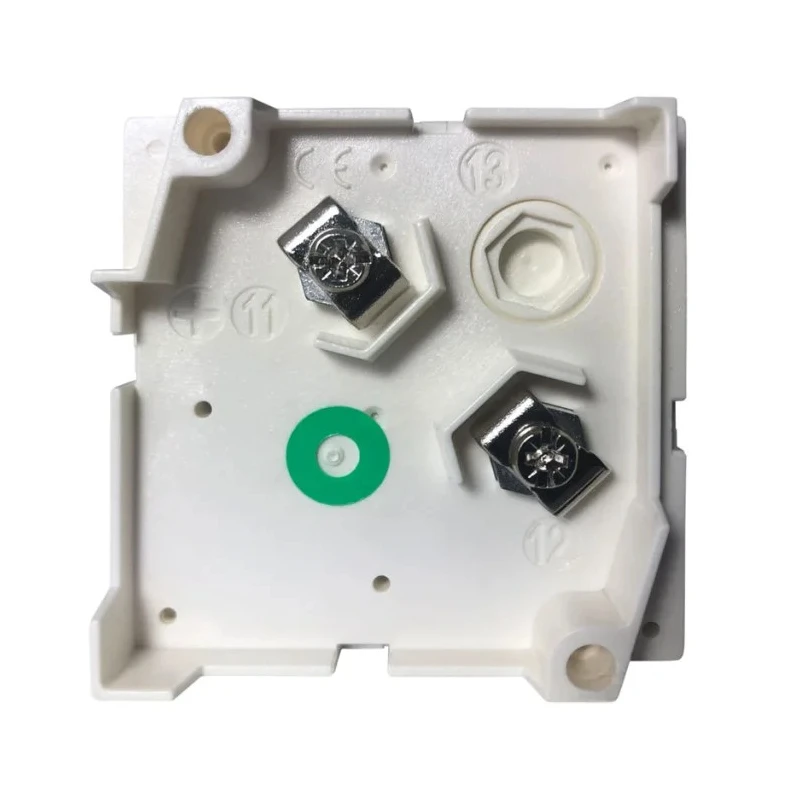

RS PRO Analogue Panel Ammeter 100 A AC, 68 mm x 68 mm, 1% Moving Iron 186-2436

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Analogue Panel Ammeter 100 A AC, 68 mm x 68 mm, 1% Moving Iron 186-2436

Name: RS PRO Analogue Panel Ammeter 100 A AC, 68 mm x 68 mm, 1% Moving Iron 186-2436
Brand: RS PRO
SKU: 101588
Price: 26.64 USD
Availability: InStock



Category Panel Meter Brand RS PRO Condition New

Specifications

Country of Origin	India
Relative Humidity	Less than 75% annual average (noncondensing)
Brand	RS PRO
Model	186-2436
Depth	62mm
Series	RS PRO
Maximum Operating Temperature	65°C
Current Type	AC
Pointer	Knife-edge type
Meter Accuracy	1 %
Minimum Operating Temperature	-10°C
Shock Resistance	15g for pulse duration 11 milliseconds
Overload	2 times nominal current (continuous)
Standards/Approvals	2014/35/EC, EN 61010, UL 94 V-0, ISO 20653:2006-08, DIN 43701, DIN 43807, 2014/30/EC, IEC 529, IEC 61010, VDE / VDI 3540, CE, 93/68/EEC, DIN 46200/46282, DIN 43802, DIN IEC 61554, VDE 0100-410:2018-10, IEC51/DINEN60051, DIN 43718
Cutout Height	68mm
Cutout Width	68mm
Minimum Measurement	15 mV (DC), 6 V (AC)
Maximum Measurement	600 V dc, 1000 V ac
Moving Element	Moving Iron
Maximum Ampere Value	100 A
Pointer deflection	0° to 90°
VDE 0100-410	2018-10 approved
ISO 20653	2006-08
Nominal range of use	100mA to 100A direct connection

Key Features

Features a 68 mm x 68 mm cutout square panel design suitable for control and switchgear panels.
Operating temperature ranges from -10°C to 65°C, ensuring reliable use in industrial environments.
Knife-edge type pointer with 0° to 90° deflection for precise current indication.
Measures AC current up to 100 A direct connection with overload capacity twice the nominal continuous current.
Moulded polycarbonate case offers durable housing with shock resistance of 15g for pulses of 11 milliseconds.
True RMS value measurement substantially independent of waveform, useful for motor inrush current with overload scales up to X6.
IP52 rated enclosure providing protection against dust and dripping water.
Certified to international standards including CE, UL 94 V-0, IEC 61010, and relevant DIN norms.

Product Description

RS PRO 186-2436 Analogue Panel Ammeter is designed for precise AC current measurement with 1% accuracy. Featuring a 68 mm x 68 mm cutout, this meter uses a moving iron mechanism suitable for electrical panels, control consoles, and switchgear applications.

The instrument provides true RMS value readings that accurately reflect the current regardless of waveform distortion, an essential feature for motor and industrial load monitoring. The knife-edge pointer with a 0° to 90° deflection enables clear and easy reading of current values up to 100 A.

The robust moulded polycarbonate housing ensures durability and protection, rated at IP52, safeguarding against dust ingress and water dripping. The device operates reliably between -10°C to 65°C and withstands shock pulses of 15g, enhancing suitability for demanding industrial environments.

Overload endurance up to 2 times the nominal current allows handling motor inrush currents with optional scales up to X6. This meter conforms to multiple international standards including 2014/35/EC low voltage directive, 2014/30/EC EMC directive, IEC 61010, UL 94 V-0, CE marking, and DIN regulations, ensuring safety and compliance for industrial use.

The RS PRO 186-2436 is optimal for process control, industrial automation, and electrical equipment monitoring applications that require reliable, accurate analogue current indication.

68 mm x 68 mm square panel cutout with moulded polycarbonate case. Operating temperature range from -10°C to 65°C for industrial environments. Knife-edge pointer with 0° to 90° deflection for clear readout. True RMS measurement independent of waveform for AC current up to 100 A.

Overload protection up to 2 times nominal current for motor and equipment monitoring. Shock resistant to 15g pulses with IP52 protection rating. Conforms to international standards including CE, UL, IEC, and DIN. Ideal for automation, electrical panels, and process control systems.

Explore the comprehensive industrial automation instruments category at EnvMart for more reliable Panel Meters and related devices.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model can measure AC current up to 100 A with a direct connection.

The cutout dimensions required for this panel ammeter are 68 mm x 68 mm.

It features an accuracy rating of 1%, ensuring precise current measurement.

The operating temperature range is from -10°C to 65°C, making it suitable for various industrial environments.

It has an overload capacity of up to 2 times the nominal current, allowing it to handle motor inrush currents effectively.

This model uses a knife-edge type pointer with a deflection range of 0° to 90° for clear current readings.

It is rated for shock resistance of 15g for pulse durations of 11 milliseconds.

It conforms to multiple standards including CE, UL 94 V-0, IEC 61010, and various DIN norms, ensuring safety and compliance for industrial use.

It provides true RMS value measurements, which are independent of waveform distortion, making it suitable for various applications including motor monitoring.

The housing is made of moulded polycarbonate, providing durability and protection.

The minimum measurement capability is 15 mV (DC) and 6 V (AC).

It operates effectively in relative humidity conditions of less than 75% annual average (non-condensing).
