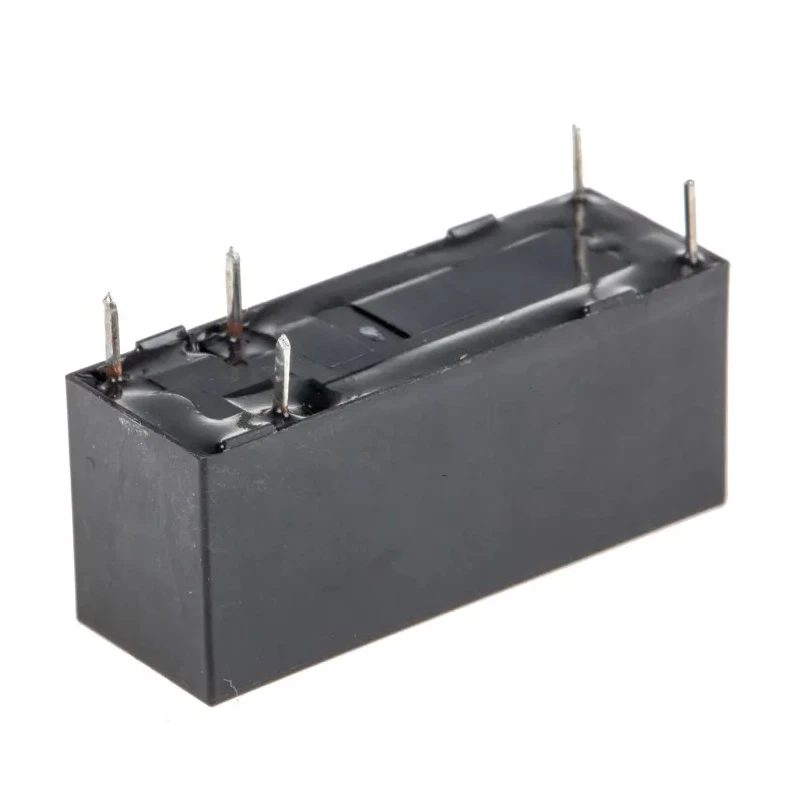

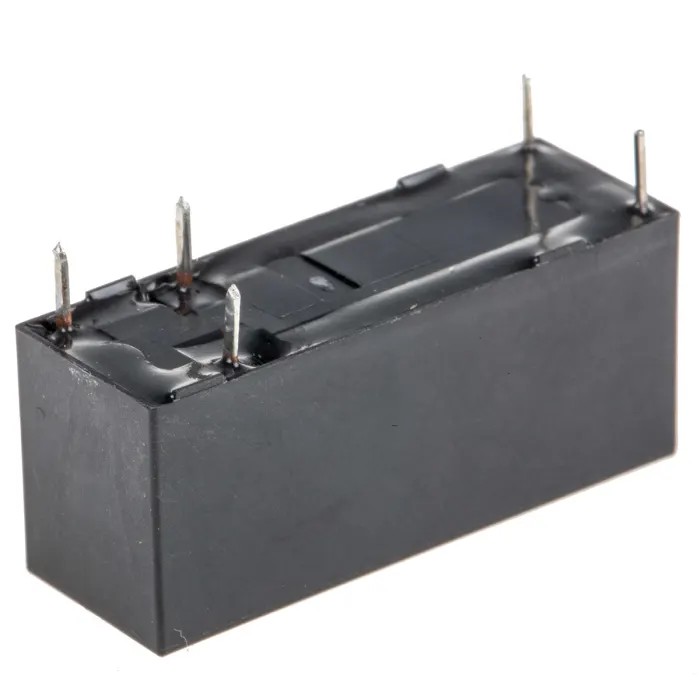

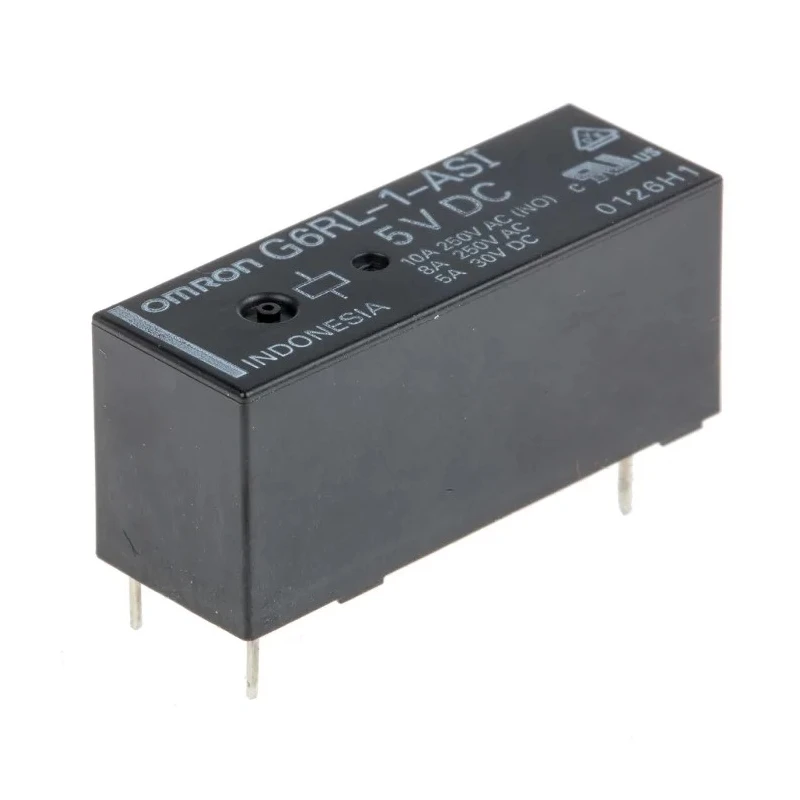

Omron PCB Power Relay 5V dc Coil 10A Switching Current SPST G6RL-1-ASI DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |

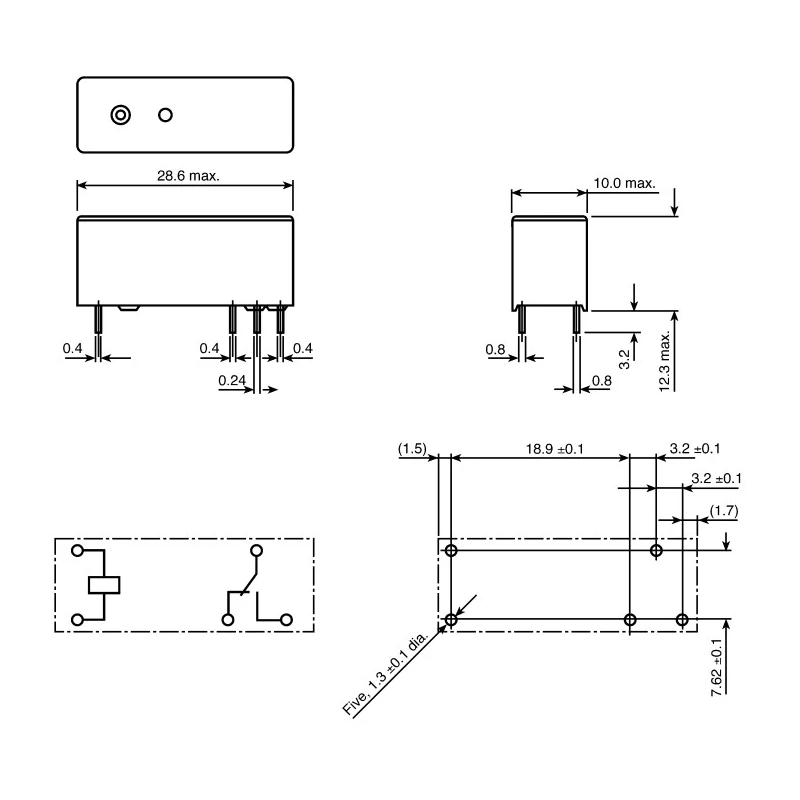

| Height | 12.3mm |
| Length | 28.5mm |
| Model | G6RL-1-ASI DC5 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Low Profile | 12.3mm max height |
| Standards/Approvals | VDE, UL, RoHS |
| Coil Resistance | 113Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 300V ac |
| Coil Power | 220mW |
| Switching Power | 150W |
| Low coil power consumption | 220mW (typical) |
Key Features
- Compact low profile with maximum height of 12.3mm for easy PCB integration.
- Silver alloy contact material ensures excellent conductivity and durability.
- Coil power consumption is low at 220mW, enabling efficient operation.
- Suitable for a wide operating temperature range from -40°C to 85°C.
- Supports switching power of up to 150W at 300V AC/DC voltage rating.
- Flux proof design enhances reliability in challenging environments.
- Complies with VDE, UL 508, and RoHS standards for safety and environmental compliance.
- Includes solder terminal type for secure and stable connections.
Product Description
Omron G6RL-1-ASI DC5 is a PCB Power Relay designed for precise and efficient switching applications with a 5V dc coil and 10A switching current capacity, featuring a SPST contact configuration.
This relay series offers a compact low profile design with a maximum height of 12.3mm, making it ideal for space-constrained PCB layouts. The relay uses silver alloy contacts to provide highly reliable conductivity and robust performance in diverse electrical systems.
Operating temperature ranges from -40°C to 85°C, enabling use in industrial, automation, and control systems across varied environmental conditions. The coil power consumption is low at 220mW, ensuring energy-efficient switching operation.
With switching capability of up to 150W at 300V AC/DC, this relay supports a broad range of devices and circuits requiring dependable power handling. Its flux proof construction increases reliability by preventing contamination, extending service life.
The relay complies with stringent VDE, UL 508 (File no. E41643), and RoHS certifications, ensuring safety, quality, and environmental standards compliance. Terminal connections are of solder type, ensuring firm attachment to PCB boards during assembly.
Compact low profile relay suitable for PCB mounting in industrial and automation applications. Silver alloy contacts for durable and efficient electrical conductivity. Wide operating temperature range for reliability in harsh conditions.
Low coil power consumption enhances energy efficiency. High switching power capacity at 150W supports various electrical loads. Flux proof design ensures operational reliability and longevity. Certified by VDE, UL 508, and RoHS for quality assurance.
Solder terminals provide strong and reliable PCB connections.
This Omron relay is ideal for use in electrical, automation, and control systems, increasing production efficiency by ensuring reliable switching with compact form factor. Explore more Power Relays and control components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a maximum switching current of 10A.
This model operates with a coil voltage of 5V dc.
The maximum height of this relay is 12.3mm, making it suitable for compact PCB layouts.
It can operate in a temperature range from -40°C to 85°C.
The relay features a Single Pole Single Throw (SPST) contact configuration.
It supports a switching power capacity of up to 150W at 300V AC/DC.
The contacts are made of silver alloy, which provides excellent conductivity.
It includes solder type terminals for secure connections to the PCB.
The coil power consumption is low at 220mW, enabling efficient operation.
It complies with VDE, UL 508, and RoHS standards for safety and environmental compliance.
The relay has a length of 28.5mm and a width of 10mm.
The flux proof design enhances reliability by preventing contamination and extending service life.
