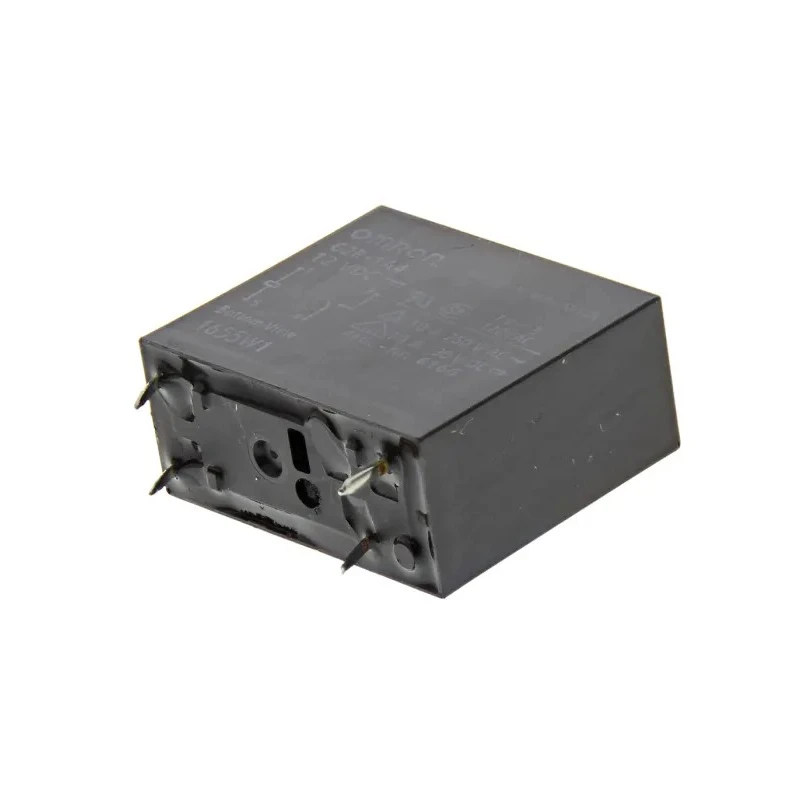

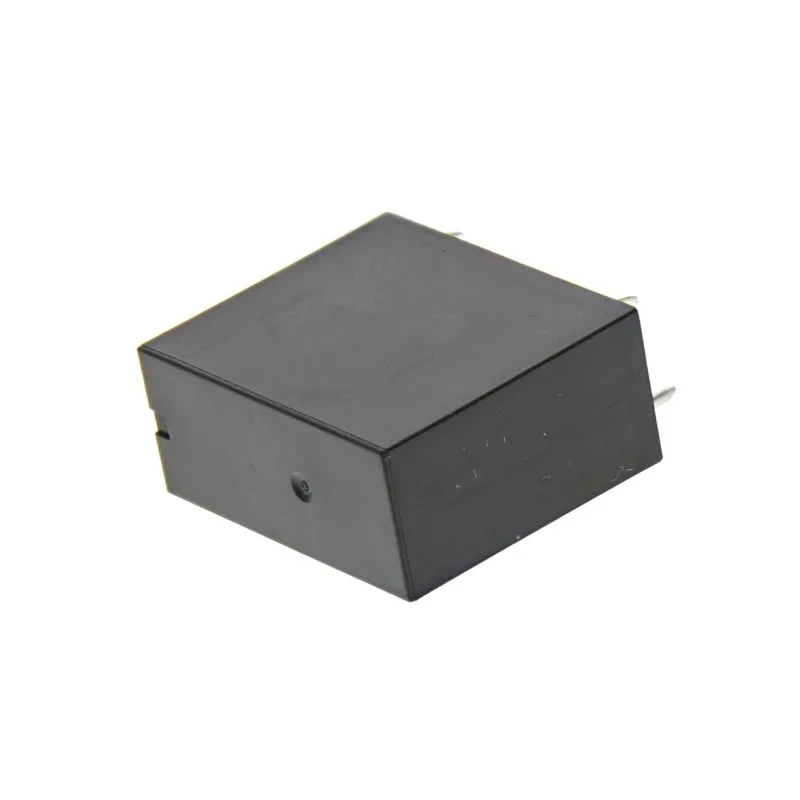

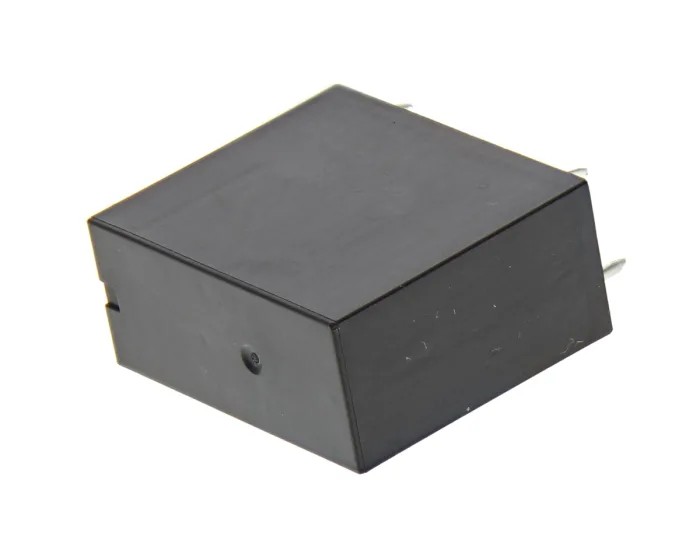

Omron PCB Power Relay 12V dc Coil, 8A Switching Current, SPST, Silver Alloy Contacts G2R-1A4 DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-1A4 DC12 |
| Width | 13.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R-1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 275Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Switching Power | 150W |
Key Features
- General-purpose relay suitable for domestic and commercial applications.
- Silver alloy contacts ensure reliable performance and low contact resistance of 30 milliohms.
- Wide operating temperature range from -40°C to 70°C.
- Coil resistance is 275 ohms providing stable coil power of 0.9 VA.
- Supports switching power up to 150 watts with maximum switching voltages of 125V DC and 380V AC.
- PCB mount type with solder terminals for secure installation.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Omron G2R-1A4 DC12 PCB Power Relay is designed for reliable switching in various industrial and commercial electrical applications. It operates with a 12V DC coil voltage and provides a switching current capacity of 8 amperes across a SPST (Single Pole Single Throw) contact configuration. This relay offers compact form factor with dimensions of 25.5 mm height, 13.5 mm width, and 29 mm length, making it ideal for tight PCB mounting requirements.
The relay contacts are made of silver alloy, guaranteeing excellent conductivity and a low contact resistance rated at 30 milliohms. The coil resistance is precisely 275 ohms, consuming 0.9 VA coil power to ensure efficient energizing. The device supports switching power up to 150 watts and can handle maximum switching voltages of 125 volts DC and 380 volts AC, suitable for a diverse range of electrical load control tasks.
Operating temperature ranges from -40°C up to 70°C permit usage in harsh environments encountered in industrial automation systems. The relay employs solder terminal types for reliable connections directly onto printed circuit boards (PCB). It is fully compliant with RoHS environmental standards, addressing regulatory requirements for hazardous substances.
This power relay is particularly well-suited for applications in industrial equipment control, automation systems, HVAC, power supply switching, and other electrical machinery where compact, efficient, and reliable signal and power switching are required.
General-purpose PCB power relay for domestic and commercial use. Compact size facilitates integration into dense electronic assemblies. Silver alloy contact material for durability and low resistance. Wide temperature operating range from -40°C to 70°C.
Coil consumes 0.9 VA with 275 ohm resistance for energy efficiency. Supports up to 150 watts switching power at 125V DC and 380V AC maximum voltages. PCB mount type with solder terminals ensures secure installation. Meets RoHS compliance for eco-friendly usage.
Explore our extensive range of Power Relays and industrial control components at EnvMart for reliable electrical switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V DC.
It can handle a maximum switching current of 8 amperes.
The relay has dimensions of 25.5 mm in height, 13.5 mm in width, and 29 mm in length.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The contacts are made of silver alloy, which ensures low contact resistance and reliable performance.
The maximum switching voltage is 125V DC and 380V AC.
The contact resistance is rated at 30 milliohms.
The operating temperature range is from -40°C to 70°C.
It uses solder terminals for secure installation on printed circuit boards (PCB).
The coil resistance is 275 ohms.
It supports a maximum switching power of 150 watts.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
