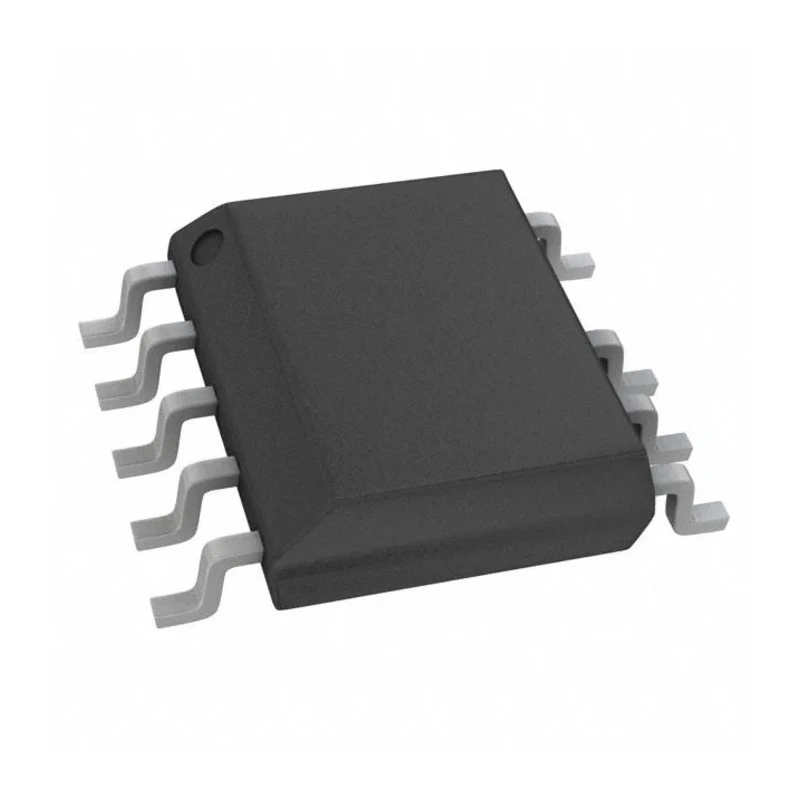

onsemi Switching Regulator Surface Mount 3.85 V / 4.1 V DC Output Voltage, 380 mW, 9 Pins, SOIC Package NCP1616A2DR2G

onsemi NCP1616A2DR2G is a surface mount switching regulator delivering precise output voltages of 3.85 V and 4.1 V DC with a power rating of 380 mW. Housed in a 9-pin SOIC package measuring 5 mm by 4 mm by 1.75 mm, it supports high voltage input up to 700 V DC and operates reliably across a temperature range from -40°C to 150°C. This regulator features a high voltage start-up circuit and current controlled frequency foldback to optimize performance with a broad variety of MOSFETs and power levels.

The integrated input filter capacitor discharge circuitry and dynamic response enhancer improve transient response and startup speed, enhancing efficiency and reliability. Soft overvoltage protection with drive capability between -500 mA and +800 mA safeguards against faults, while AC line brownout detection adds further robustness. It achieves improved efficiency at light load conditions and minimizes acoustic noise and component stress during overvoltage faults.

This switching regulator is ideally suited for industrial and commercial off-line power supplies, LED lighting drivers and power supplies, lighting ballasts, and high-performance adapter applications. Its compact SOIC package and surface mount design make it suitable for modern PCB assemblies requiring reliable voltage regulation at high voltages.

Surface mount switching regulator optimized for efficient voltage conversion. Supports maximum operating temperature up to 150°C and minimum of -40°C. Equipped with a high voltage start-up circuit and soft overvoltage protection.

Provides dynamic response enhancer for improved transient response and fast startup. Includes AC line brownout detection and integrated input filter capacitor discharge circuitry. 9-pin SOIC package with compact dimensions of 5mm length, 4mm width, and 1.75mm depth.

Maximum input voltage rating is 700 V DC, suitable for off-line power supply applications. Designed for a wide range of MOSFETs and power levels with current controlled frequency foldback. Ensures improved light load efficiency and reduces acoustic noise during overvoltage faults.

This product is supported by extensive technical documents and certifications indicating Pb and Halogen free compliance. It is well suited for use in electronics manufacturing, industrial power supply setups, LED lighting applications, and other high voltage DC power systems. Explore further options in the Switching Regulator category on EnvMart to complement your electronic component needs.
