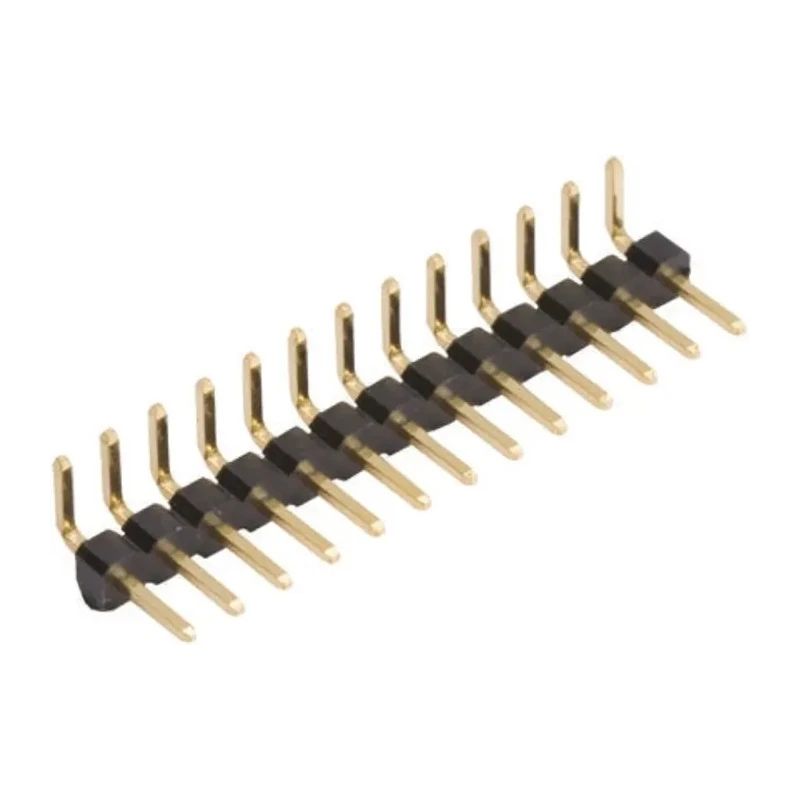

HARWIN M22 Series Right Angle Through Hole Pin Header, 20 Contacts, 2 mm Pitch, 1 Row, Unshrouded M22-2032005

HARWIN M22-2032005 right angle through hole pin header is a precision electronic connector designed with 20 male contacts arranged in a single row with a 2 mm pitch. The connector features a nylon housing capable of withstanding high temperature soldering processes, making it reliable for industrial and commercial electronics applications.

This board-to-board connector's unshrouded design allows for versatile applications and ease of integration with various PCB assemblies. The right angle orientation optimizes PCB space usage, suited for embedded PCs, industrial control boards, consumer electronics, and communication devices.

The contacts are constructed from phosphor bronze and plated with gold to ensure excellent conductivity and long-term durability. The mating pin length of 3.5 mm coupled with a 3 mm tail pin length provides secure mechanical and electrical connection, ideal for repeated insertion cycles.

Rated for a current of 1 ampere and operational temperature ranging from -40°C to 105°C, this connector suits applications in industrial monitoring, personal computing, and drive control systems. The through hole mount type ensures strong PCB retention and mechanical stability under vibration and stress.

Its housing design permits cutting via castellations, allowing for size customization tailored to specific circuit requirements, while ensuring the integrity of pin tails. This adaptability makes it a preferred choice for custom PCB designs and prototypes.

These M22 series connectors are widely adopted as standard components for embedded PC motherboards and larger electronic assemblies, supporting reliable electrical interfacing. Constructed with a single row of 20 male contacts for efficient signal transmission.

Housing made from high temperature nylon to endure soldering processes. Unshrouded design allows flexible connection options and ease of installation. Right angle orientation supports compact PCB layouts and versatile mounting.

Gold-plated phosphor bronze contacts ensure corrosion resistance and superior conductivity. Contact and tail pin lengths of 3.5 mm and 3 mm respectively for secure mating. Rated for current up to 1A with operating temperature range from -40°C to 105°C.

Through hole mounting provides strong mechanical stability on PCBs. Compatible with M22 series PCB sockets and jumpers for extended configurability. Design includes castellations for customizable size adjustments without damaging tails.
