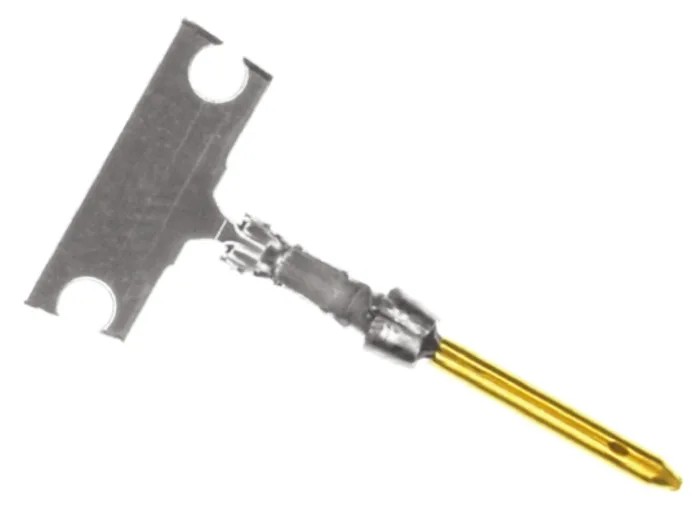

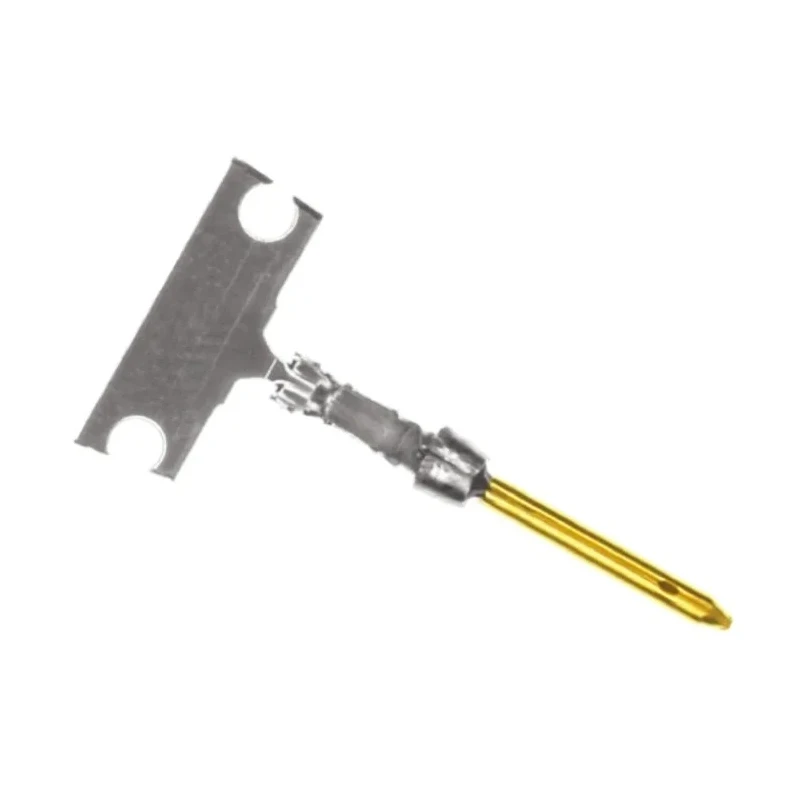

TE Connectivity AMPLIMITE HD-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel Pin 5-166054-1
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | TE Connectivity |
| Current | 1.2A |
| Gender | Male |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Termination Type | Crimp |
| Contact Type | Pin |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.22mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 20AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
Key Features
- The contact is made from durable brass material.
- Features gold over nickel plating for enhanced conductivity and corrosion resistance.
- Rated for a maximum current of 1.2 amperes ensuring stable performance.
- Designed for crimp termination compatible with wire sizes 28 to 20 AWG.
- Has a maximum contact resistance of 15 milliohms.
- Part of the AMPLIMITE HD-20 series designed for D-Sub connectors.
- Ensures secure pin type contact suitable for cable-mounted connectors.
- Manufactured in Poland under strict quality standards.
Product Description
TE Connectivity 5-166054-1 AMPLIMITE HD-20 Series Male Crimp D-Sub Connector Contact is engineered for precision and durability in electronic and electrical applications requiring reliable D-Sub connections. This contact pin is fabricated from brass and finished with a 0.76μm layer of gold over nickel plating, providing excellent conductivity and resistance against corrosion.
Specifically designed as a snap-in crimp pin, it suits wire sizes from 28 AWG up to 20 AWG, making it versatile for a range of wiring harnesses. It can carry currents up to 1.2A and maintains a very low maximum contact resistance of 15 milliohms, which is critical for ensuring signal integrity.
These contacts are integral components in AMPLIMITE HD-20 series cable mount D-Sub connectors widely used in industrial, laboratory, manufacturing, and computing equipment. The reliable termination and compact size make it ideal for dense electronic assemblies requiring high-quality connectivity.
Manufactured in Poland, TE Connectivity guarantees product consistency and adherence to international quality standards. Suitable for use in environments demanding robust electrical contacts, this product supports applications in industrial controls, instrumentation, and telecommunications.
The contact is crafted from brass for mechanical strength. Gold over nickel plating facilitates corrosion resistance and excellent electrical performance. Supports a maximum current capacity of 1.2 amperes for dependable operation.
Crimp termination enables secure wire attachment ranging from 28 to 20 AWG wires. Designed as a pin type contact to fit perfectly into HD-20 series connectors. Offers a maximum contact resistance of 15 milliohms to ensure minimal signal loss.
Manufactured in compliance with stringent quality controls in Poland. Explore the wide range of TE Connectivity connectors in the EnvMart catalog for comprehensive industrial and electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this contact is 1.2 amperes, ensuring stable performance in electrical applications.
This model is designed for crimp termination compatible with wire sizes ranging from 28 AWG to 20 AWG.
The contact pin is made from brass, providing mechanical strength and conductivity.
It features gold over nickel plating, which enhances conductivity and provides corrosion resistance.
The maximum contact resistance is 15 milliohms, which is critical for ensuring minimal signal loss.
This contact is manufactured in Poland under strict quality standards.
This model uses a crimp termination type, allowing for secure wire attachment.
It is part of the AMPLIMITE HD-20 series, designed for D-Sub connectors.
This model is a pin type contact, suitable for cable-mounted connectors.
The minimum wire size that this contact can accommodate is 28 AWG, equivalent to 0.08 mm².
This contact is suitable for applications in industrial controls, instrumentation, and telecommunications.
The contact size for this model is 20, which is standard for the AMPLIMITE HD-20 series.
