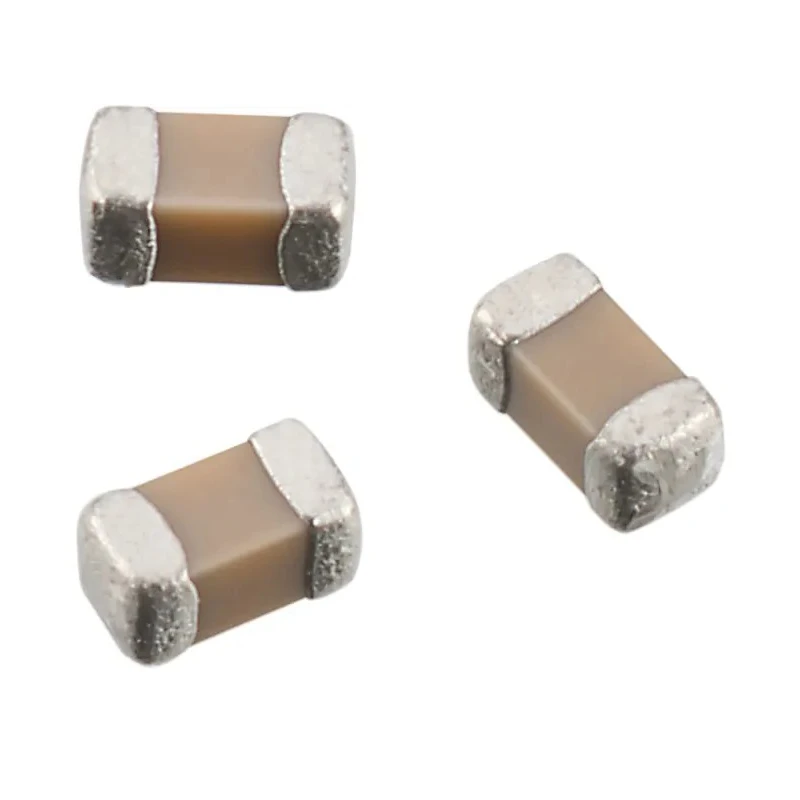

Wurth Elektronik 10 nF Multilayer Ceramic Capacitor, 50V DC, ±10 % Tolerance, Surface Mount 885382208002
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 50V dc |
| Capacitance Range | 220 pF - 2.2 μF |
| Brand | Wurth Elektronik |
| Operating Temperature | -55 °C up to + 125 °C |
| Height | 1.25mm |
| Length | 3.2mm |
| Width | 1.6mm |
| Mounting Style | SMT-Chip |
| Mount Type | Surface |
| Series | WCAP-CSST |
| Temperature Coefficient | ± 15 % |
| Termination | Ag-Polymer/Ni/Sn |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Package/Case | 1206 |
| Dielectric | X7R |
| Suppression Class | Class II |
| Recommended soldering | Reflow soldering |
| Voltage range (UR) | 16 V(DC) - 2 kV(DC) |
| Sizes | 0603 / 0805 / 1206 / 1210 |
Key Features
- Employs X7R dielectric ensuring reliable performance across -55 °C to 125 °C.
- Features 1206 package size with dimensions 3.2mm (L) x 1.6mm (W) x 1.25mm (H).
- Termination is Ag-Polymer/Ni/Sn suitable for reflow soldering processes.
- Designed for applications with high mechanical stress including power supplies and lighting.
- RoHS compliant and manufactured in Taiwan, Province Of China.
- Standard tolerance of ±10 % and suppression class II for noise reduction.
- Operating voltage range up to 50V DC with a temperature coefficient of ±15 %.
- Series WCAP-CSST offers stable capacitance for SMT chip mounting.
Product Description
Wurth Elektronik 885382208002 Multilayer Ceramic Capacitor is a high-quality electronic component featuring a capacitance of 10 nF and a voltage rating of 50V DC. It incorporates X7R dielectric material that supports reliable operation across a broad temperature range from -55 °C to 125 °C, suited for harsh industrial environments. Its surface mount 1206 package dimensions of 3.2mm length, 1.6mm width, and 1.25mm height allow compact PCB layouts ensuring space optimization.
Designed with a solder termination type of Ag-Polymer/Ni/Sn, this capacitor is compatible with reflow soldering and supports wave soldering for thicknesses up to 0.85 mm. The WCAP-CSST series is engineered for applications subject to high mechanical stress, making it ideal for power supply circuitry and lighting systems.
This component meets RoHS standards, assuring eco-friendly manufacturing processes and compliance. The product is made in Taiwan, Province Of China, guaranteeing manufacturing quality traceable to a recognized industrial hub.
The product's ±10 % capacitance tolerance and Class II suppression classification make it reliable for noise filtering and transient absorption in electronic circuits. The recommended operating voltage spans 16 V to 2 kV DC with a temperature coefficient of ±15 %, allowing stable electrical characteristics even under fluctuating conditions.
Employs X7R dielectric for temperature stability. Compatible with SMT chip mounting and reflow soldering. Designed to absorb mechanical stress efficiently. Suitable for industrial applications such as power supplies and lighting.
RoHS compliant and environmentally safe. Standard 1206 package size for PCB integration. High reliability within extreme temperature ranges.
This capacitor is an essential component for industrial electronics, laboratory equipment, automotive electronics, and commercial applications where durability and electrical stability are required. Browse EnvMart’s extensive range of Multilayer Ceramic Capacitors to find compatible components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 10 nF.
It has a voltage rating of 50V DC.
The operating temperature range is from -55 °C to +125 °C.
It employs X7R dielectric material, ensuring reliable performance across its operating temperature range.
The capacitor has dimensions of 3.2mm in length, 1.6mm in width, and 1.25mm in height.
It features an Ag-Polymer/Ni/Sn termination type suitable for soldering processes.
Yes, this component is RoHS compliant, ensuring it meets environmental safety standards.
The capacitance tolerance is ±10%.
It uses a surface mount (SMT) chip mounting style.
It is designed for applications subject to high mechanical stress, such as power supplies and lighting systems.
The recommended soldering method is reflow soldering.
It has a suppression class of Class II, suitable for noise reduction in electronic circuits.
