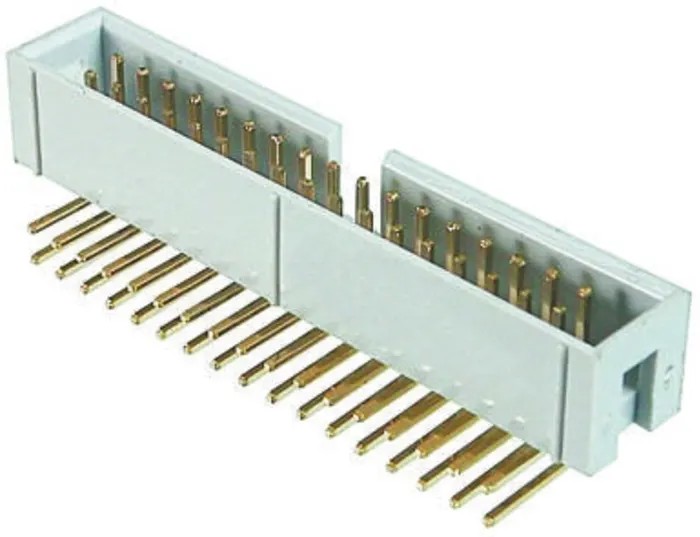

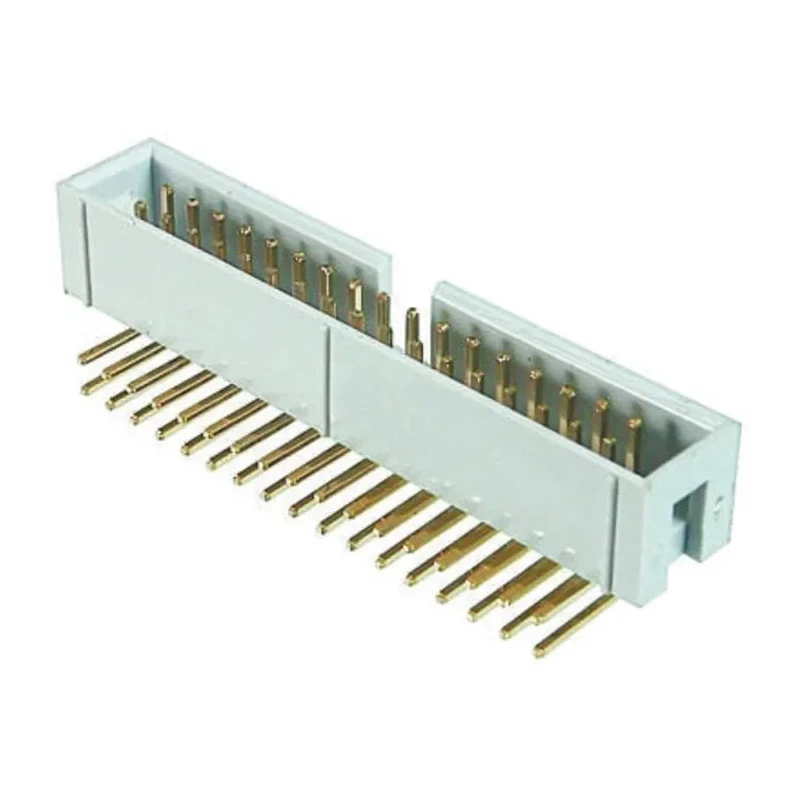

ASSMANN WSW AWHW Series Right Angle Through Hole PCB Header, 20 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded AWHW 20A-0202-T

ASSMANN WSW presents the AWHW 20A-0202-T series, a right angle through hole PCB header designed for precise and reliable electronic component connections. Featuring 20 contacts spaced at 2.54 mm pitch in a 2-row layout, this connector ensures robust wire-to-board interfacing for industrial electronics systems.

The housing is crafted from Polybutylene Terephthalate, which provides excellent electrical insulation and durability under rigorous conditions. The contacts are made of brass and plated with gold and nickel to prevent corrosion and maintain optimal conductivity over prolonged use.

This shrouded header safeguards the contacts from mechanical damage and accidental shorts, enhancing device safety and reliability. It supports a rated current of 3A and voltage of 250V, suitable for a wide range of low to medium power applications.

The connector's right angle orientation is ideal for PCB mounting where space constraints or design requirements demand perpendicular exit of wiring. Termination is through soldering, delivering a secure mechanical and electrical connection suitable for PCB assembly processes.

Operational temperature range spans from -40°C to 105°C, making this connector adaptable for diverse industrial, manufacturing, and electronic equipment applications. It complies with RoHS standards ensuring environmental compliance and safe use.

This PCB header features a 2-row configuration for reliable circuit connections. Housing is made from durable Polybutylene Terephthalate for enhanced electrical insulation. Contacts are brass material plated with gold and nickel for corrosion resistance.

Designed for wire-to-board connector systems with male contact gender. Rated current is 3A with a voltage rating of 250V for efficient electrical performance. Operates effectively between -40°C and 105°C, suitable for varying industrial environments.

The connector is shrouded to protect contacts and prevent accidental shorts. Termination type is solder, ensuring a secure, permanent PCB attachment. Orientation is right angle to accommodate specific PCB layouts and designs.

This product suits industries including electronics manufacturing, industrial control systems, and assembly lines where reliable PCB connections are critical. It is widely used in commercial, industrial, and laboratory electronic devices.
