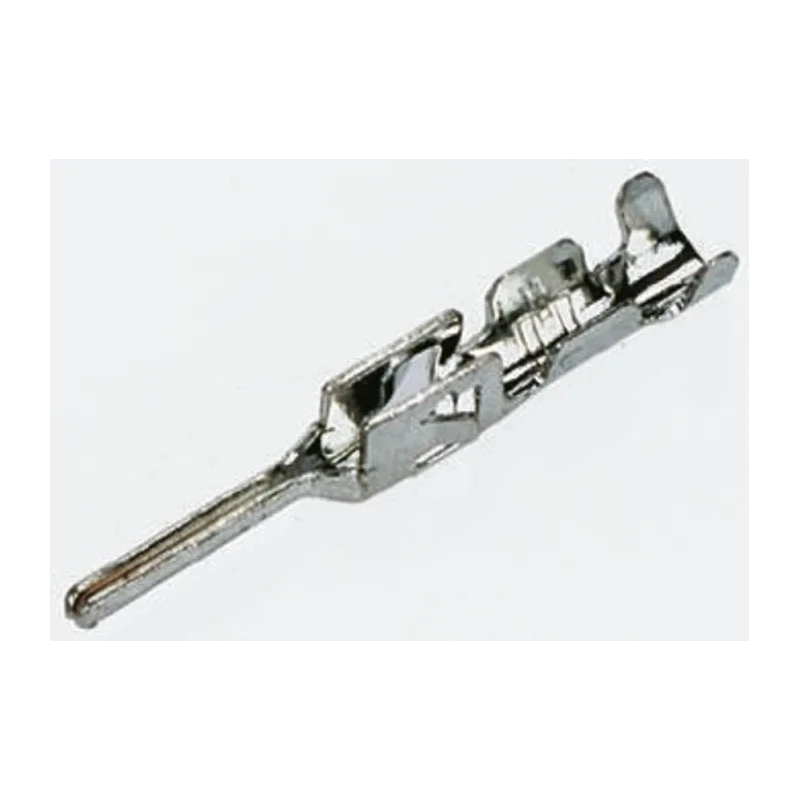

TE Connectivity Mini-Universal MATE-N-LOK Male Crimp Terminal 3A Current 26-22 AWG 16.74mm Length 770985-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 16.74mm |
| Model | 770985-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- The contact is made of brass material with tin plating for reliable conductivity.
- Compatible for use with Mini-Universal MATE-N-LOK Connector Housings.
- Crimp termination type ensures secure and efficient wiring connections.
- Supports minimum wire size of 26 AWG (0.1 mm²) and maximum wire size of 22 AWG (0.4 mm²).
- Offers low maximum contact resistance of 20 milliohms for optimal signal integrity.
- Rated for operating temperatures ranging from -30°C to 105°C.
- Physical length of the terminal measures 16.74 millimeters for compact design use.
Product Description
TE Connectivity 770985-1 is a Mini-Universal MATE-N-LOK male crimp terminal engineered for electronic and electrical applications requiring reliable connections at 3A current ratings. Featuring brass contacts with tin plating, this crimp terminal ensures robust electrical conductivity and corrosion resistance. The product is specifically designed for use with Mini-Universal MATE-N-LOK connector housings, suitable for wire sizes ranging from 26 AWG minimum to 22 AWG maximum.
The crimp termination type facilitates secure and efficient assembly, ideal for manufacturing, industrial, and laboratory electronic build applications. This terminal offers a low maximum contact resistance of 20 milliohms, maintaining signal clarity and electrical integrity even under demanding conditions.
Rated for operation within temperatures of -30°C to 105°C, this terminal withstands a wide range of environments, including harsh industrial and commercial settings. The compact 16.74mm length enables intricate PCB connector designs and wire housing configurations without excessive space requirements.
The contact is made of brass material with tin plating for reliable conductivity. Compatible for use with Mini-Universal MATE-N-LOK connector housings. Crimp termination ensures secure wire attachment. Supports wire sizes from 26 AWG (0.1 mm²) to 22 AWG (0.4 mm²).
Maximum contact resistance of 20 milliohms. Operating temperature range from -30°C to 105°C. Compact terminal length of 16.74 mm.
This TE Connectivity Mini-Universal MATE-N-LOK terminal is ideally suited for industrial, manufacturing, electronic assembly, and laboratory applications requiring high-quality power and signal Connectors. It supports reliable and efficient wiring connectivity for PCB and wire housings. Explore more connector options and technical components within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 3A.
It supports wire sizes ranging from 26 AWG (0.1 mm²) minimum to 22 AWG (0.4 mm²) maximum.
The terminal has a compact length of 16.74 millimeters.
The maximum contact resistance is 20 milliohms, ensuring optimal signal integrity.
The contact is made of brass material with tin plating for reliable conductivity.
It is rated for operating temperatures ranging from -30°C to 105°C.
Yes, it is compatible for use with Mini-Universal MATE-N-LOK connector housings.
This model uses a crimp termination type, ensuring secure and efficient wiring connections.
It is suitable for industrial, manufacturing, electronic assembly, and laboratory applications.
This terminal is a male crimp terminal.
The country of origin for this product is India.
It belongs to the Mini-Universal MATE-N-LOK series.
