Phoenix Contact QUINT DC/DC Converter 24V DC Output 10A 32V DC Input DIN Rail Mount 240W 70°C 2866378
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Phoenix Contact QUINT DC/DC Converter, 24V dc/ 10 |
| Brand | Phoenix Contact |
| Efficiency | 88% |
| Length | 130mm |
| Model | 2866378 |
| Depth | 125mm |
| Gross Weight | 1.36kg |
| Width | 80mm |
| Mount Type | DIN Rail |
| Series | QUINT |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Ripple and Noise | 60mV Pk-Pk |
| Maximum Output Power | 240W |
| Maximum Input Voltage | 32V dc |
| Standards/Approvals | cULus, cUL, UL, EAC |
| Minimum Input Voltage | 24V dc |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 10A |
| Isolation Voltage | 1.5kV dc |
| Output Voltage 2 | 28.5V |
Key Features
- Provides isolated and stable 24V DC output for industrial applications.
- Operates efficiently with 88% efficiency within a wide temperature range of -25°C to 70°C.
- Compact dimensions of 130mm length, 80mm width, and 125mm depth suitable for tight spaces.
- Supports maximum input voltage up to 32V DC and output current of 10A.
- DIN rail mounting enables easy integration into standard electrical setups.
- Isolation voltage rated at 1.5 kV DC ensures safety in harsh environments.
- Ripple and noise performance at 60mV peak-to-peak maintains output quality.
- Designed for use in telecommunication, control systems, and battery-powered equipment.
Product Description
The Phoenix Contact 2866378 QUINT DC/DC Converter provides a high-performance and reliable solution for converting variable DC input voltages between 24V to 32V into a stable 24V DC output with a rated current of 10A. Its compact and space-saving DIN rail mount design makes it ideal for applications with limited installation space.
Featuring a power rating of 240W and efficiency of 88%, this converter operates reliably in harsh industrial environments with temperatures ranging from -25°C up to 70°C. Electrical isolation with 1.5kV isolation voltage ensures safe galvanic separation of input and output circuits.
The device includes transient surge protection and maintains excellent output quality with ripple and noise limited to 60mV peak-to-peak, ensuring sensitive electronics receive clean power. With single output and load regulation of ±2%, it guarantees consistent voltage supply critical in control systems, telecommunications, and battery-powered applications.

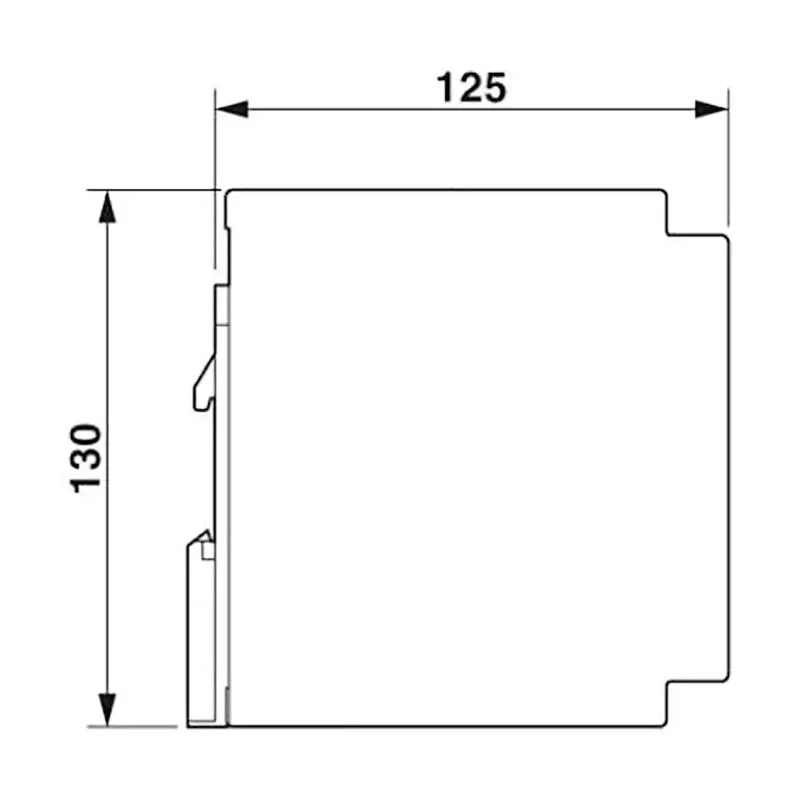

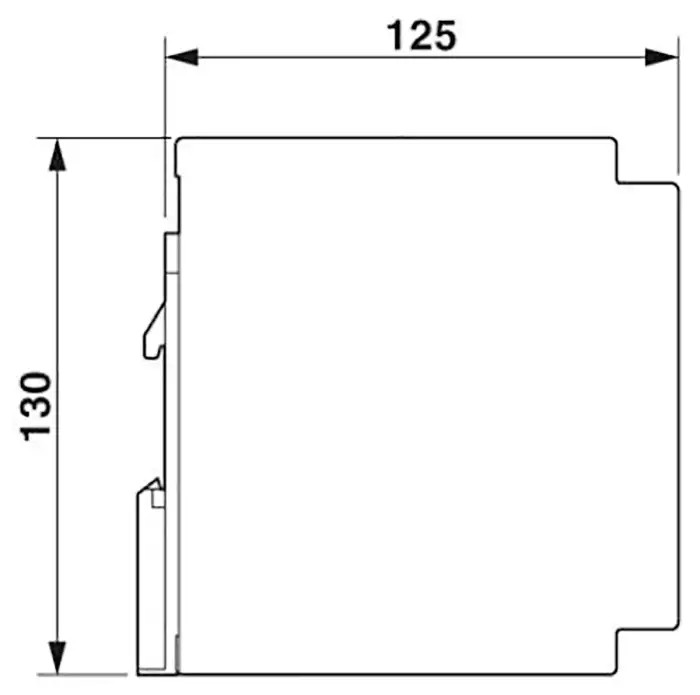

The converter's dimensions are 130mm (L) x 80mm (W) x 125mm (D), weighing approximately 1.36 kg, facilitating easy mounting on standard NS 35 DIN rails. Its robust construction is tested against shocks, vibrations, and fire hazards to confirm suitability for demanding industrial use cases.
Isolated stable 24V DC output at 10A peak current. Wide operating temperature range -25°C to 70°C. High efficiency of 88% for energy saving operation. Compact DIN rail mount enclosure for easy installation. Electrical isolation with 1.5kV isolation voltage for safety.
Low ripple and noise at 60mV peak-to-peak. Transient surge protection included. Meets cULus, cUL, UL and EAC approvals. Ideal for industrial, telecommunication, control system, and battery-powered equipment applications.
This Phoenix Contact QUINT DC/DC Converter is a premium power conversion component engineered to ensure stable and safe DC voltage supply in industrial and commercial settings. Discover the comprehensive range of Phoenix Contact products and solutions at EnvMart for your power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The converter provides a stable output voltage of 24V DC with a maximum output current of 10A.
It supports a maximum input voltage of 32V DC.
This model operates with an efficiency of 88%.
The dimensions are 130mm in length, 80mm in width, and 125mm in depth, with a gross weight of approximately 1.36 kg.
It operates efficiently within a temperature range of -25°C to 70°C.
It features a DIN rail mount design for easy integration into standard electrical setups.
The isolation voltage is rated at 1.5 kV DC, ensuring safe galvanic separation of input and output circuits.
The ripple and noise performance is limited to 60mV peak-to-peak, maintaining output quality.
It meets cULus, cUL, UL, and EAC approvals.
It is designed for use in telecommunications, control systems, and battery-powered equipment.
The maximum output power of this converter is 240W.
This model has a single output.
