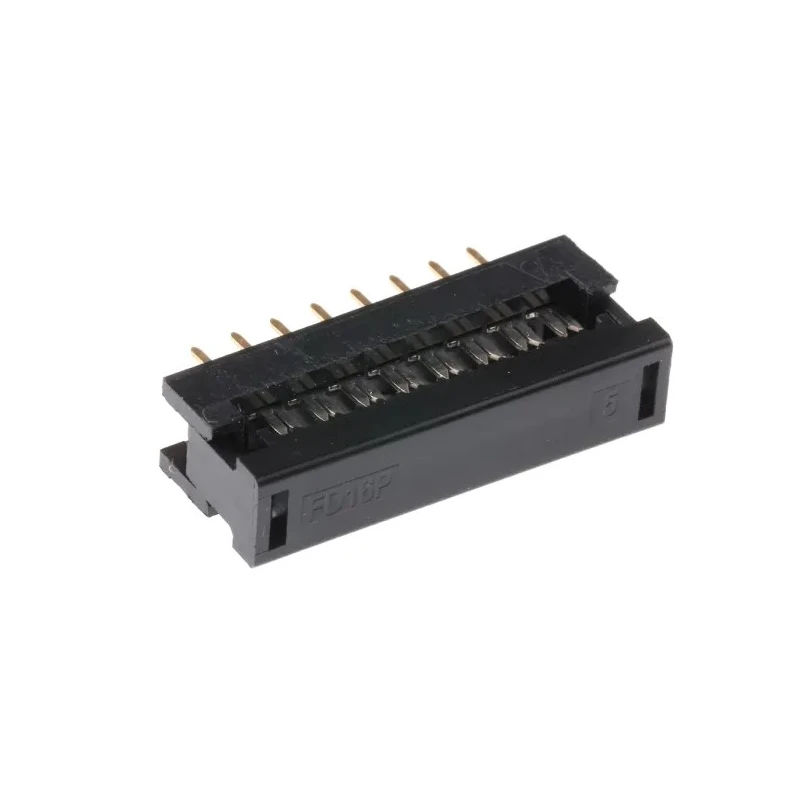

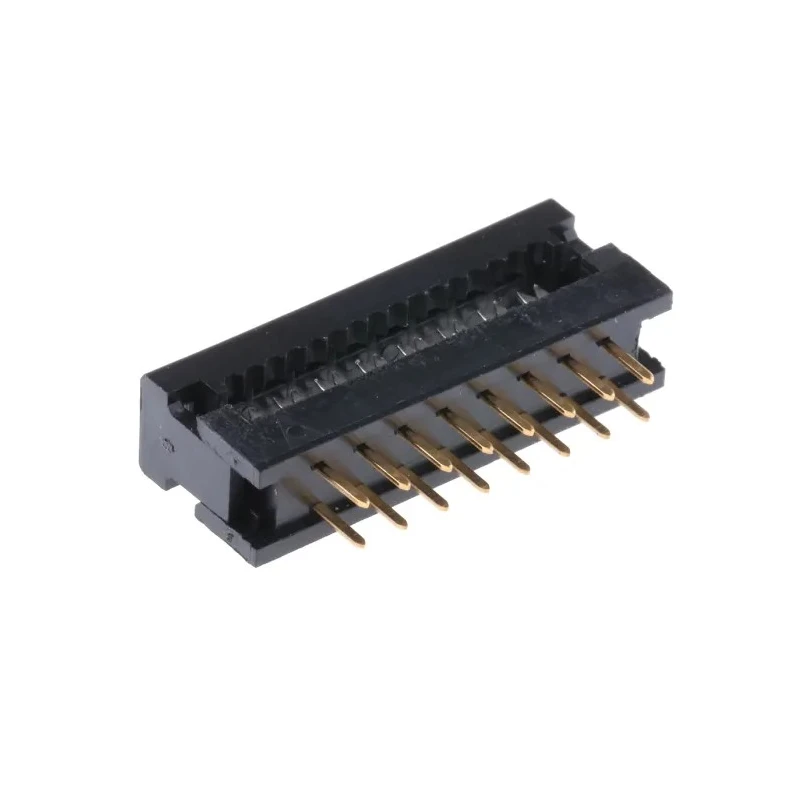

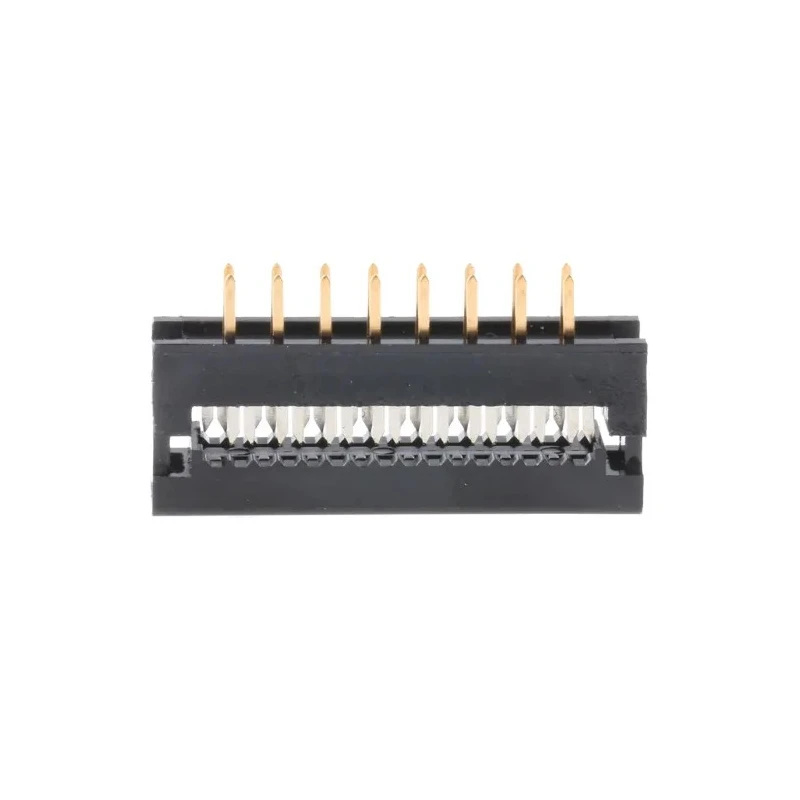

RS PRO 16-Way IDC Connector Male for Cable, 2 Row, 3A Current, 250V Voltage, Right Angle Orientation 642-5051
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 3A |
| Model | 642-5051 |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector,rectangular,transition,IDC,2 row,16 wayBrand | 3M |
| 8888 16-Way IDC Connector Plug for Cable Mount, 2-RowBrand | NEUTRAL |
| Connector,rectangular,multipole,2 row transition header,16 wayBrand | HARTING |
| TE Connectivity 16-Way IDC Connector Plug for Cable Mount, 2-RowBrand | TE Connectivity |
Key Features
- Features 16 contacts arranged in 2 rows for efficient cable interfacing.
- Supports a current rating of 3 amperes and operates up to 250 volts.
- Right angle cable mount design suits compact PCB arrangements.
- Gold plating of 0.8 μm thickness on brass contacts ensures corrosion resistance.
- Operating temperature range from -40°C to 105°C for diverse environments.
- Constructed with durable polybutylene terephthalate housing for mechanical strength.
- Unshrouded connector type with male gender contact for cable termination.
- Termination type is Insulation Displacement Contact (IDC) providing quick and reliable connections.
Product Description
RS PRO 642-5051 is a high-quality 16-Way IDC Connector Male designed for cable mounting applications requiring a two-row contact arrangement on a 2.54 mm pitch. This IDC connector supports a current rating of 3A and voltage up to 250V, making it suitable for various electronic and industrial circuits.
The right angle orientation enables efficient use of PCB space and cable routing in tight assemblies, while the unshrouded male contacts allow straightforward IDC termination. The contacts are crafted from brass with a gold plating thickness of 0.8 μm to ensure excellent conductivity and resistance against corrosion and wear over extensive use.
The durable polybutylene terephthalate housing protects the connectors mechanically and thermally, supporting operation in environments ranging from -40°C to 105°C. This cable mount IDC connector finds applications in electronic assemblies, power electronics, industrial automation, and telecommunications equipment.
Features of RS PRO 642-5051 include:. 16 contacts arranged in two rows on a 2.54 mm pitch. Gold plated brass contacts for superior signal integrity. Right angle cable mount orientation for flexible cable management. Robust polybutylene terephthalate housing for shock and heat resistance.
Operation over a wide temperature range from -40°C to 105°C. Its design and rugged materials comply with industry standards, making it trusted for commercial and industrial electronic connectivity solutions. Explore more IDC Connectors and related components in EnvMart's Electronics Components category for tailored solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector supports a current rating of 3 amperes and operates at a voltage of up to 250 volts.
The contacts are made of brass with a gold plating thickness of 0.8 μm, while the housing is constructed from polybutylene terephthalate.
It operates effectively in environments ranging from -40°C to 105°C.
This model has 16 contacts arranged in 2 rows.
It utilizes Insulation Displacement Contact (IDC) termination for quick and reliable connections.
The connector is unshrouded, allowing for straightforward IDC termination.
The contact pitch for this IDC connector is 2.54 mm.
It is suitable for various electronic assemblies, power electronics, industrial automation, and telecommunications equipment.
This model features a male connector gender for cable termination.
The country of origin for this connector is China.
The gold plating ensures excellent conductivity and resistance against corrosion and wear over extensive use.
