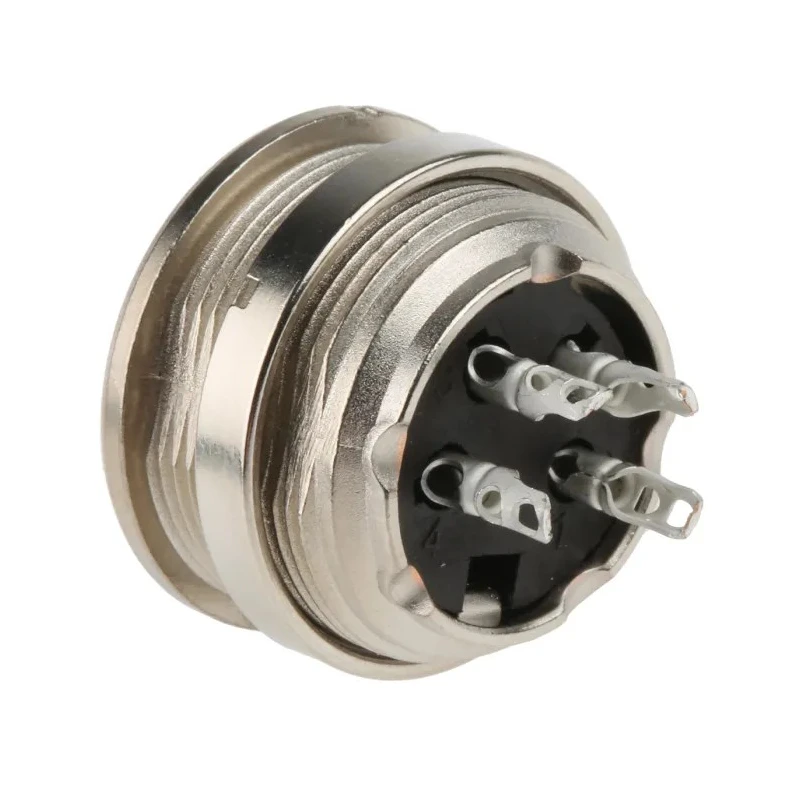

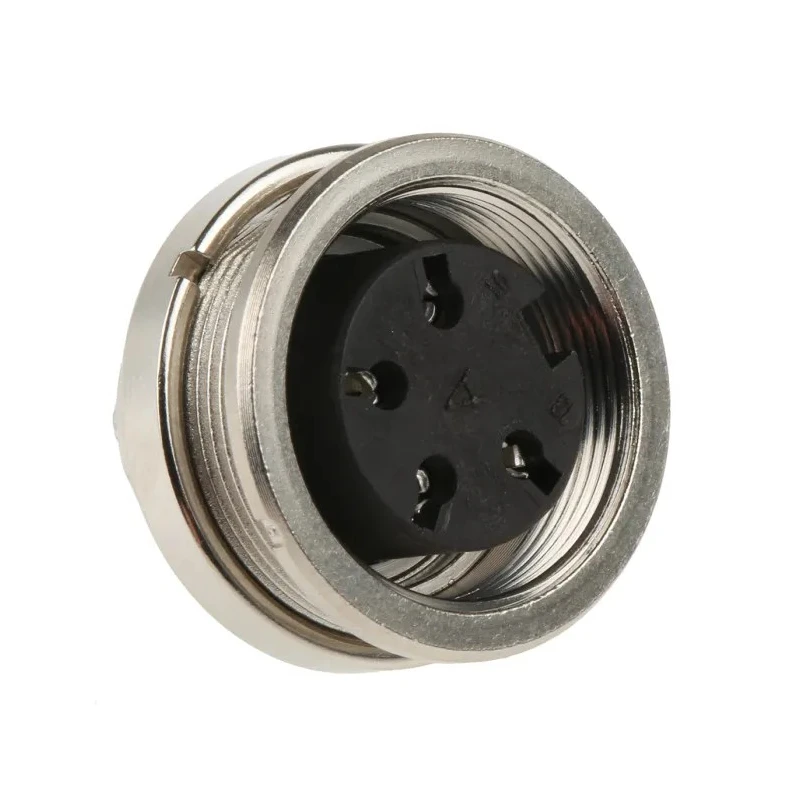

Amphenol Industrial signalmate C091 4 Pole Straight M16 DIN Socket 5A 300V IP40 Panel Mount T3303 000 RS

Amphenol Industrial T3303 000 RS is a high-quality signalmate C091 series 4 Pole Straight M16 DIN Socket designed for industrial and electronic applications. It features a robust panel mount design with screw-on mating type, suitable for secure electrical connections in control panels and machinery.

This connector supports a rated current of 5A and a voltage rating of 300V, protected by an IP40 rating to guard against ingress of solid objects above 1mm. It is constructed with a polymer and metal housing that ensures mechanical durability and environmental resistance.

The contacts are female, made of brass for excellent electrical performance and silver plated to enhance conductivity and protect against corrosion. The termination is solder-based, facilitating strong and stable connections in applications.

Operating temperature ranges from -40°C to 85°C, making it suitable for a wide range of industrial environments. The connector includes a metal locking ring with screw locking compliant with DIN EN 60130-9 / IEC 60130-9 standards and features internal metal strain relief. It is UL registered under file number E 63 093, offering assurance of safety and quality.

This product is manufactured in China and belongs to the signalmate C091 series, a trusted range for circular connectors used in industrial electronics, automation systems, machinery controls, and panel interfaces.

Applications include industrial control panels, machinery wiring, automation equipment, electronic instrumentation, and other commercial and industrial uses requiring reliable DIN type connectors.

Key features of this product include a 4-pole configuration, panel mount design, solder termination, silver plated brass contacts, high operating temperature range, and IP40 protection.

The connector has 4 contacts with female contact gender. It operates at a voltage of 300 volts and a current of 5 amperes. The socket is designed for panel mount installation with a straight orientation. Termination type is solder, suitable for reliable connections.

Operating temperature ranges from -40°C to 85°C, ensuring durability in varied environments. The housing is made of polymer and metal, providing robust protection. Contacts are brass with silver plating for improved conductivity and corrosion resistance.

The connector has an IP40 rating ensuring protection against solid objects larger than 1mm. It complies with no specific approvals but is UL registered under file number E 63 093. Made in China, this connector series is well suited for electronic and industrial applications.
