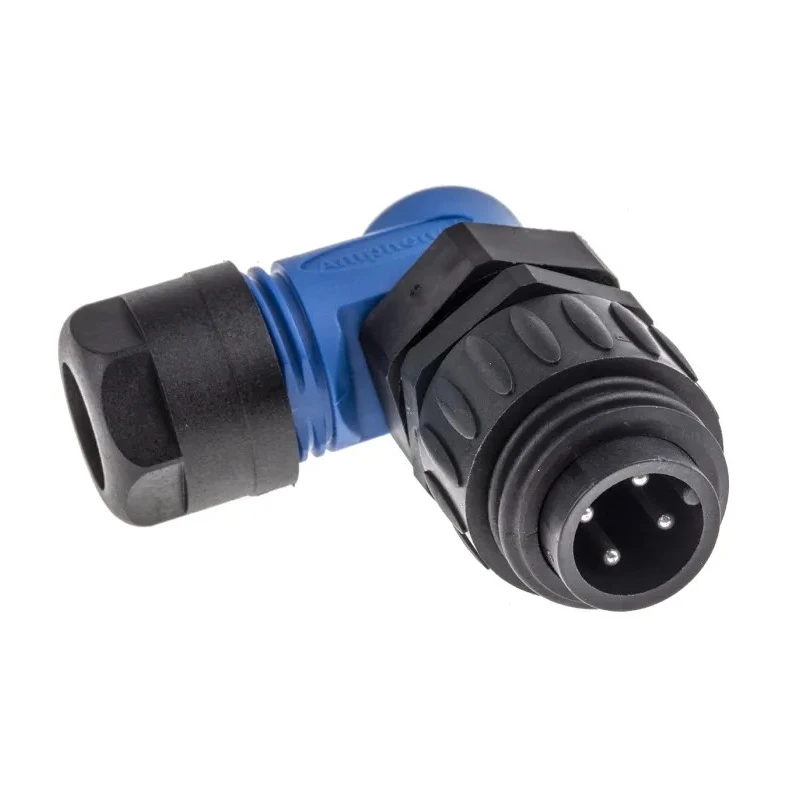

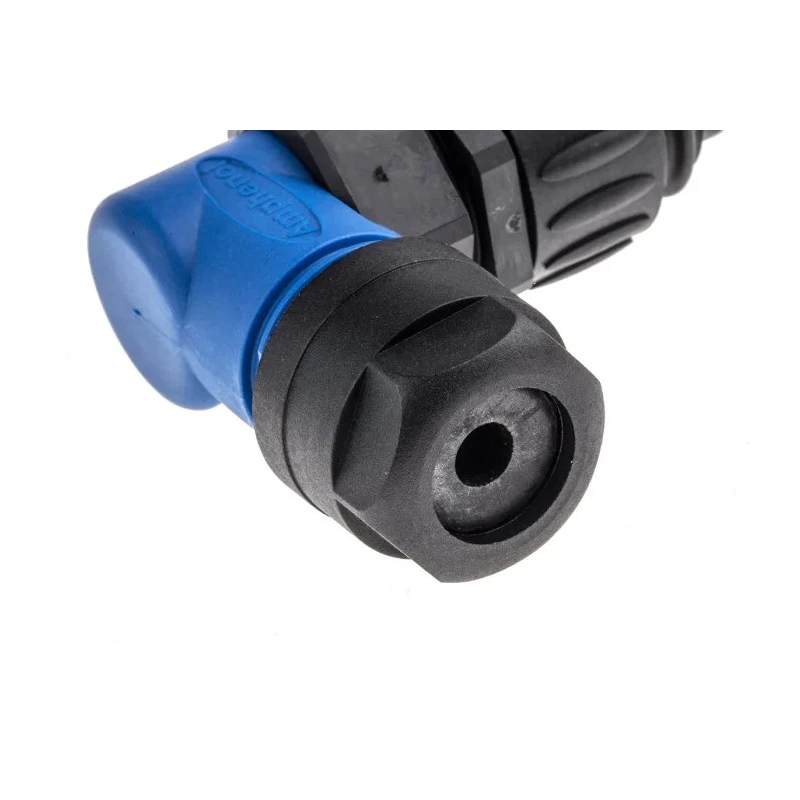

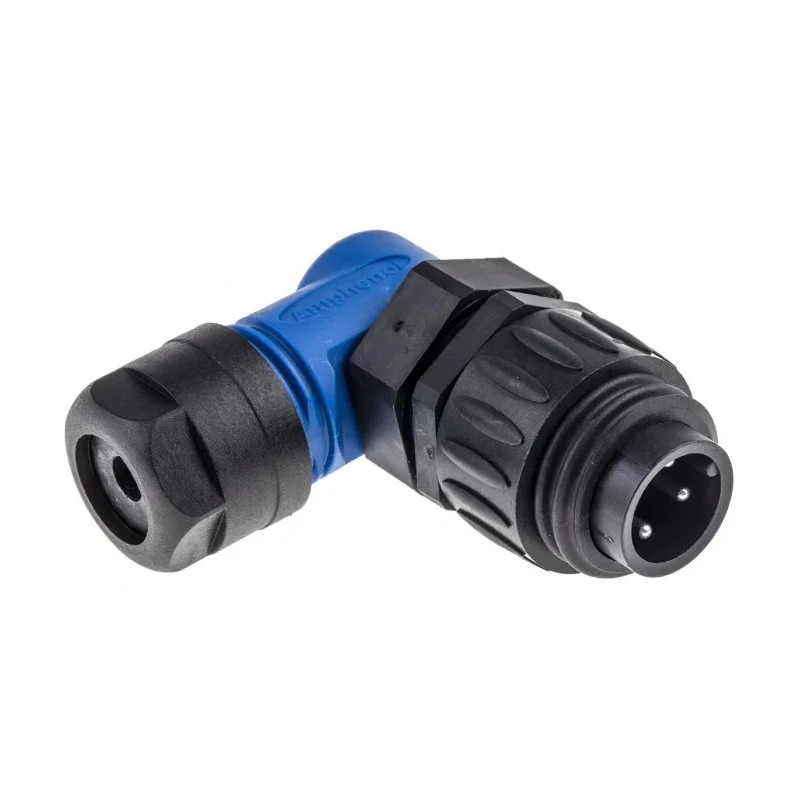

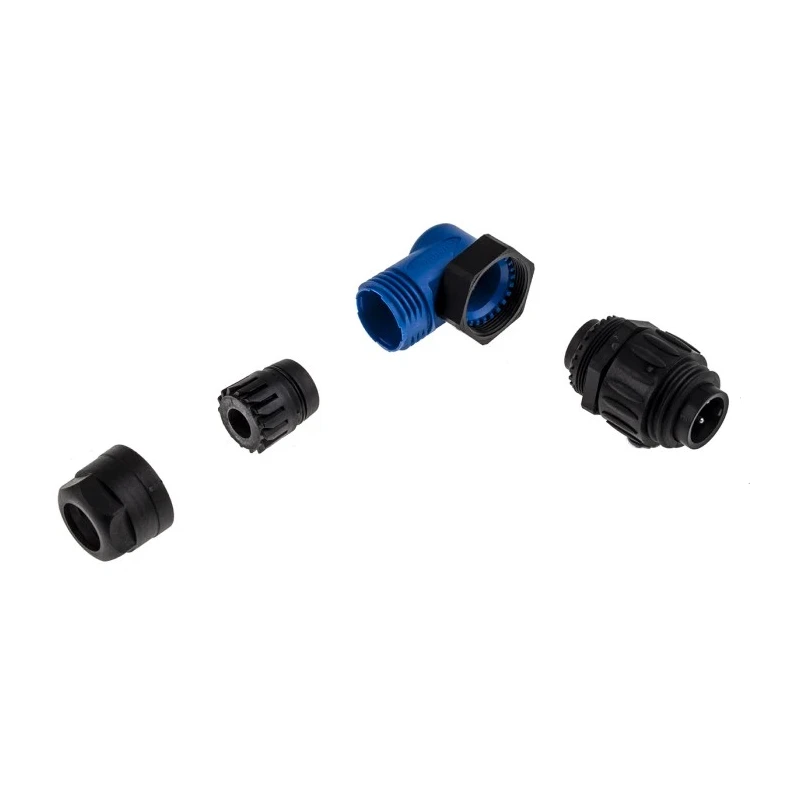

Amphenol Industrial Circular Connector 3 Contacts Plug Male Cable Mount Right Angle IP67 Ecomate M Series C01620K00310010
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 400.0V |
| Brand | Amphenol |
| Orientation | Right Angle |
| Current | 16A |
| Model | C01620K00310010 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Series | Ecomate M |
| Termination Type | Screw |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3+PE |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shell Size | 30 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- The connector supports a voltage rating of 400V and maximum current per contact of 16A.
- Durable polymer housing combined with copper alloy contacts plated in silver ensure corrosion resistance and industrial robustness.
- Designed for quick assembly with screw termination and bayonet mating type for secure connections.
- Operating temperature ranges from -40°C to 100°C allowing usage in diverse environmental conditions.
- Key features include keyed orientation, right angle body, and compliance with IEC standards for industrial applications.
- Compact shell size of 30 mm with pre-loaded ground contact enhances safety and reliability.
- Application areas include power supply technology, measuring and controlling systems, and general industrial use.
- Accessory caps are available to maintain IP rating when unmated.
Product Description
Amphenol C01620K00310010 circular connector from the Ecomate M Series is a robust industrial cable mount plug featuring 3+PE contacts configured as a male socket with screw type termination. Rated for 400V and 16A current per contact, this connector exhibits high-quality polymer housing and silver-plated copper alloy contacts ensuring longevity and reliable conductivity.
The design incorporates a secure screw lock and bayonet mating style combined with a compact 30 mm shell size, offering a right angle body orientation for flexible cable routing. Operating temperatures from -40°C to 100°C and an IP67 ingress protection rating make it suitable for harsh conditions found in industrial, power supply, and measurement control environments.
Key features include quick and easy assembly with robust and ergonomic construction, a pre-loaded ground contact to enhance electrical safety, and a clamping ring range adjustable between 6 mm and 12.5 mm to accommodate cable diameters. This connector is compliant with IEC standards IEC60664-1, IEC60512-5-2, IEC60512-3-1, and IEC60512-2-1 verifying its suitability for industrial applications.
Amphenol Industrial Circular Connectors are commonly used in demanding applications requiring durable and reliable connections such as factory automation, industrial machinery, and power distribution systems. Connector caps are optionally available to retain the IP67 rating when the connector is unmated, helping protect system integrity.
Voltage rating of 400V ensures compatibility with industrial power schemes. Maximum current rating of 16A per contact supports moderate power loads. Robust polymer housing and silver-plated contacts deliver durability and corrosion resistance.
Screw lock and bayonet mating guarantee secure, vibration-resistant connections. Operating temperature from -40°C to 100°C allowing broad environmental use. Right angled, cable mounted design for ease of installation in compact spaces.
Explore other high-quality circular connectors and industrial components available on EnvMart to support your manufacturing and electrical project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a voltage rating of 400V.
The maximum current per contact is 16A.
It features a screw type termination for secure connections.
This connector has an IP67 ingress protection rating, making it suitable for harsh environments.
The operating temperature ranges from -40°C to 100°C.
The shell size is 30 mm.
It has a polymer housing and silver-plated copper alloy contacts for durability and corrosion resistance.
This model features a right angle orientation for flexible cable routing.
It has a total of 3 contacts plus a protective earth (PE) contact.
It utilizes a bayonet mating style for secure and vibration-resistant connections.
This connector is suitable for applications in power supply technology, measuring and controlling systems, and general industrial use.
The connector is manufactured in the Czech Republic.
