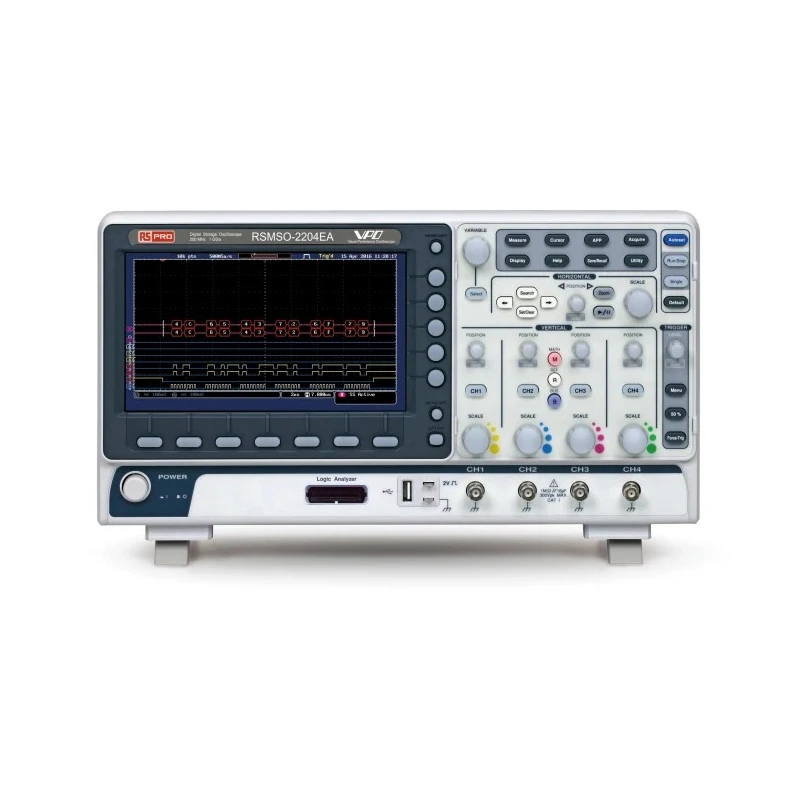

RS PRO 200 MHz Bench Mixed Signal Oscilloscope 16 Channels 8 in WVGA Display 10Mpts Memory Depth 180-4793

RS PRO 180-4793 is a high-performance bench mixed signal oscilloscope with 200 MHz bandwidth and 16 channels, designed for precise and efficient electronic signal testing and analysis. It features an 8-inch WVGA TFT LCD color display with 800x480 resolution, delivering clear and detailed waveform visuals essential for laboratory, industrial, and educational applications.

This mixed signal oscilloscope combines advanced features, including a 10Mpts memory depth and a waveform refresh rate of up to 120,000 waveforms per second, enabling users to capture and analyze fast transient events efficiently. The device supports a broad range of interface protocols such as CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB, making it versatile for various communication and automotive electronic testing scenarios.

It incorporates a built-in arbitrary waveform generator for signal simulation, supporting diverse test cases. The minimum time base of 1 ns/div and rise time of 1.75 ns provide excellent temporal resolution, while selectable memory depth enhances user control over data acquisition according to test requirements.

The oscilloscope's compact dimensions (208 mm height, 127.3 mm width and depth) and USB plug type facilitate convenient bench-top deployment and connectivity. Its features suit applications in circuit simulation, education, research laboratories, manufacturing testing, and automotive electronics diagnostics.

Key features include high channel count, extensive bandwidth, variety of interfaces, waveform search functionality with 29,000 segmented memory sections, and advanced filtering options such as high pass, low pass, and band pass filters. These contribute to an effective test solution for complex mixed-signal systems.

Provides 16 digital and analog channels for versatile mixed signal testing. Features 200 MHz bandwidth suitable for high frequency signal evaluation. Equipped with an 8-inch 800x480 TFT LCD color screen for clear waveform visualization.

Offers deep memory depth of 10 million points for detailed signal capture. Includes multiple interface types such as CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB. Waveform refresh rate up to 120,000 per second enables fast real-time analysis.

Minimum time base of 1 ns/div and rise time of 1.75 ns for high-resolution measurements. Built-in arbitrary waveform generator enhances test capabilities. Compact dimensions with 208 mm height, 127.3 mm width and depth for bench use.

This RS PRO model 180-4793 oscilloscope is an ideal instrument for electrical engineering test, research and development, quality control in manufacturing, automotive diagnostics, and educational laboratories. Its combination of powerful features, user-friendly interface, and reliable design make it a valuable asset for detailed waveform analysis and mixed signal measurement.

Explore the range of RS PRO Oscilloscopes and testing instruments on EnvMart for precision, reliability, and enhanced test capabilities in various industrial and laboratory settings.
